Advanced Parking Assist Alarm Sensor Replacement (Front)

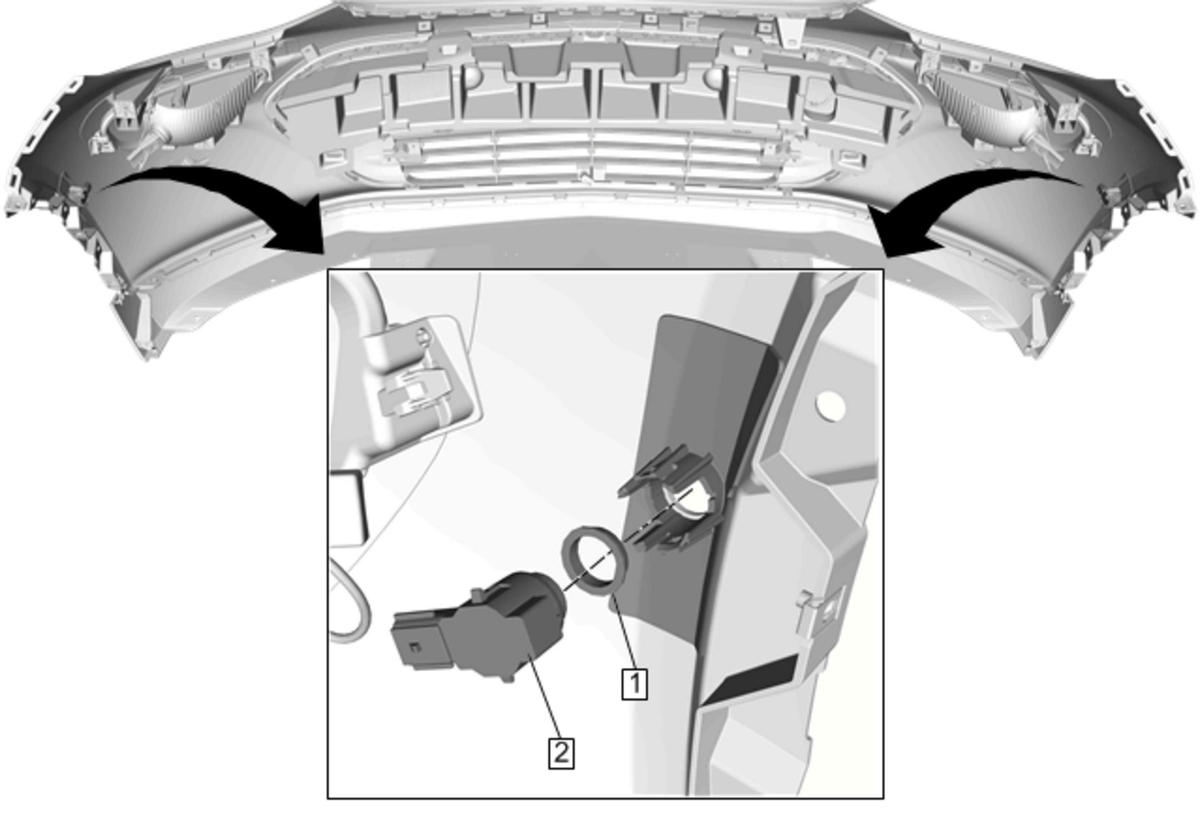

Fig 1: Advanced Parking Assist Alarm Sensor (Front)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Front Bumper Fascia. Refer to Front Bumper Fascia Replacement (North America)Front Bumper Fascia Replacement (Europe, Korea)
1	Advance Parking Assist Alarm Sensor Ring
2	Advance Parking Assist Alarm Sensor CAUTION: When painting the park assist sensors, DO NOT exceed a paint thickness of 80-120 micrometer. The overall thickness of the paint coat on the park assist sensors should be between 80-120 micrometer. If this paint thickness is exceeded, it may result in poor functioning of the parking assist sensors. Procedure Disconnect the electrical connector. Lift the locking tabs on the housing and remove the parking assist alarm sensor.

Callout

Component Name

Preliminary Procedure
Remove Front Bumper Fascia. Refer to Front Bumper Fascia Replacement (North America)Front Bumper Fascia Replacement (Europe, Korea)

Advance Parking Assist Alarm Sensor Ring

Advance Parking Assist Alarm Sensor

CAUTION:

When painting the park assist sensors, DO NOT exceed a paint thickness of 80-120 micrometer. The overall thickness of the paint coat on the park assist sensors should be between 80-120 micrometer. If this paint thickness is exceeded, it may result in poor functioning of the parking assist sensors.

Procedure

Disconnect the electrical connector.
Lift the locking tabs on the housing and remove the parking assist alarm sensor.
