Lane Keep Assist (UHX) and Forward Collision Alert (UEU) with (MBM)

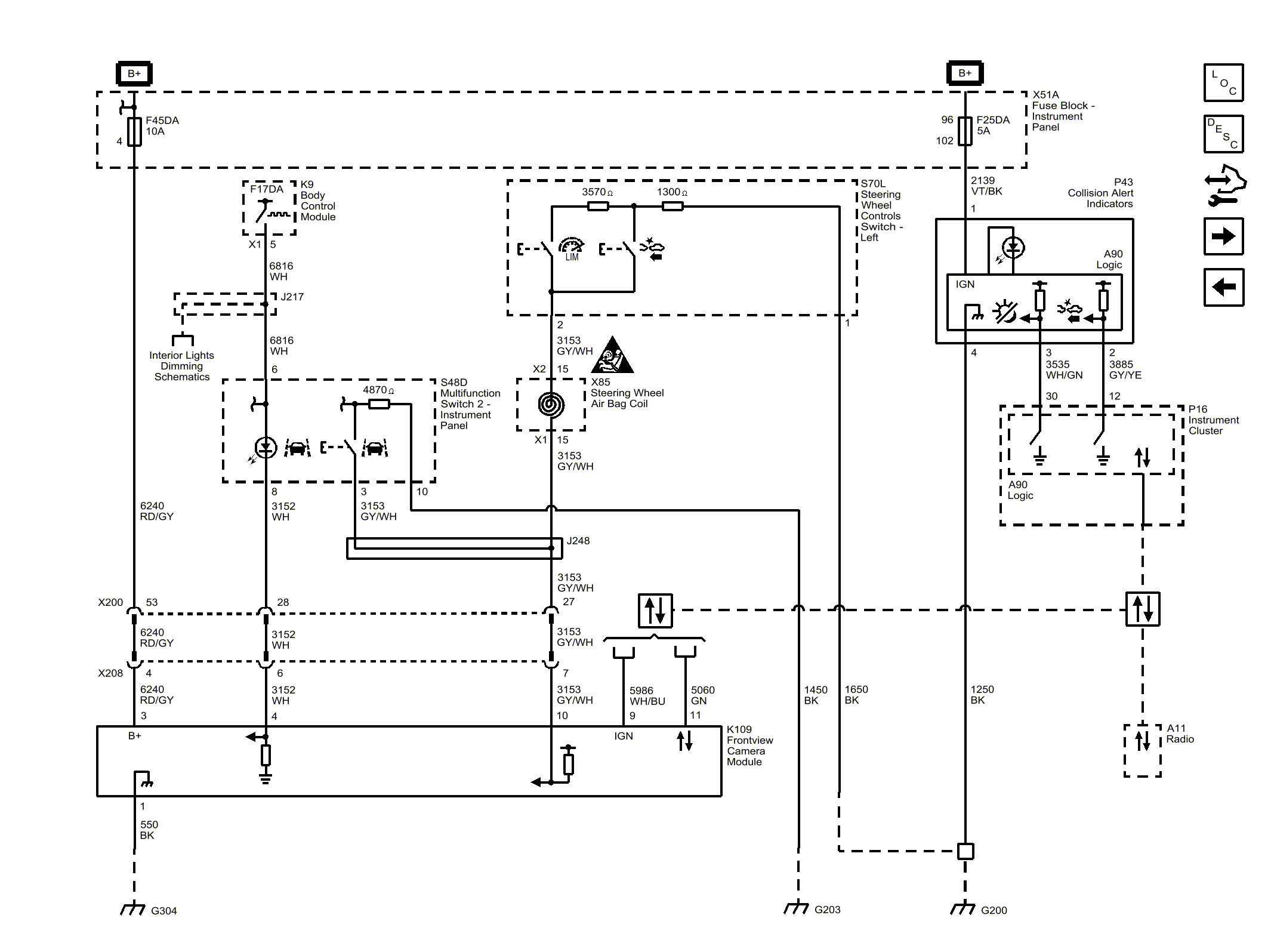

Fig 1: Lane Keep Assist (UHX) and Forward Collision Alert (UEU) with (MBM)

GM4564746

Courtesy of GENERAL MOTORS COMPANY
