Cruise Control Switch Replacement

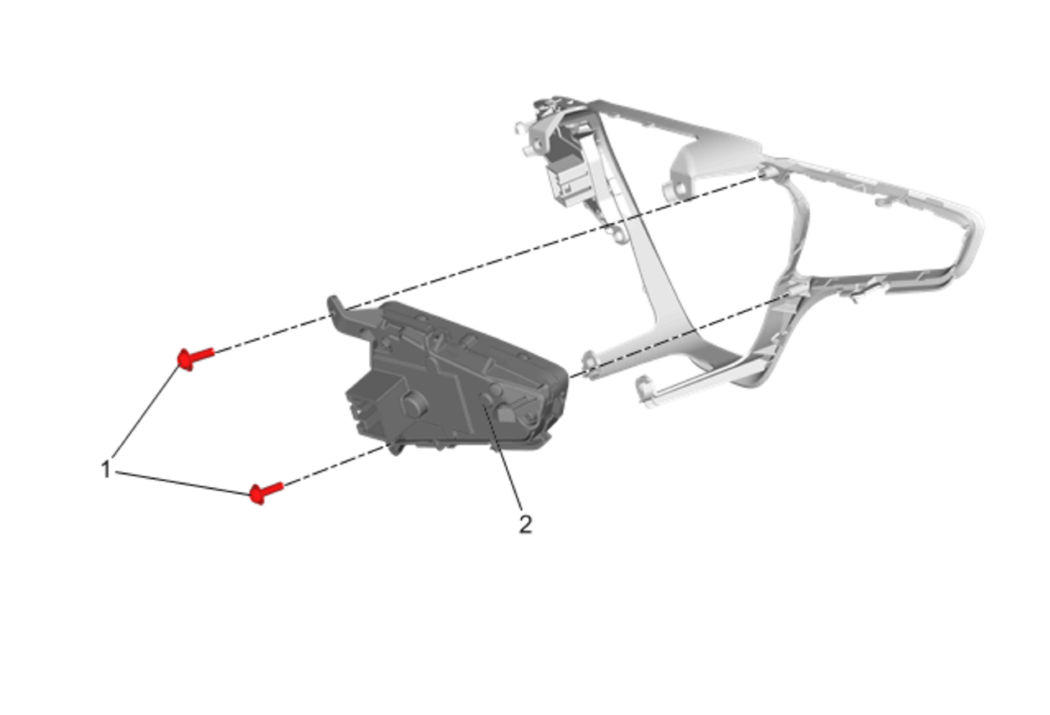

Fig 1: Cruise Control Switch
GM4548170Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Steering Wheel Spoke Cover Replacement
1 Steering Wheel Spoke Cover Fastener
CAUTION:

Refer to Fastener Caution .


Tighten
1.5 N.m (13 lb in)
2 Cruise Control Switch
Procedure
Remove the cruise control switch from the steering wheel spoke cover.
