Installation Procedure

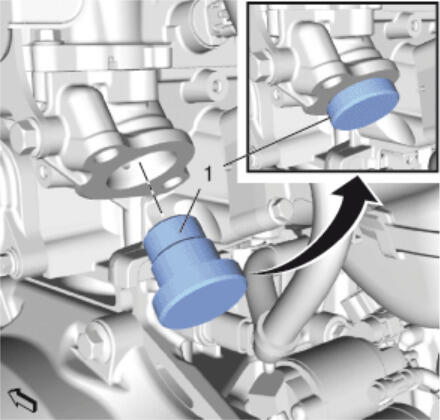

- Install the EN-51365 Gauge (1).
- Use EN-51365 Gauge and rotate the crankshaft until the special tool is flush with the cylinder head. This indicates the camshaft lobe is at base circle position.
- Remove the EN-51365 Gauge.
- Lubricate the valve lifter follower (1) with a bit engine oil.
- Install Valve Lifter Follower (1)
- Ensure that the guide pin on the follower is aligned with the groove in the fuel pump bore.
- Install a NEW Fuel Injection Pump Gasket (2).
- Install Fuel Injection Pump (3)
- Connect the electrical connector (5).
- Install and tighten Fuel Injection Pump Bolt (4, 6) to 25 N.m (18 lb ft)
- Install Engine Wiring Harness Bracket (1)
- Install and tighten Engine Wiring Harness Bracket Bolt (3) (Qty: 2) @ Engine Wiring Harness Bracket to 25 N.m (18 lb ft)
- Connect the electrical connector (2).
- Install Ground Cable (5)
- Install and tighten Bolt (4) to 10 N.m (89 lb in)
- Install Heater Outlet Hose (1)
- Install Heater Outlet Hose Clamp (2) using BO-38185 Pliers.
- Install Engine Wiring Harness (1) @ Engine Wiring Harness Bracket (2)
- Install Fuel Feed Front Pipe (2)
- Remove all EN-6015 plugs from the connections.
- Connect Fuel Feed Front Pipe (2) @ Fuel Injection Pump (1)
- Install a NEW fuel feed intermediate pipe (6).
- Hand tighten the fuel feed intermediate pipe nut (2) to the fuel injection rail (3).
- Hand tighten the fuel feed intermediate pipe nut (5) to the fuel injection pump (4).
- Tighten the 2 nuts (2, 5) to 30 N.m (22 lb ft).
- Install the fuel feed intermediate pipe bracket bolt (3) and tighten to 10 N.m (89 lb in).
- Install the air cleaner resonator bracket (2).
- Install the air cleaner resonator bracket bolt (1) and tighten to 9 N.m (80 lb in).
- Install Wiring Harness Clip (3)
- Install Air Inlet Grille Panel. Refer to Air Inlet Grille Panel Replacement
- Install Intake Manifold Cover. Refer to Intake Manifold Cover Replacement
- Install Air Cleaner Outlet Duct. Refer to Air Cleaner Outlet Duct Replacement
- Connect Battery Negative Cable. Refer to Battery Negative Cable Disconnection and Connection
- Fill the cooling system. Refer to Cooling System Draining and Filling
- When the replacement is completed, use a scan tool to perform the appropriate reset functions. Refer to Control Module References .
- Perform a fuel injection system leak test.
- Start the engine.
- Check the fuel system for leaks.
NOTE:
The camshaft must be in the base circle position before the high pressure fuel pump is installed.
CAUTION:
Alternately hand-tighten the fuel pump bolts one turn at a time until the pump is fully seated. Trying to draw down the pump without even side-to-side tightening may result in pump plunger damage.
CAUTION:
Refer to Fastener Caution
NOTE:
The Fuel Feed Intermediate Pipe must not be reused, otherwise leakage may occur.
WARNING:
Fuel escapes - observe safety measures and national legislation. Failure to comply could result in personal injury.
NOTE:
Ensure that all work at the engine is finished.
