Brake Pressure Modulator Valve Bracket Replacement

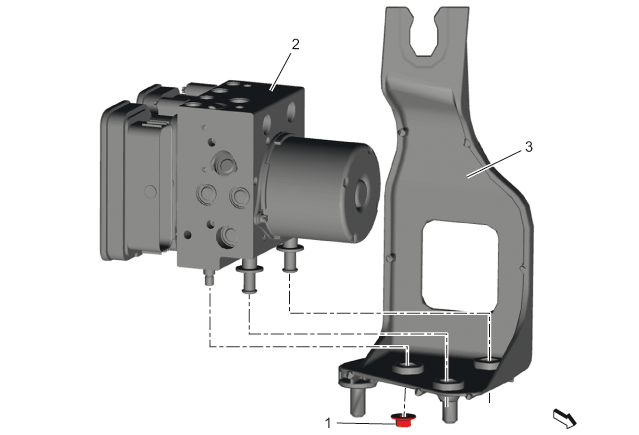

Fig 1: Brake Pressure Modulator Valve Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Refer to Electronic Brake Control Module with Brake Pressure Modulator Valve Replacement
1	Brake Pressure Modulator Valve Bracket Nut CAUTION: Refer to Fastener Caution Tighten  22 N.m (16 lb ft)
2	Electronic Brake Control Module with Brake Pressure Modulator Valve
3	Brake Pressure Modulator Valve Bracket
