Pedestrian Sound Alert Speaker Replacement

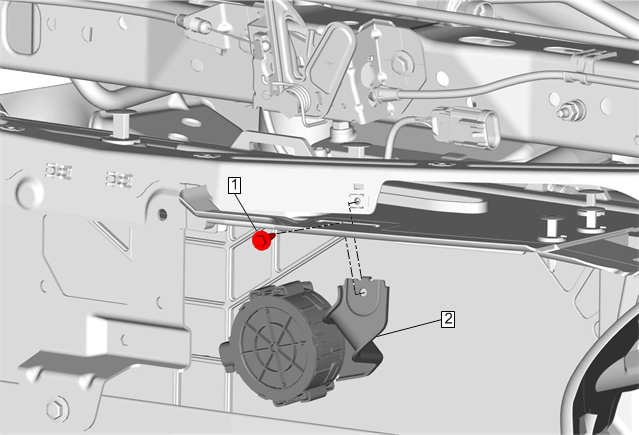

Fig 1: Pedestrian Sound Alert Speaker

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove Front Bumper Fascia. Refer to Front Bumper Fascia Removal and Installation
1	Pedestrian Sound Alert Speaker Bolt CAUTION: Refer to Fastener Caution . Tighten  2.5 N.m (22 lb in)
2	Pedestrian Sound Alert Speaker Procedure  Disconnect the electrical connector.
