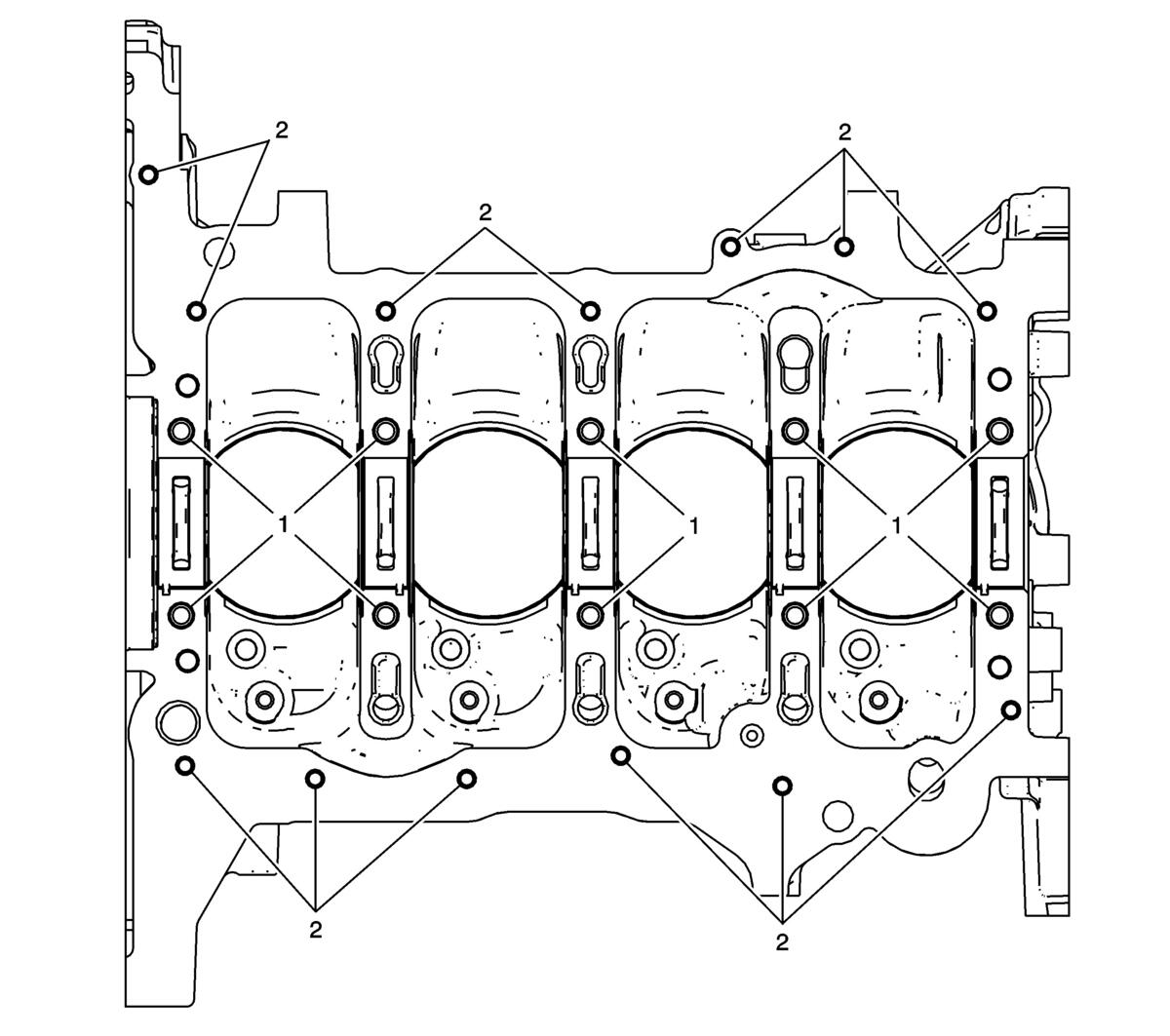

Engine Block - Bottom View
Courtesy of GENERAL MOTORS COMPANY Engine Block - Bottom View
| Service Call Out |
Thread Size |
Insert |
Drill |
Counterbore Tool |
Tap |
Driver |
Drill Depth (Maximum) |
Tap Depth (Maximum) |
| EN 42385-400 |
MM |
(IN) |
MM |
(IN) |
| 1 |
Not Serviceable |
| 2 |
M6x1.0 |
205 |
201 |
202 |
203 |
204 |
22.0 |
0.866 |
22.0 |
0.866 |
