3rd Row Seat Retractor Side Belt Replacement

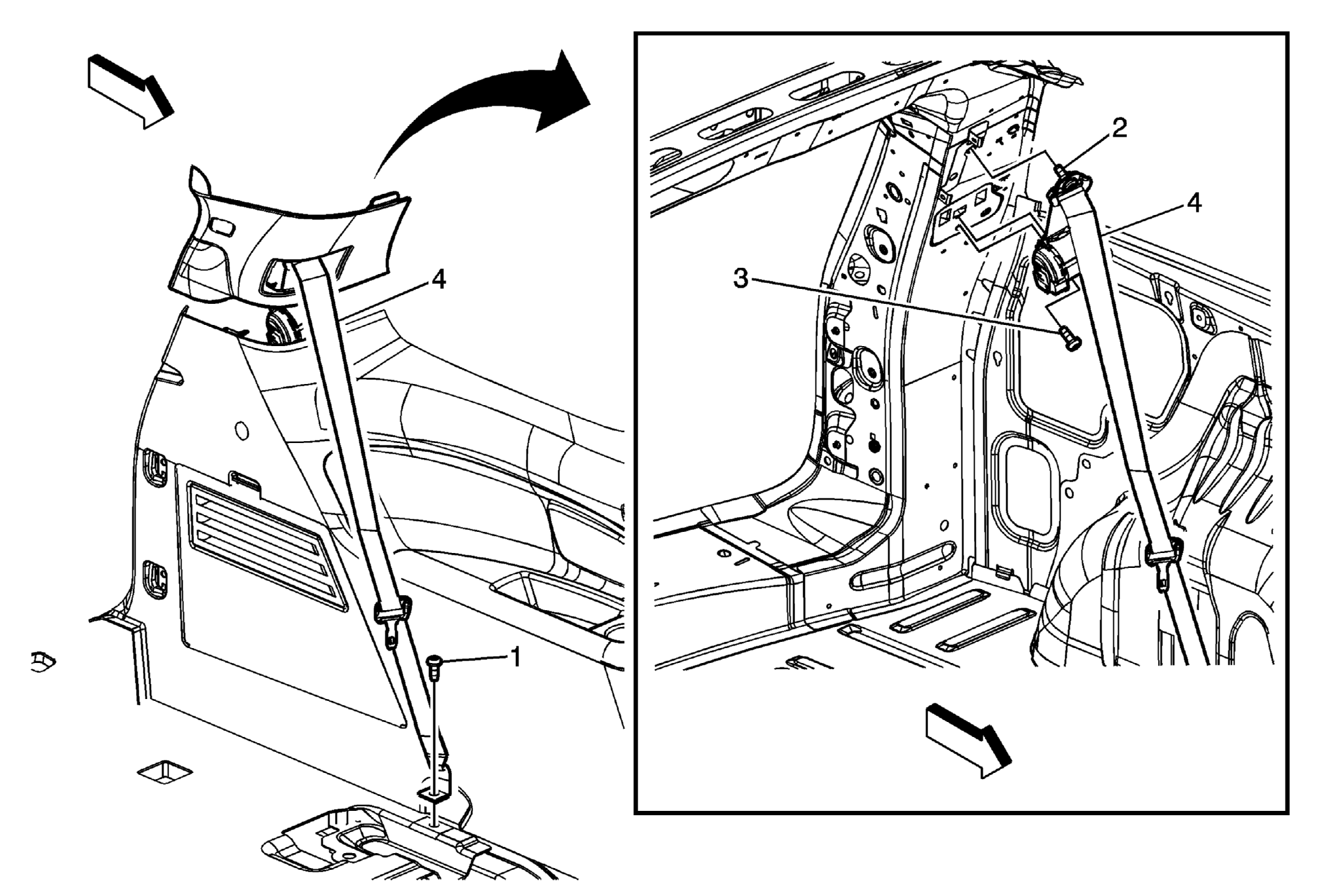

Fig 1: 3rd Row Seat Retractor Side Belt

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Disable the SIR system. Refer to SIR Disabling and Enabling . Remove the rear quarter upper trim panel. Refer to Quarter Upper Trim Panel Replacement (TB5)Quarter Upper Trim Panel Replacement (TB4) . Remove the rear quarter lower trim panel. Refer to Quarter Lower Rear Trim Panel Replacement (Traverse with TB5)Quarter Lower Rear Trim Panel Replacement (Traverse with TB4)Quarter Lower Rear Trim Panel Replacement (Enclave with TB5)Quarter Lower Rear Trim Panel Replacement (Enclave with TB4)Quarter Lower Rear Trim Panel Replacement (Acadia with TB5)Quarter Lower Rear Trim Panel Replacement (Acadia with TB4) .
1	Rear Seat Number 2 Shoulder Belt Anchor Bolt CAUTION: Refer to Fastener Caution . Tighten 45 N.m (33 lb ft)
2	Rear Seat Number 2 Shoulder Belt Guide Adjuster Bolt Tighten 45 N.m (33 lb ft)
3	Rear Seat Number 2 Shoulder Belt Retractor Bolt Tighten 45 N.m (33 lb ft)
4	Rear Seat Number 2 Shoulder Belt Retractor Assembly
