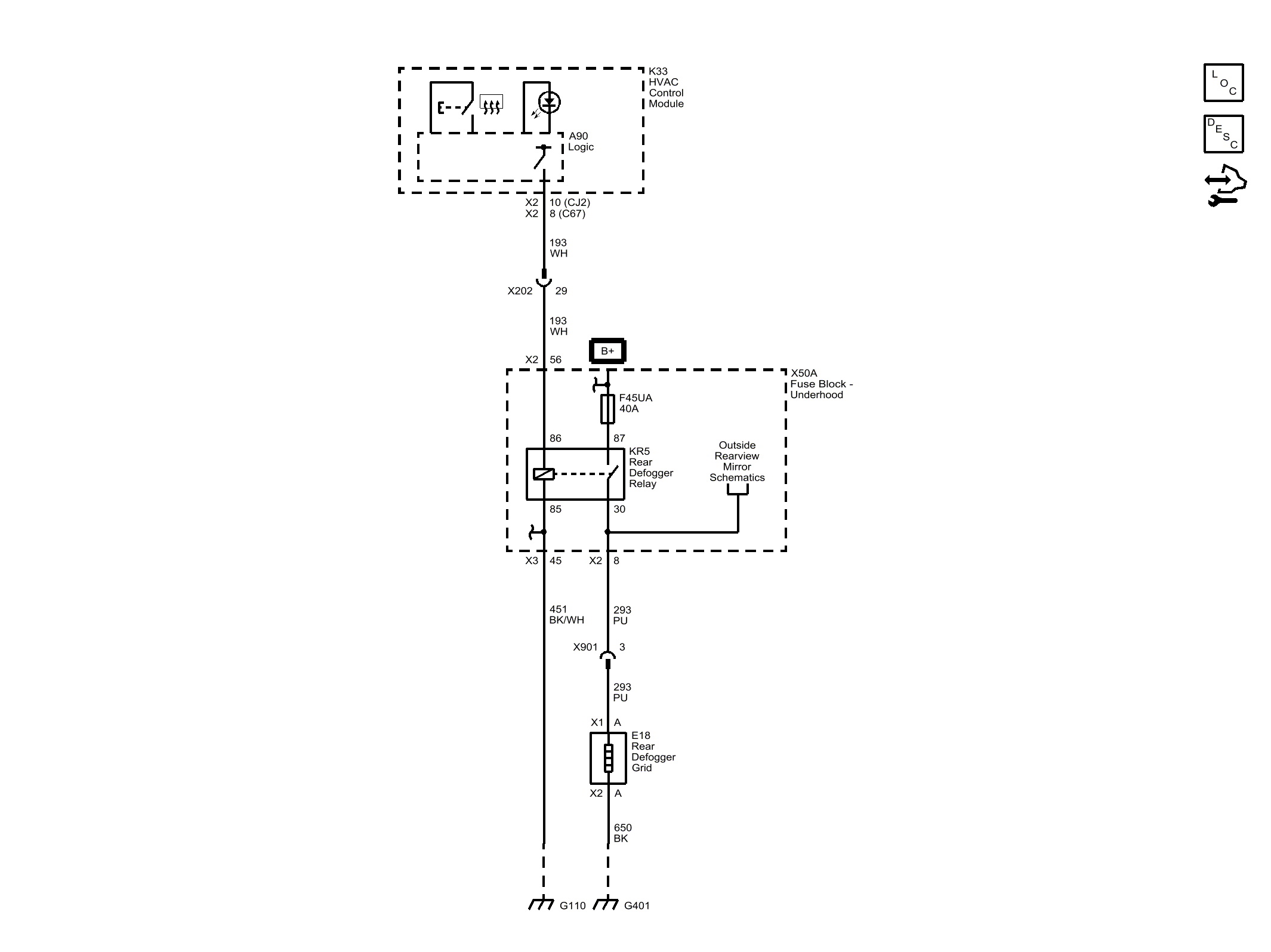

Home >> Chevrolet >> 2016 >> Traverse LS, FWD >> Repair and Diagnosis >> Body & Frame >> Windows >> Fixed And MOVEABLE Window System >> Schematic Wiring Diagrams >> Defogger Wiring Schematics >> Defogger
