Power, Ground, and References to Power Distribution and Power Moding

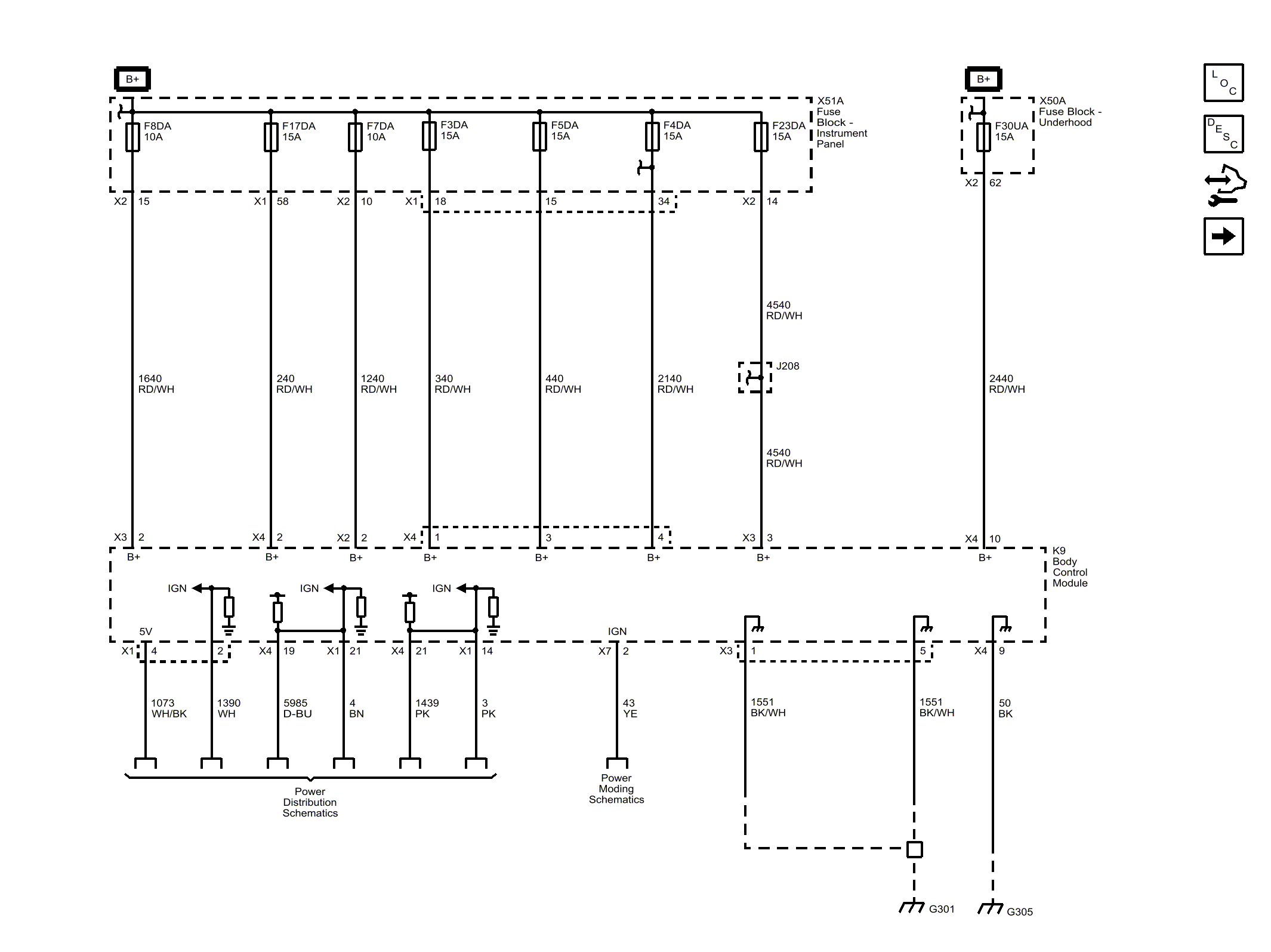

Fig 1: Power, Ground, and References to Power Distribution and Power Moding

GM4073987

Courtesy of GENERAL MOTORS COMPANY
