Compass Module and Driver Information Center Switch

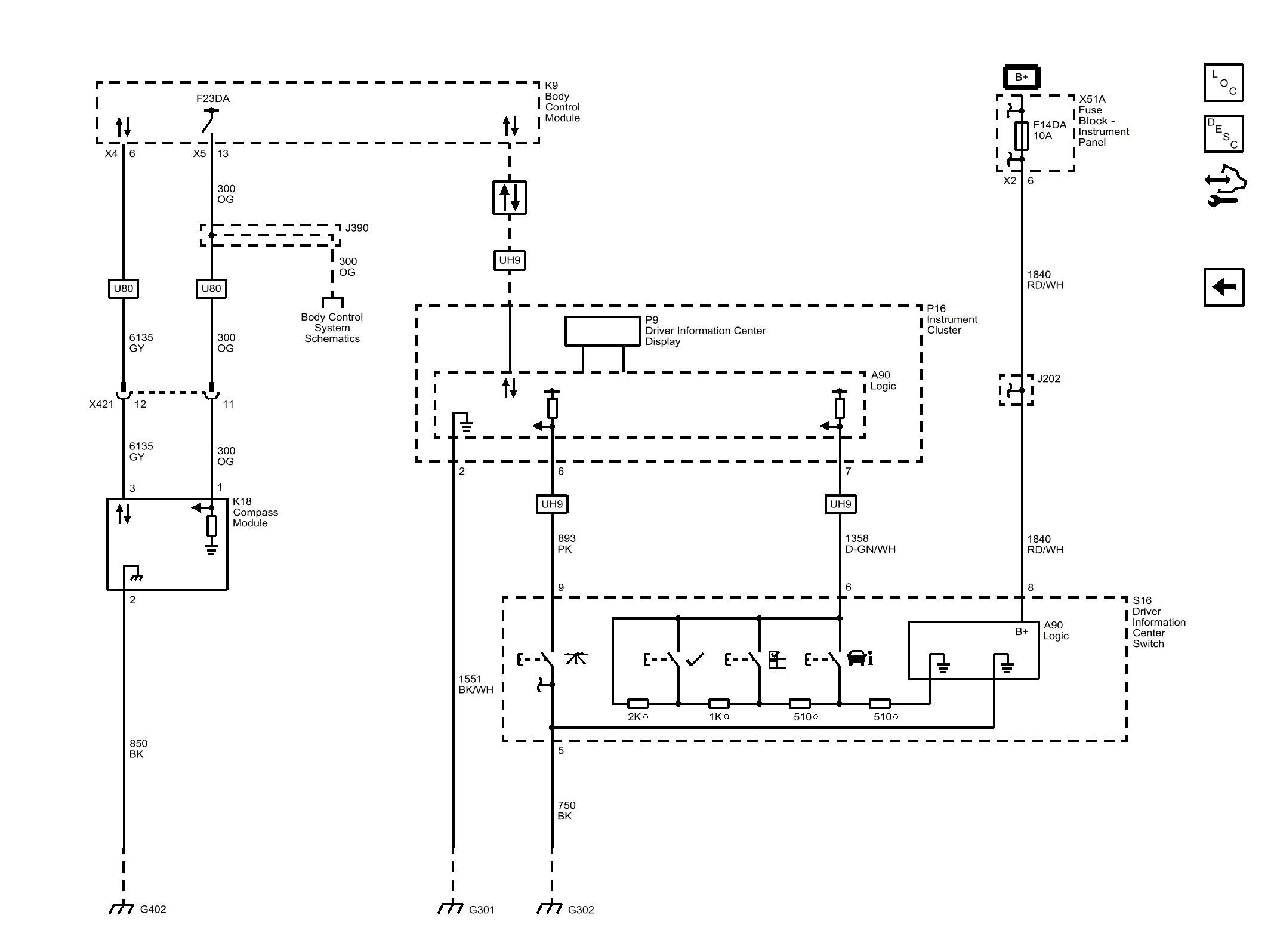

Fig 1: Compass Module and Driver Information Center Switch

GM4073779

Courtesy of GENERAL MOTORS COMPANY
