Lane Departure Warning and Forward Collision Alert (UVF)

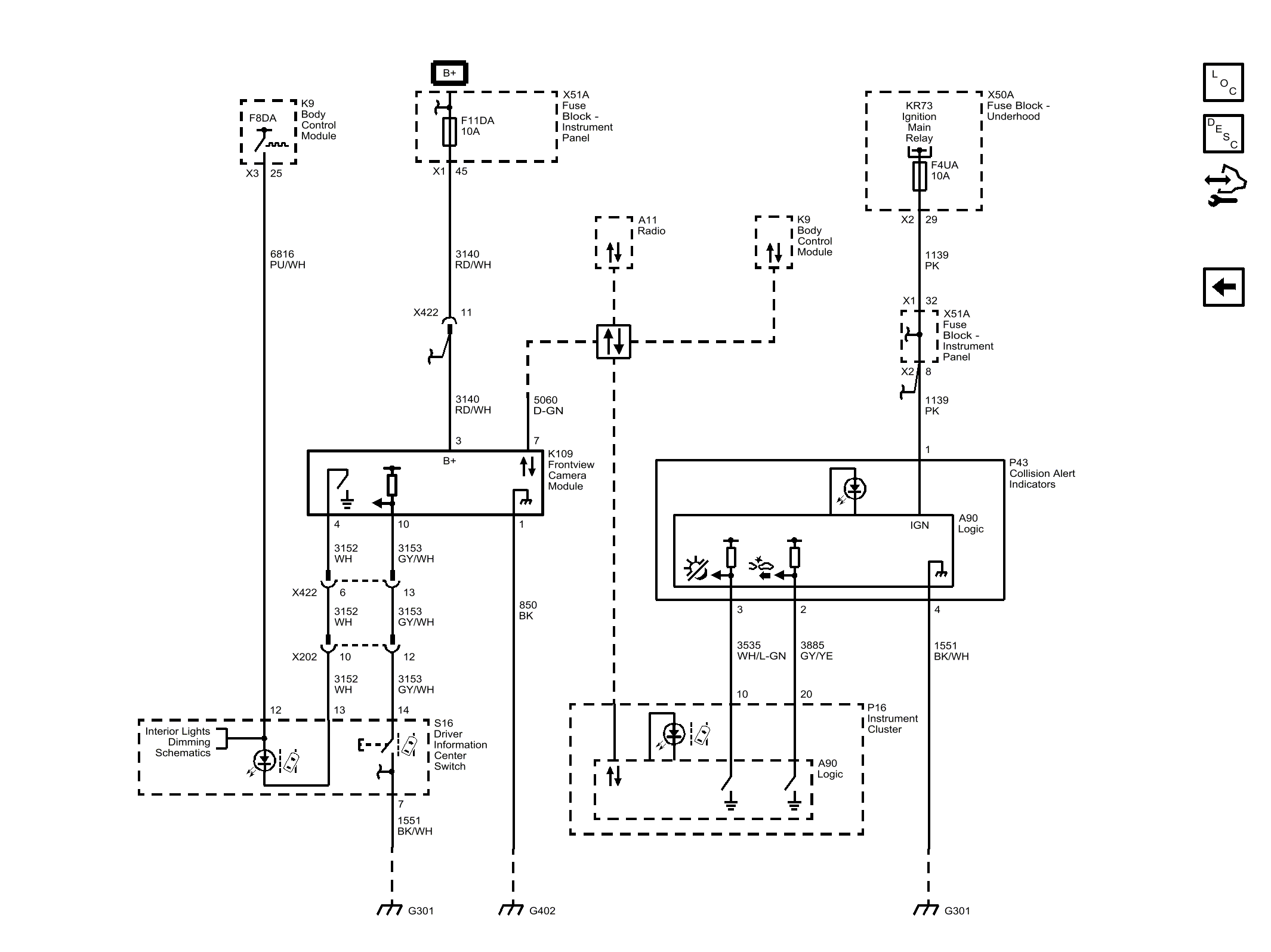

Fig 1: Lane Departure Warning and Forward Collision Alert (UVF)

GM4074166

Courtesy of GENERAL MOTORS COMPANY
