Module Power, Ground, Serial Data, Instrument Panel Switch, and Actuator (TB5)

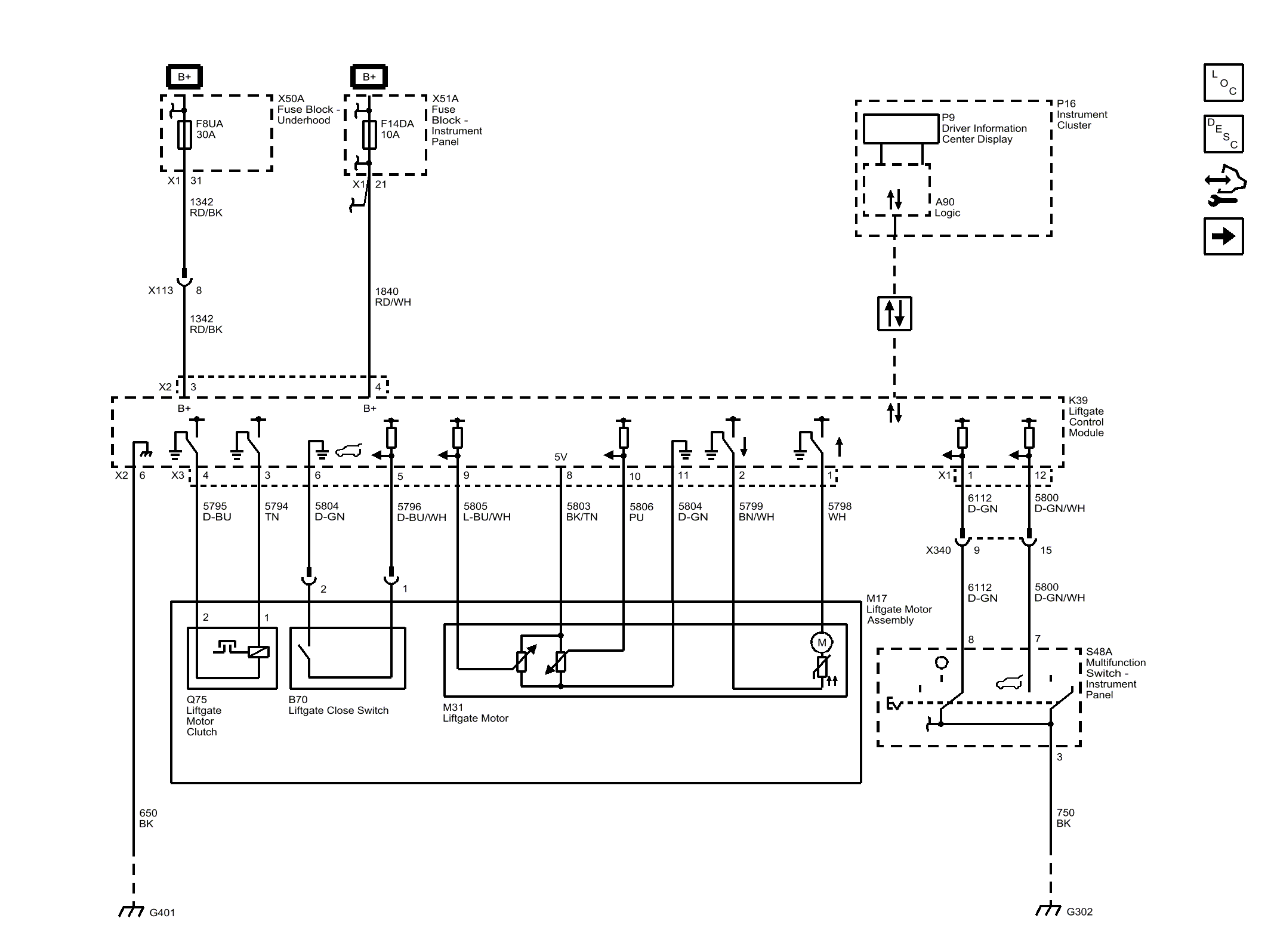

Fig 1: Module Power, Ground, Serial Data, Instrument Panel Switch, and Actuator (TB5)

GM4073734

Courtesy of GENERAL MOTORS COMPANY
