Comprehensive Safety - Camera and Front Long Range Radar (UGN+Z75)

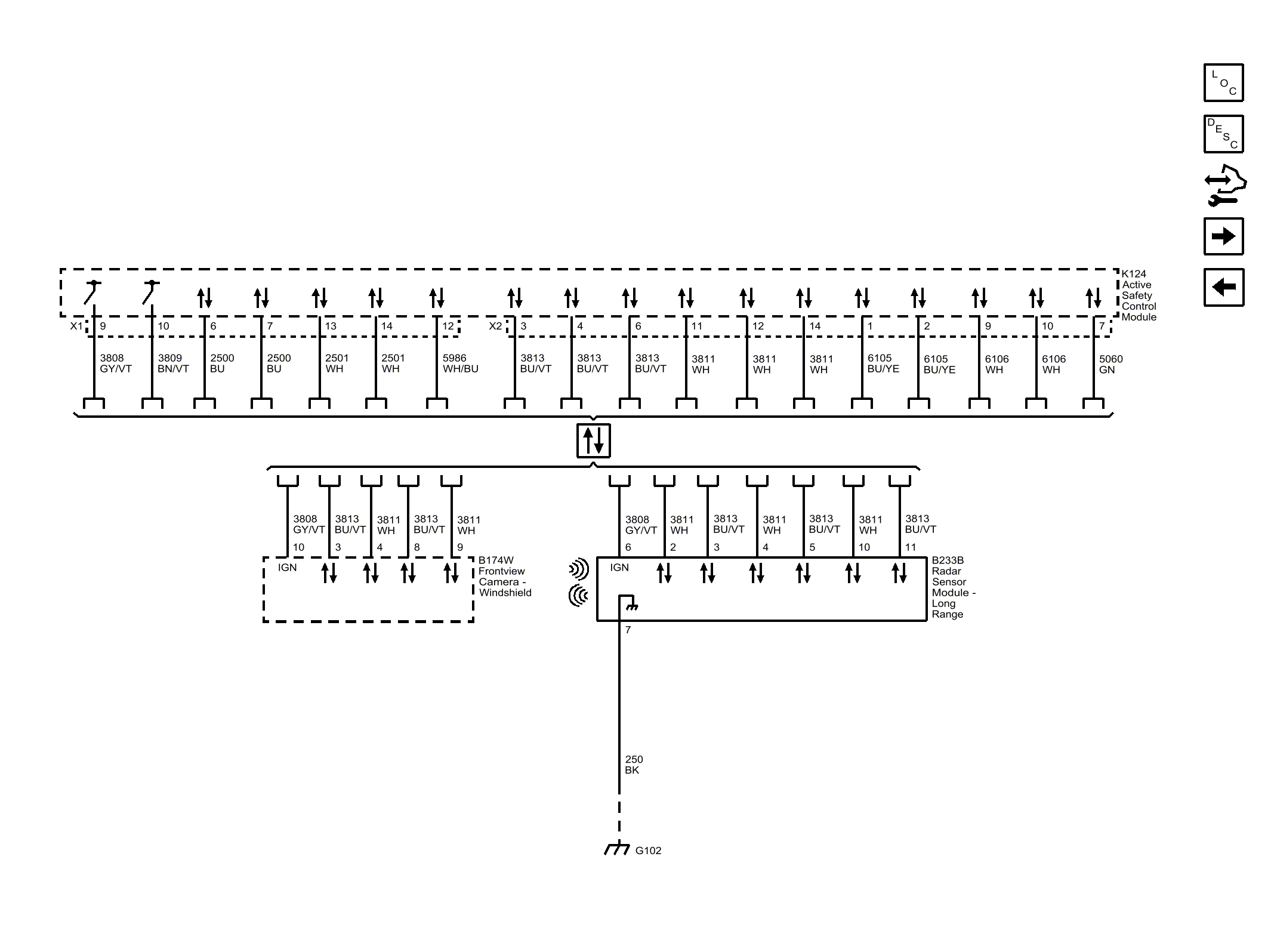

Fig 1: Comprehensive Safety - Camera and Front Long Range Radar (UGN+Z75)

GM4074122

Courtesy of GENERAL MOTORS COMPANY
