Radio Control Assembly Replacement (Cadillac)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 GMC Yukon XL, 2015 GMC Yukon, 2015 Chevrolet Tahoe, 2015 Chevrolet Suburban, and 2015 Cadillac Escalade ESV. However, it is still accessible from the selected car via links, so may be relevant.

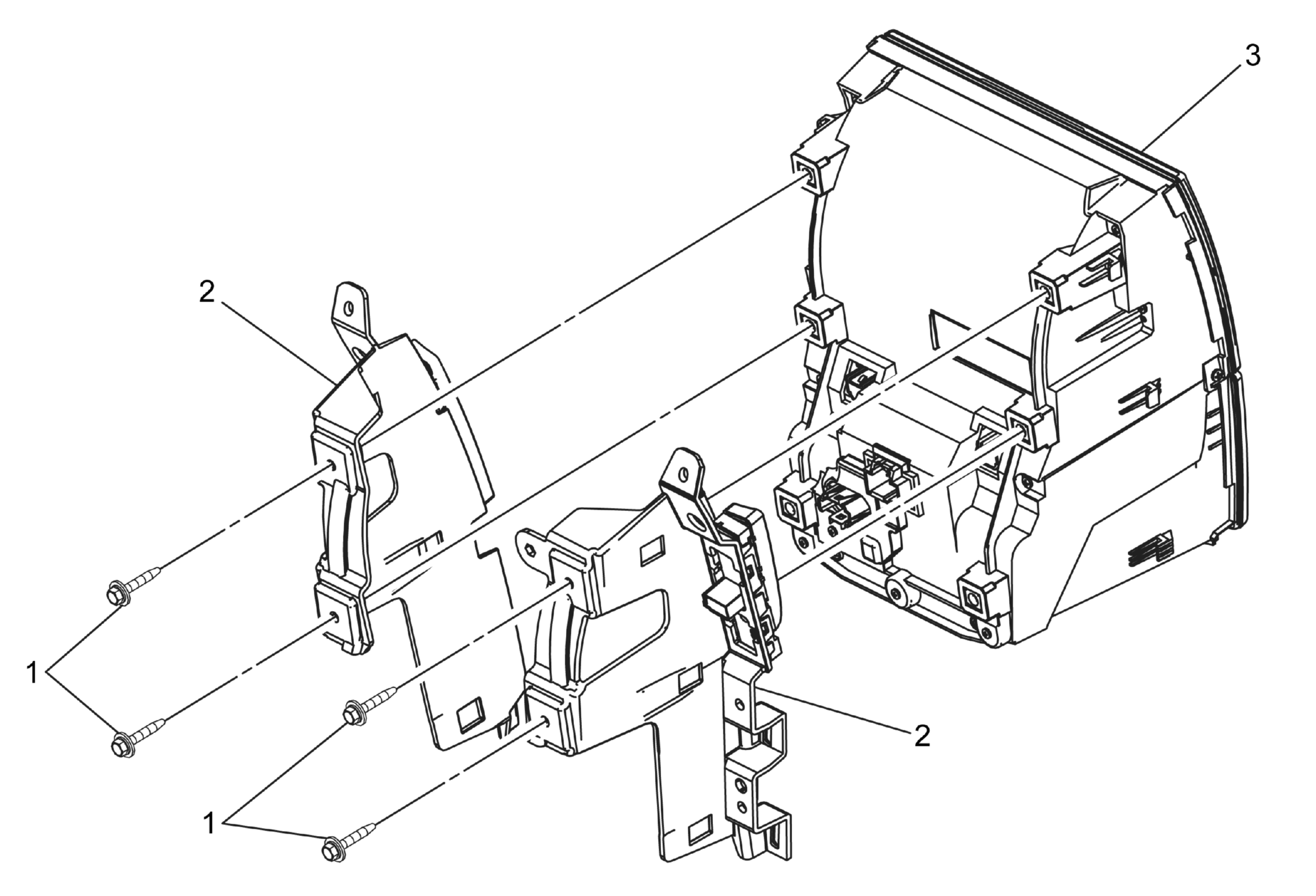

Fig 1: Radio Control Assembly (Cadillac)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the instrument panel upper trim panel bracket. Refer to Instrument Panel Upper Trim Panel Bracket Replacement (Cadillac) .
1	Radio Control Fasteners (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Instrument Panel Upper Trim Panel Bracket (Qty: 2)
3	Radio Control Assembly Procedure Remove the radio control from the bracket assembly. Refer to Control Module References for programming and setup information.
