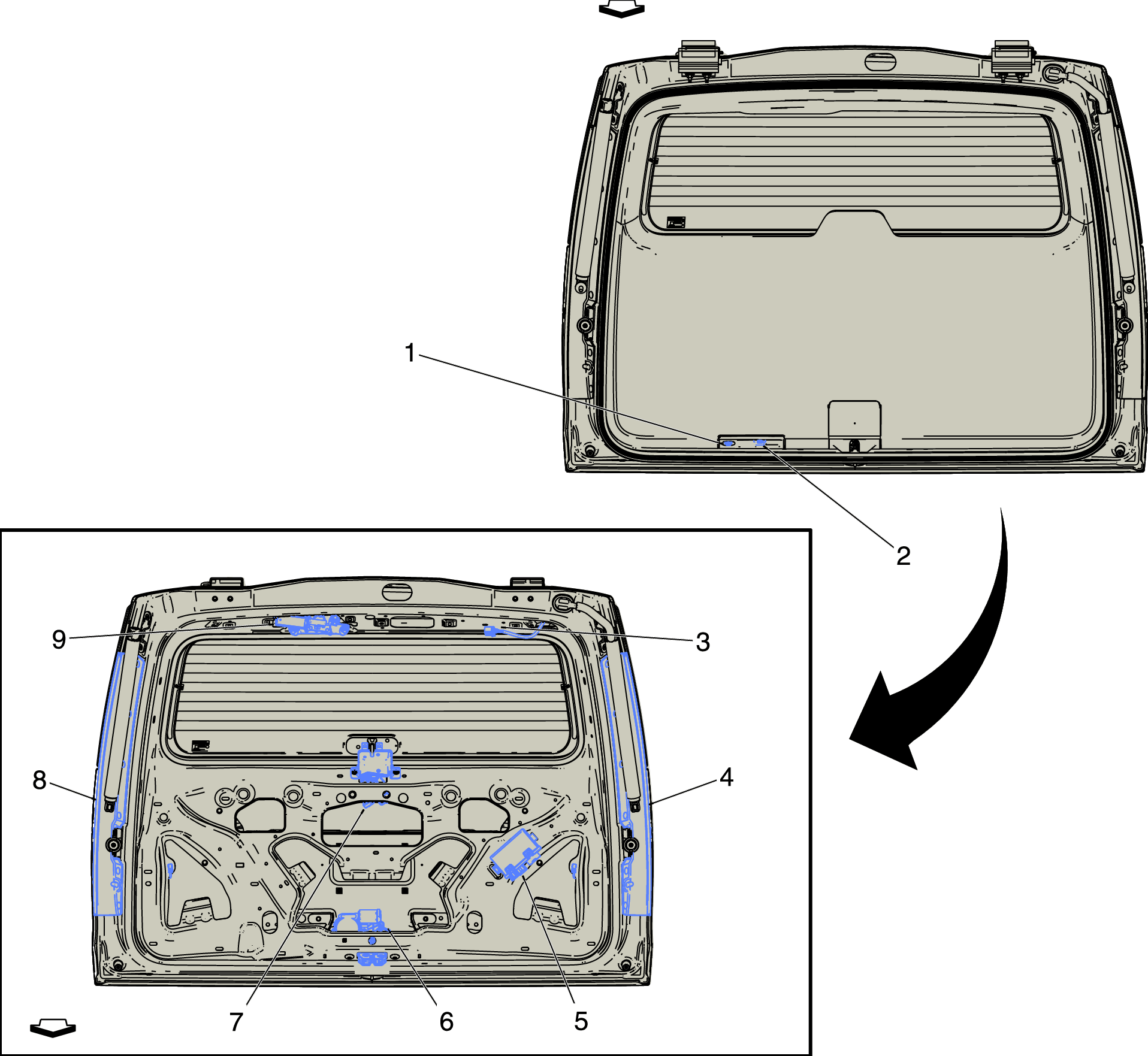

Liftgate Components
Liftgate Components
| Items |
|---|
| 1: S46 Liftgate Handle Switch (TB5 or TC2) S46 Liftgate Handle Switch (TB5/TC2) |
| 2: B70 Liftgate Close Switch (TB5 or TC2) B70 Liftgate Close Switch (TB5/TC2) |
| 3: M31 Liftgate Motor (TB5 or TC2) M31 Liftgate Motor (TB5/TC2) |
| 4: B71L Liftgate Object Sensor - Left (TB5 or TC2) B71L Liftgate Object Sensor - Left (TB5/TC2) |
| 5: K39 Liftgate Control Module (TB5 or TC2) K39 Liftgate Control Module X1 (TB5/TC2)K39 Liftgate Control Module X2 (TB5/TC2)K39 Liftgate Control Module X3 (TB5/TC2) |
| 6: A23C Liftgate Latch Assembly A23C Liftgate Latch Assembly (-TB5/TC2)A23C Liftgate Latch Assembly (TB5/TC2) |
| 7: M33 Liftgate Window Latch Assembly |
| 8: B71R Liftgate Object Sensor - Right (TB5 or TC2) B71R Liftgate Object Sensor - Right (TB5/TC2) |
| 9: M45 Rear Wiper Motor M45 Rear Wiper Motor |
