Generator Bracket Replacement

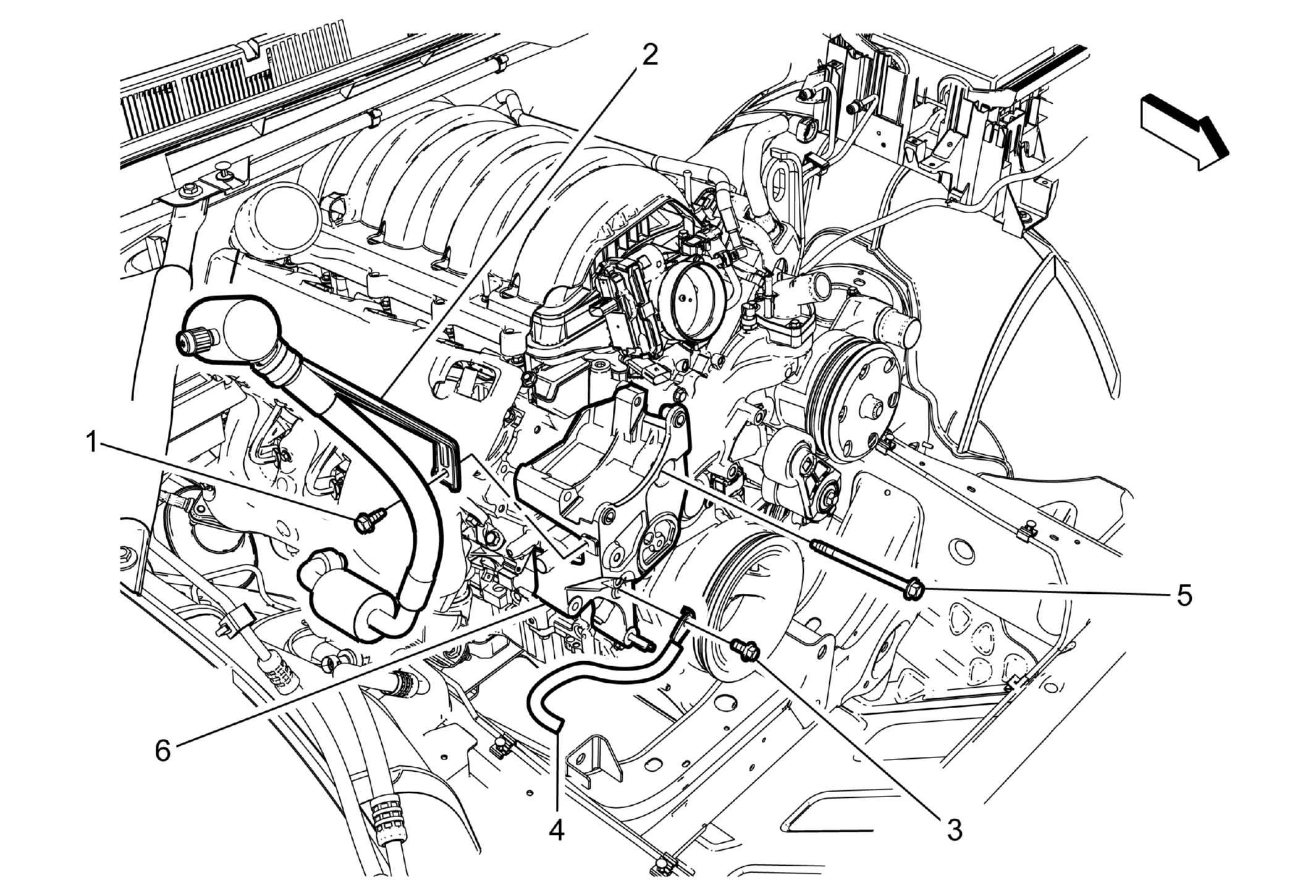

Fig 1: Generator Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the generator. Refer to Generator Replacement (L96) Generator Replacement (L83, L86) . Reposition the air conditioning compressor from the mounted position. Refer to Air Conditioning Compressor Replacement (L83 L86)Air Conditioning Compressor Replacement (L96) .
1	Air Conditioning Tube Bracket Fastener CAUTION: Refer to Fastener Caution . Tighten 22 N.m (16 lb ft)
2	Air Conditioning Tube Bracket
3	Generator Battery Control Wiring Harness Ground Cable Fastener Tighten 45 N.m (33 lb ft)
4	Generator Battery Control Wiring Harness Ground Cable
5	Generator Bracket Fastener Tighten 58 N.m (43 lb ft)
6	Generator Bracket
