Installation Procedure

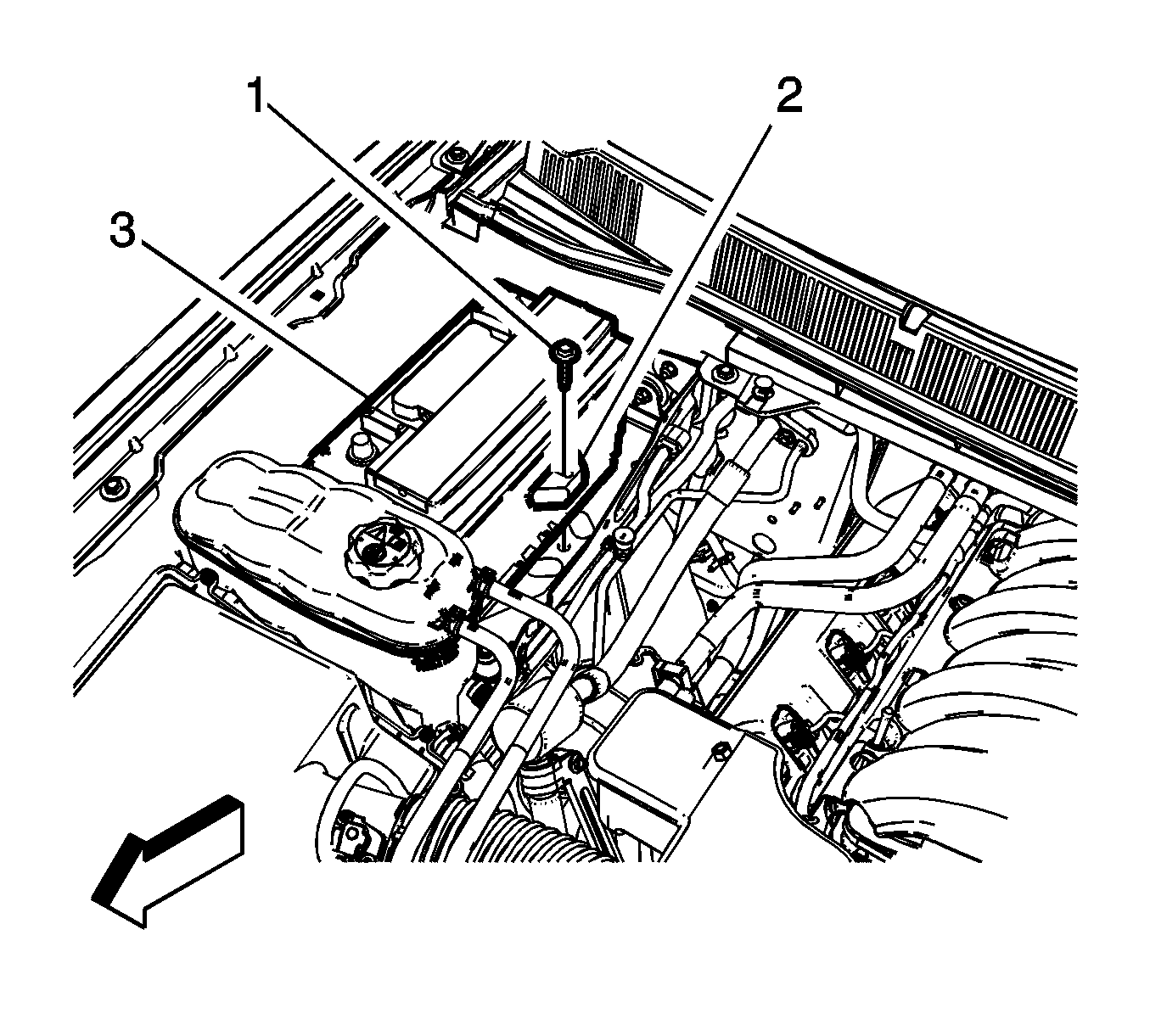

    Fig 1: Battery Retainer Fastener And Battery Retainer
    GM2964091Courtesy of GENERAL MOTORS COMPANY
  1. Install the battery (3) into position on the battery tray.
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the battery retainer (2) and tighten the fastener (1) to 25 N.m (18 lb ft).

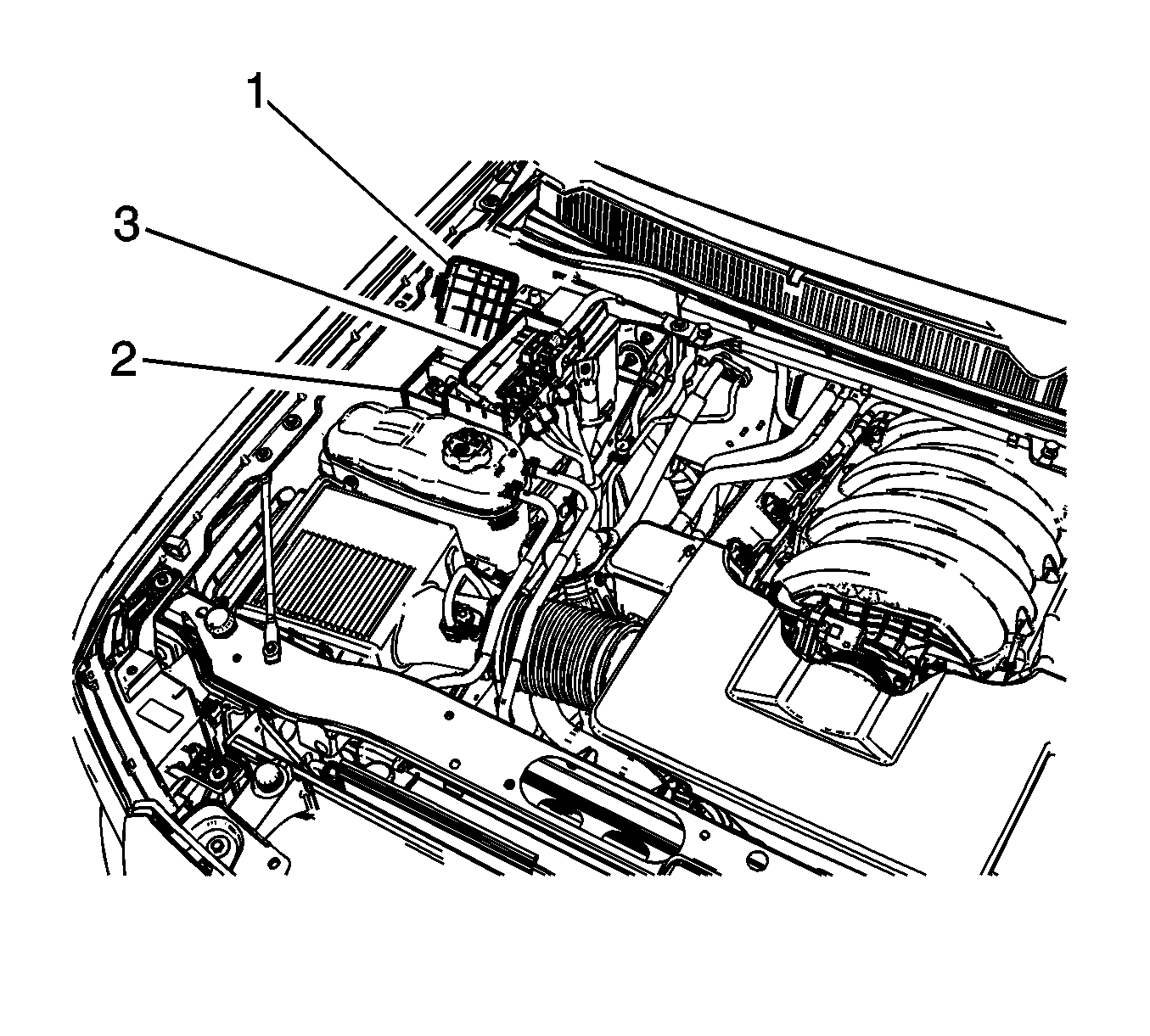

    3. Fig 2: Battery Positive Cable Clamp Cover And Loosen Battery Positive Cable Clamp Fastener
    GM2964092Courtesy of GENERAL MOTORS COMPANY
  3. Install the battery fuse block (3) to the battery positive post and tighten the fastener (2) to 7 N.m (62 lb in).
  4. Close the battery positive cable cover (1).
  5. Install the radiator surge tank. Refer to Radiator Surge Tank Replacement (L83 L86)Radiator Surge Tank Replacement (L96) .

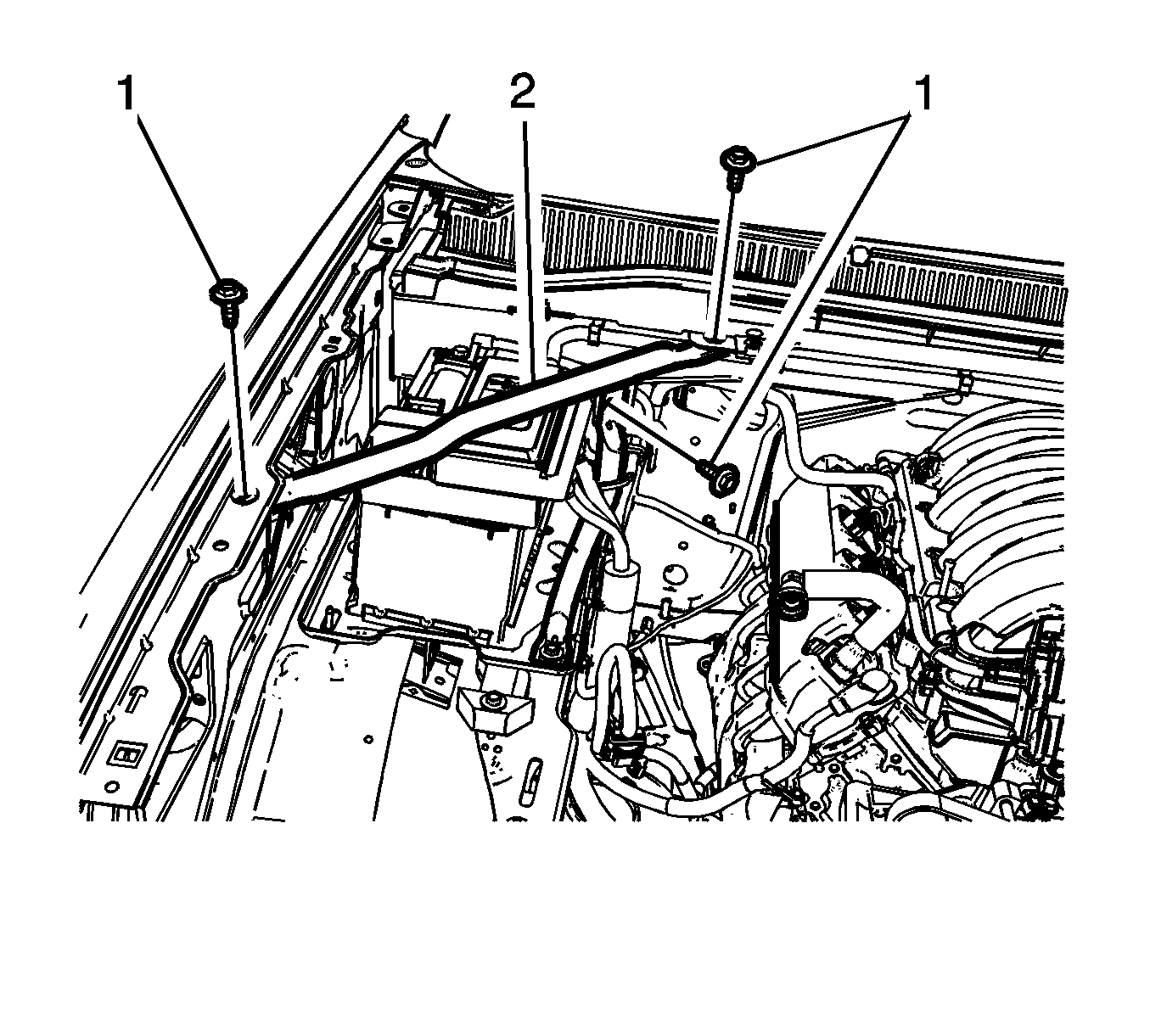

    6. Fig 3: Support Cross Brace Fasteners And Support Cross Brace
    GM2964358Courtesy of GENERAL MOTORS COMPANY
  6. Install the support cross brace (2) and tighten the fasteners (1) to 9 N.m (80 lb in).
  7. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection (Dual Battery) Battery Negative Cable Disconnection and Connection (Single Battery) .
