Installation Procedure

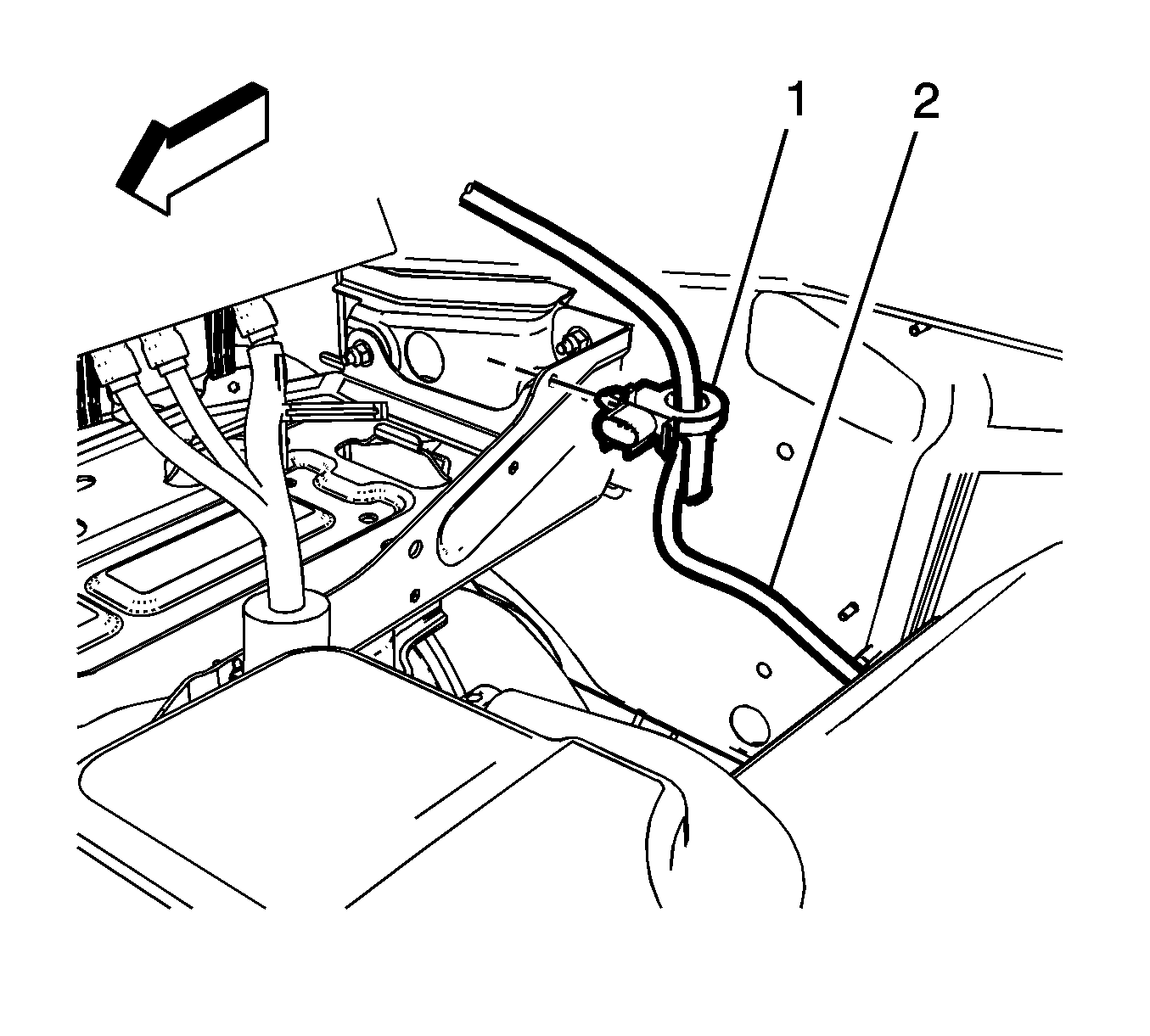

    Fig 1: Battery Current Sensor And Battery Tray
    GM2964360Courtesy of GENERAL MOTORS COMPANY
  1. Position the battery negative cable (2) into the engine compartment and attach the battery current sensor (1) to the battery tray.

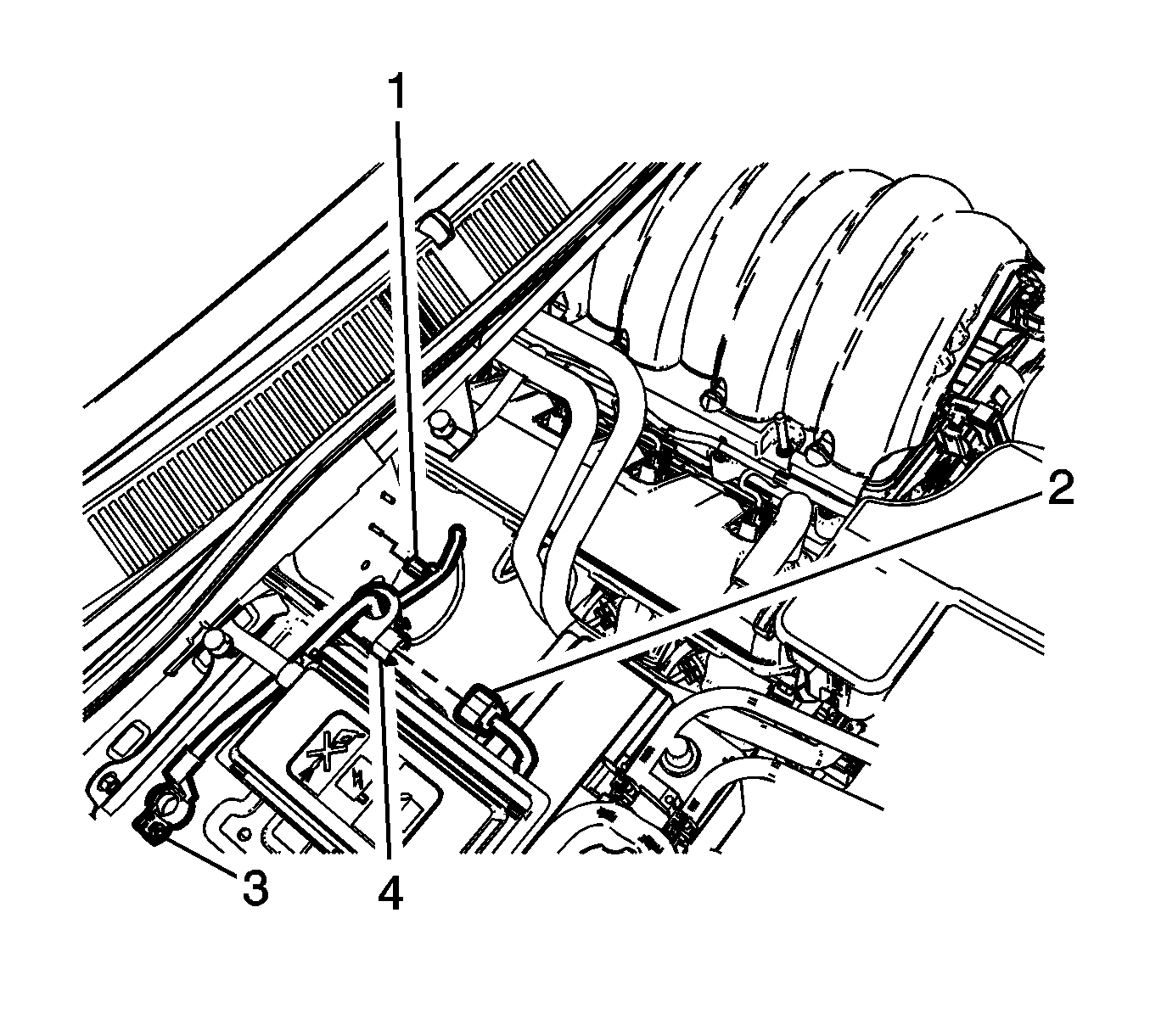

    2. Fig 2: Battery Negative Cable Retainer And Battery Current Sensor
    GM2964359Courtesy of GENERAL MOTORS COMPANY
  2. Connect the engine harness connector (2) to the battery current sensor (4) and attach the battery negative cable retainer (1) to the front plenum panel.

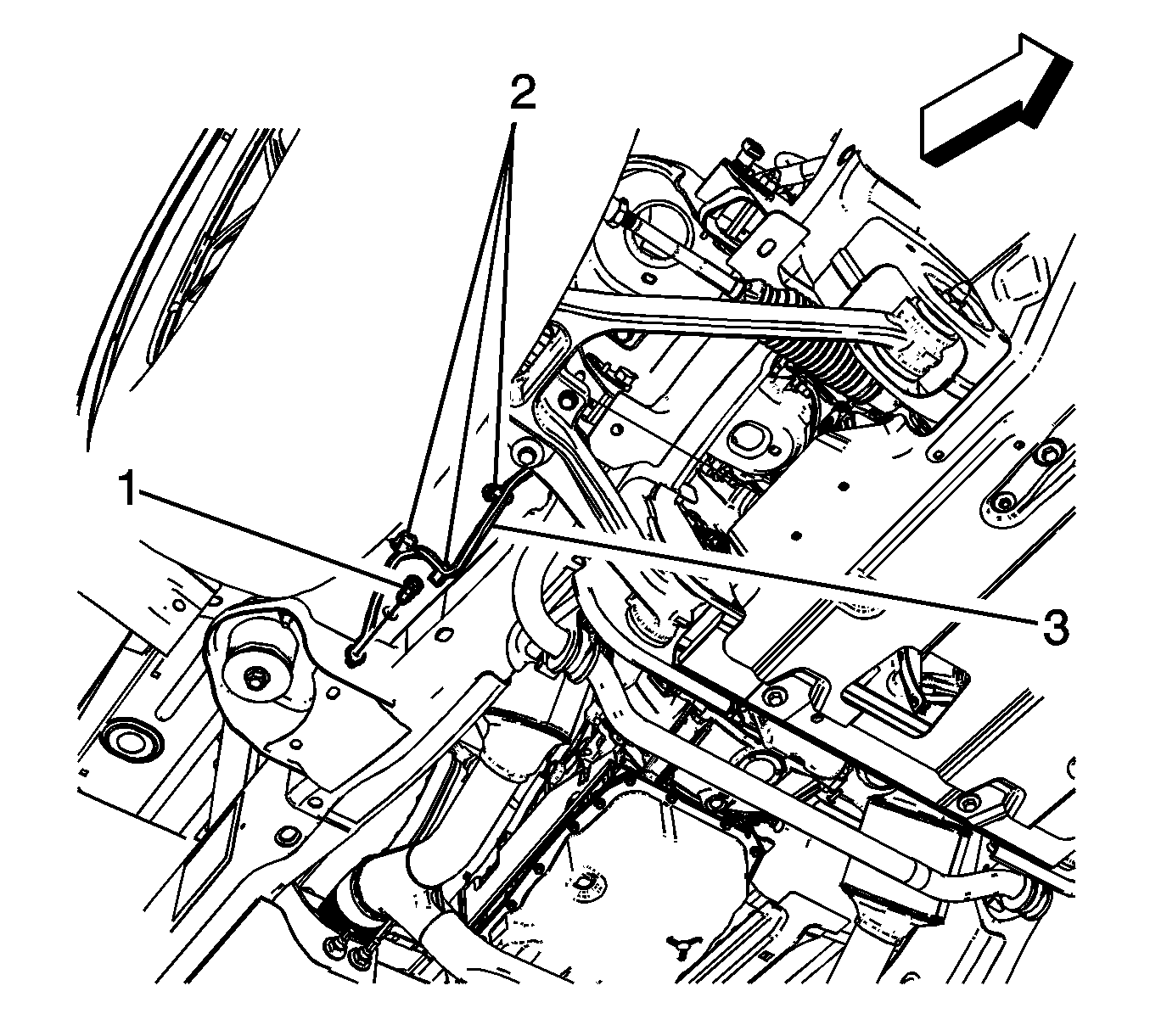

    3. Fig 3: Battery Negative Cable Ground Fastener And Detach Retainers
    GM3249496Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  3. Install the battery negative cable (3) to the right side body mount bracket and tighten the fastener (1) to 9 N.m (80 lb in).
  4. Attach the battery negative cable retainers (2) to the wheelhouse liner and front plenum panel.

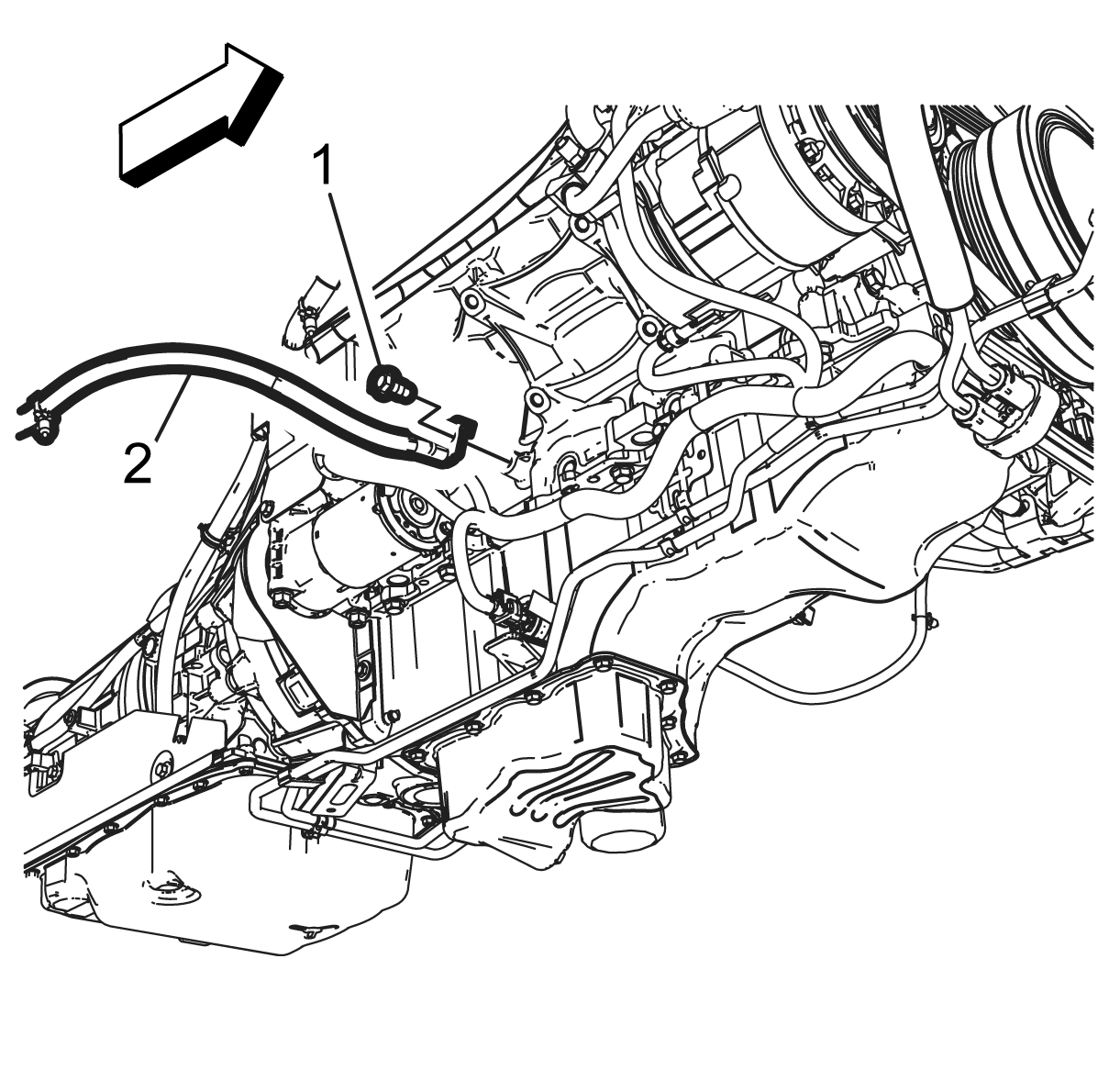

    5. Fig 4: Battery Negative Cable Engine Block Fastener
    GM3637047Courtesy of GENERAL MOTORS COMPANY
  5. Install the negative battery cable (2) to the engine block and tighten the fastener (1) to 22 N.m (16 lb ft).
  6. Attach the harness retainer to the engine block.
  7. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection (Dual Battery) Battery Negative Cable Disconnection and Connection (Single Battery) .
