Liftgate Side Sensor Replacement

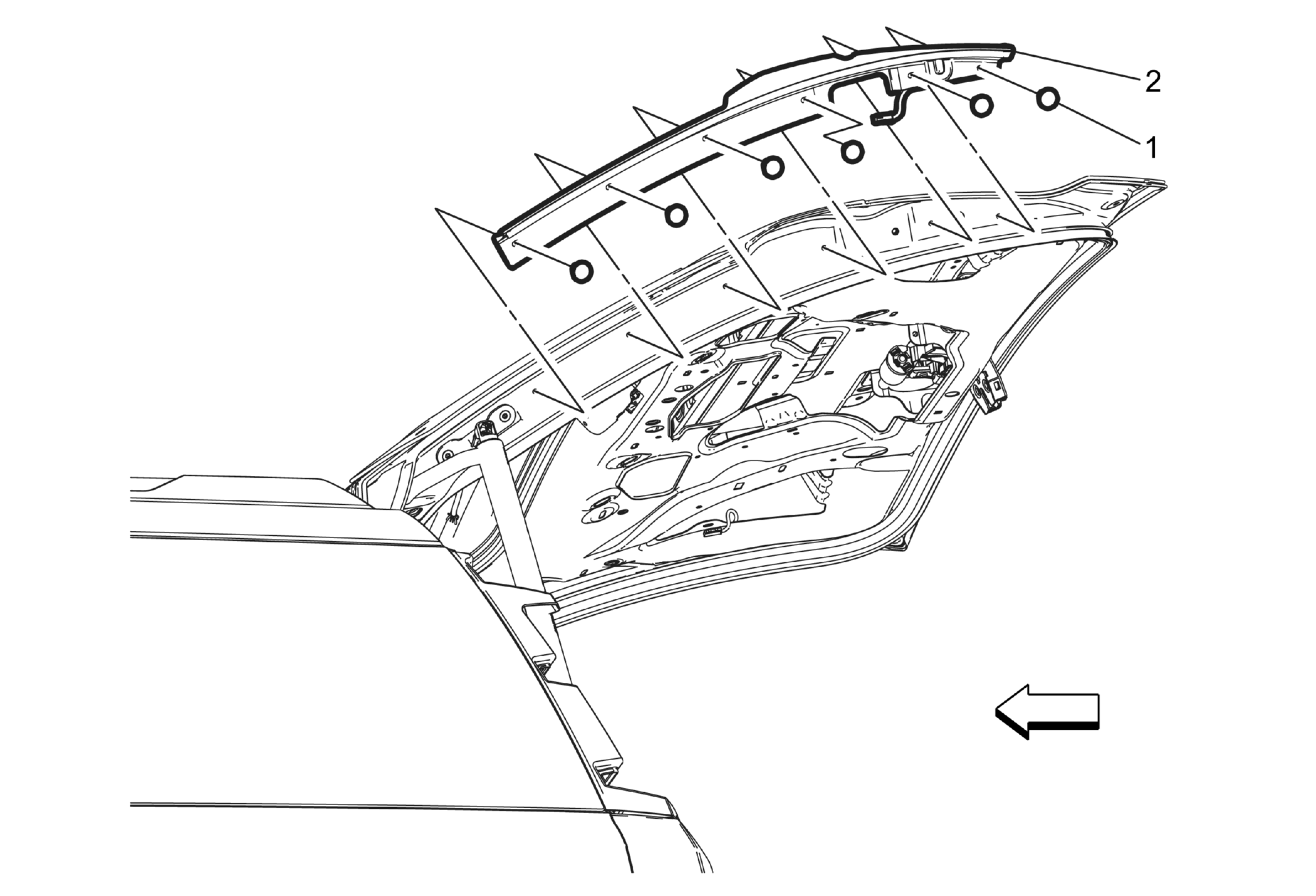

Fig 1: Liftgate Side Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the liftgate trim finish panel. Refer to Liftgate Trim Finish Panel Replacement Disconnect the electrical connector.
1	Liftgate Side Sensor Retainers (Qty: 6) NOTE: The retainers are ONE time use ONLY. They must be replaced after being removed.
2	Liftgate Side Sensor

Callout

Component Name

Preliminary Procedures

Remove the liftgate trim finish panel. Refer to Liftgate Trim Finish Panel Replacement
Disconnect the electrical connector.

Liftgate Side Sensor Retainers (Qty: 6)

NOTE:

The retainers are ONE time use ONLY. They must be replaced after being removed.

Liftgate Side Sensor
