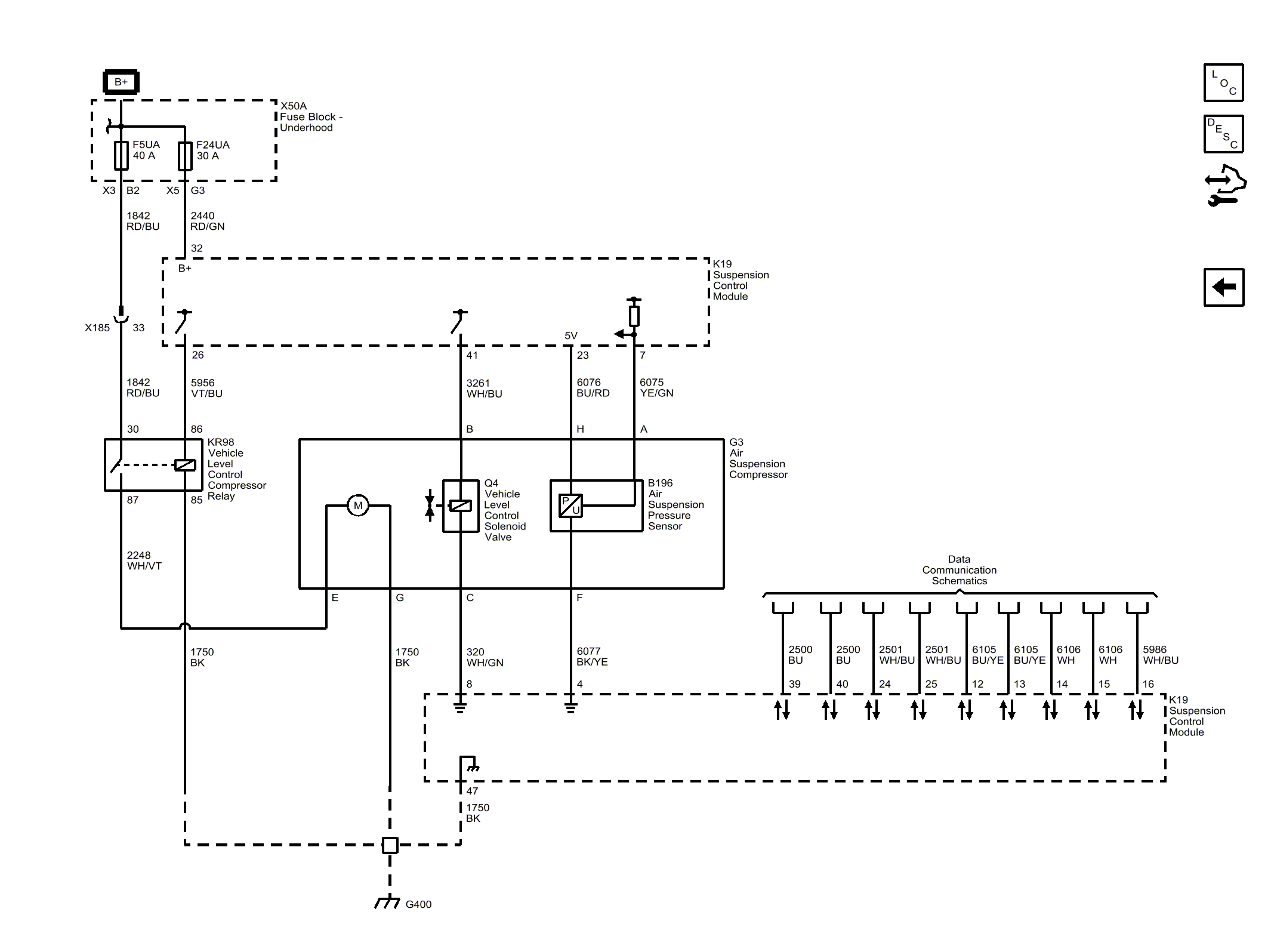

Home >> Chevrolet >> 2016 >> Suburban 3500 HD LS >> Repair and Diagnosis >> Suspension >> Electronic Suspension >> Suspension Control System - Suspension Leveling >> Schematic Wiring Diagrams >> Automatic Level Control Wiring Schematics >> Automatic Level Control (Z95)
