Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 GMC Yukon XL, 2015 GMC Yukon, 2015 Chevrolet Tahoe, 2015 Chevrolet Suburban, and 2015 Cadillac Escalade ESV. However, it is still accessible from the selected car via links, so may be relevant.

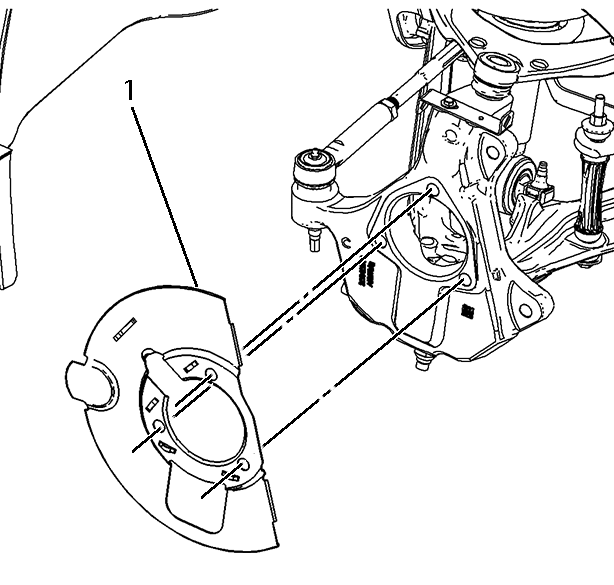

    Fig 1: Front Brake Shield
    GM3627440Courtesy of GENERAL MOTORS COMPANY
  1. Install the front brake shield (1).

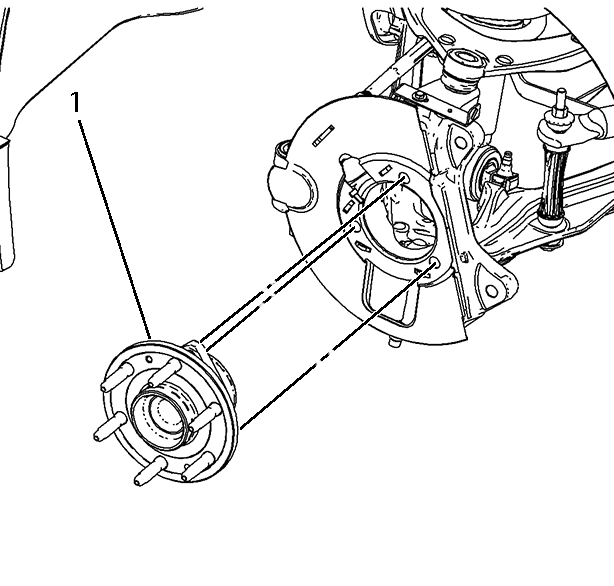

    2. Fig 2: Front Wheel Bearing And Hub
    GM3627439Courtesy of GENERAL MOTORS COMPANY
  2. Install the front wheel bearing and hub (1). Refer to Front Wheel Hub, Bearing, and Seal Replacement .
