Sunroof Module Bracket Replacement
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 GMC Yukon XL, 2015 GMC Yukon, 2015 Chevrolet Tahoe, 2015 Chevrolet Suburban, and 2015 Cadillac Escalade ESV. However, it is still accessible from the selected car via links, so may be relevant.

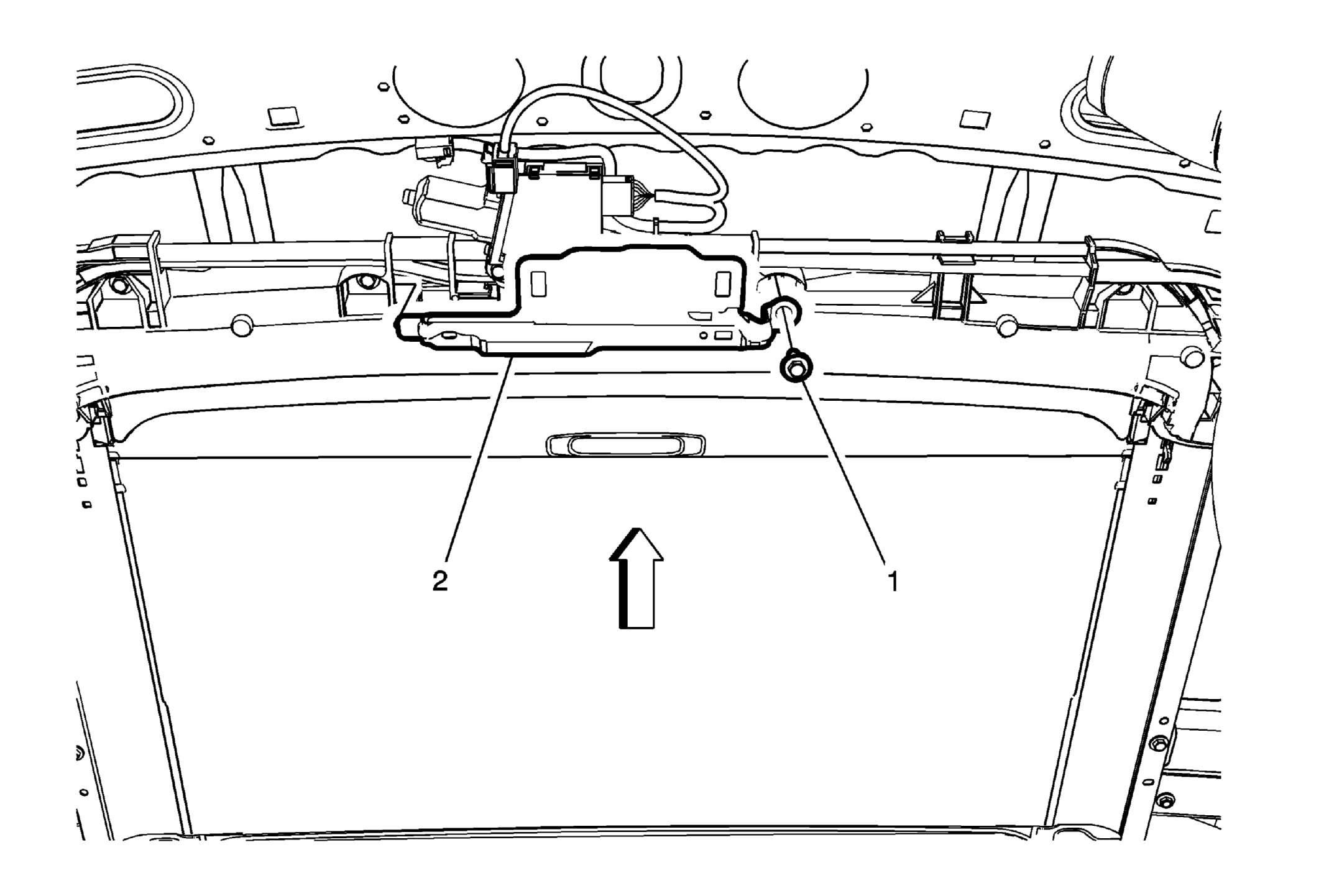

| Callout | Component Name |
|---|---|
| 1 | Sunroof Module Bracket Screw
CAUTION:
Refer to Fastener Caution . Procedure Remove the left side screw from the bracket. Tighten 5 N.m (44 lb in) |
| 2 | Sunroof Module Bracket Procedure Carefully swing the bracket downward to release the right side from the module. |
