Rollover Protection Disable Switch Replacement

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 GMC Yukon XL, 2015 GMC Yukon, 2015 Chevrolet Tahoe, 2015 Chevrolet Suburban, and 2015 Cadillac Escalade ESV. However, it is still accessible from the selected car via links, so may be relevant.

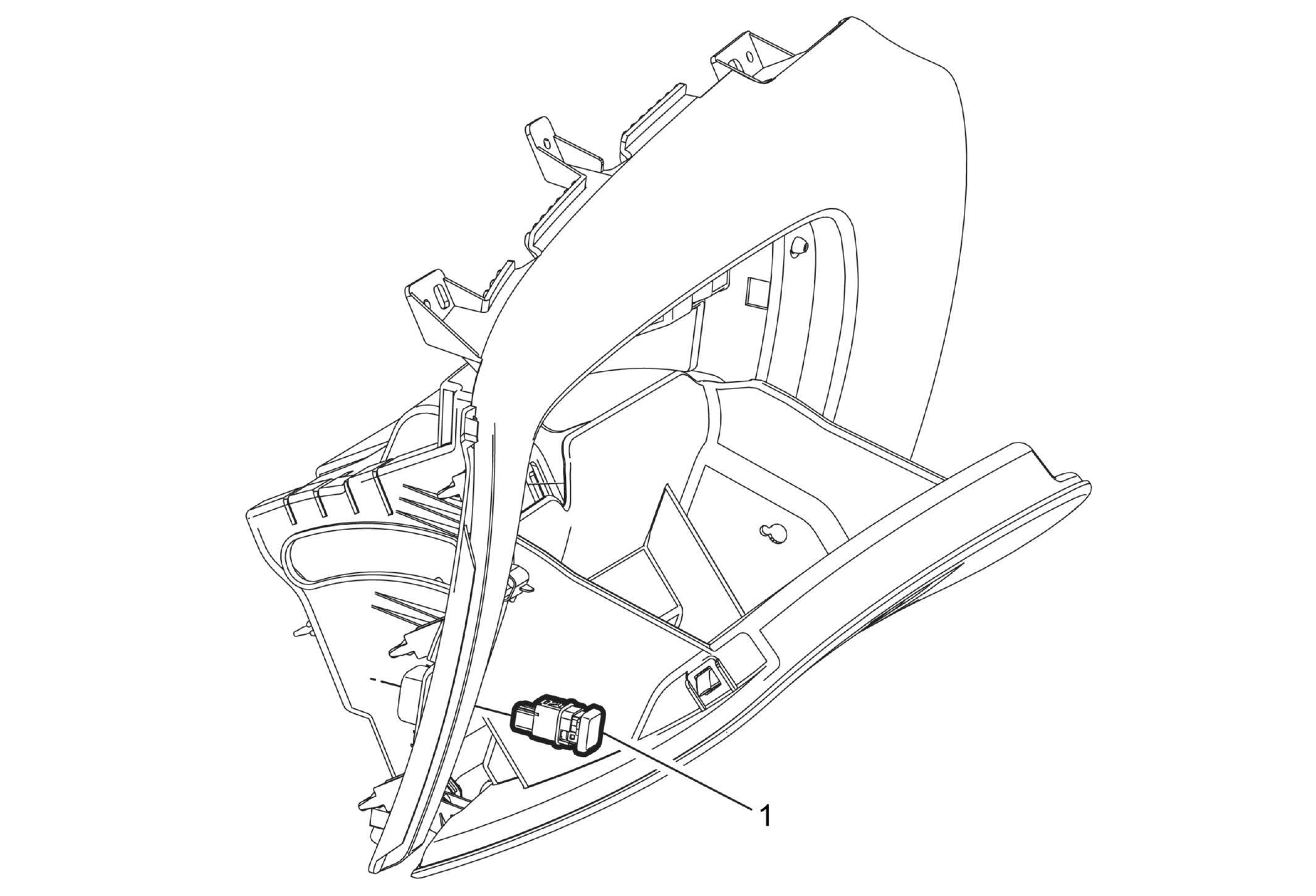

Fig 1: Rollover Protection Disable Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the instrument panel compartment. Refer to Instrument Panel Compartment Replacement (Chevrolet / GMC)Instrument Panel Compartment Replacement (Cadillac) .
1	Rollover Protection Disable Switch Procedure Disconnect the electrical connector. Using the appropriate tool, depress the tabs on the switch to remove.

Callout

Component Name

Preliminary Procedure
Remove the instrument panel compartment. Refer to Instrument Panel Compartment Replacement (Chevrolet / GMC)Instrument Panel Compartment Replacement (Cadillac) .

Rollover Protection Disable Switch

Procedure

Disconnect the electrical connector.
Using the appropriate tool, depress the tabs on the switch to remove.
