Liftgate Window Latch Replacement (Cadillac)

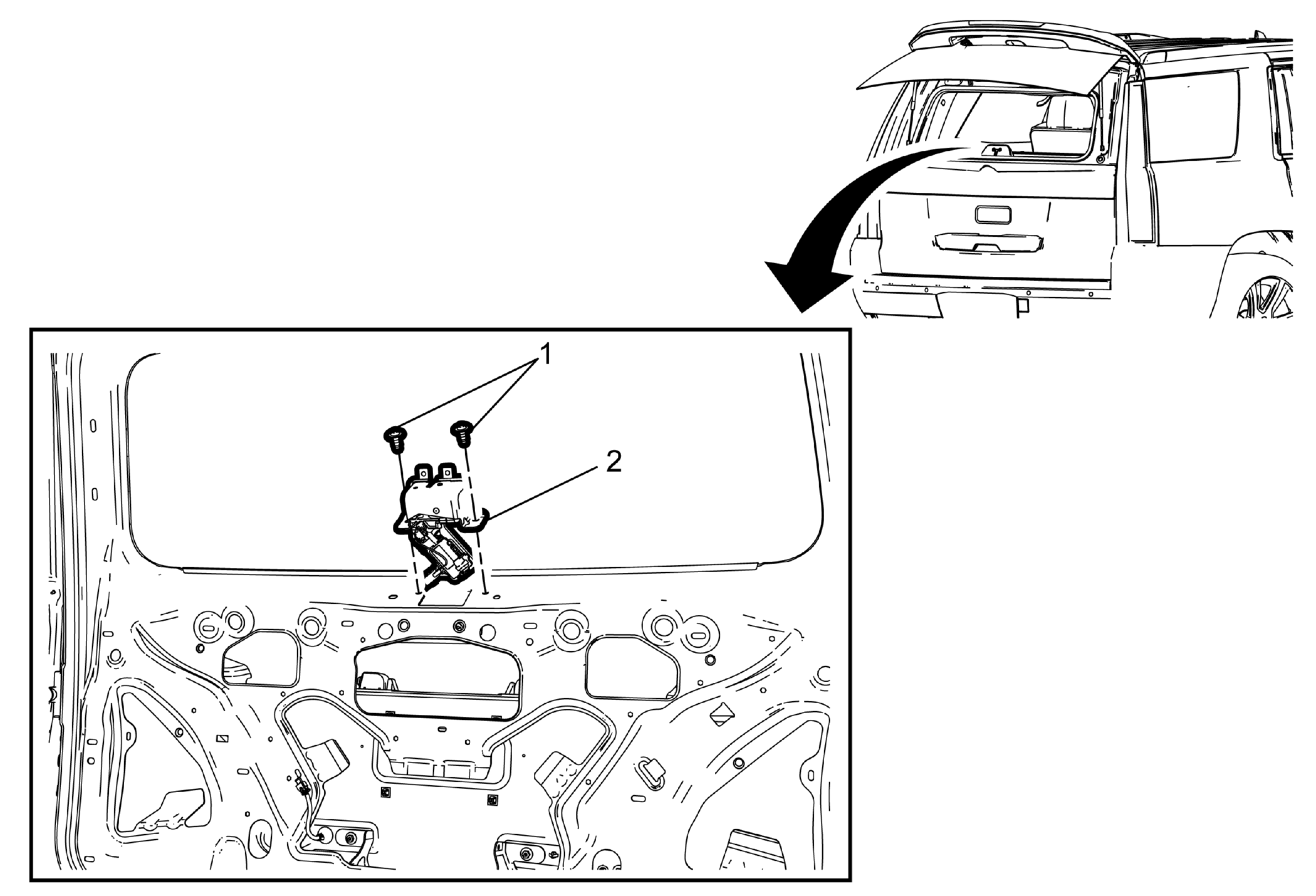

Fig 1: Liftgate Window Latch (Cadillac)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the liftgate trim finish panel. Refer to Liftgate Trim Finish Panel Replacement . Disconnect the electrical connector.
1	Liftgate Window Latch Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Liftgate Window Latch

Callout

Component Name

Preliminary Procedure

Remove the liftgate trim finish panel. Refer to Liftgate Trim Finish Panel Replacement .
Disconnect the electrical connector.

Liftgate Window Latch Screw (Qty: 2)

CAUTION:

Tighten
9 N.m (80 lb in)

Liftgate Window Latch
