Sunroof Switch Replacement

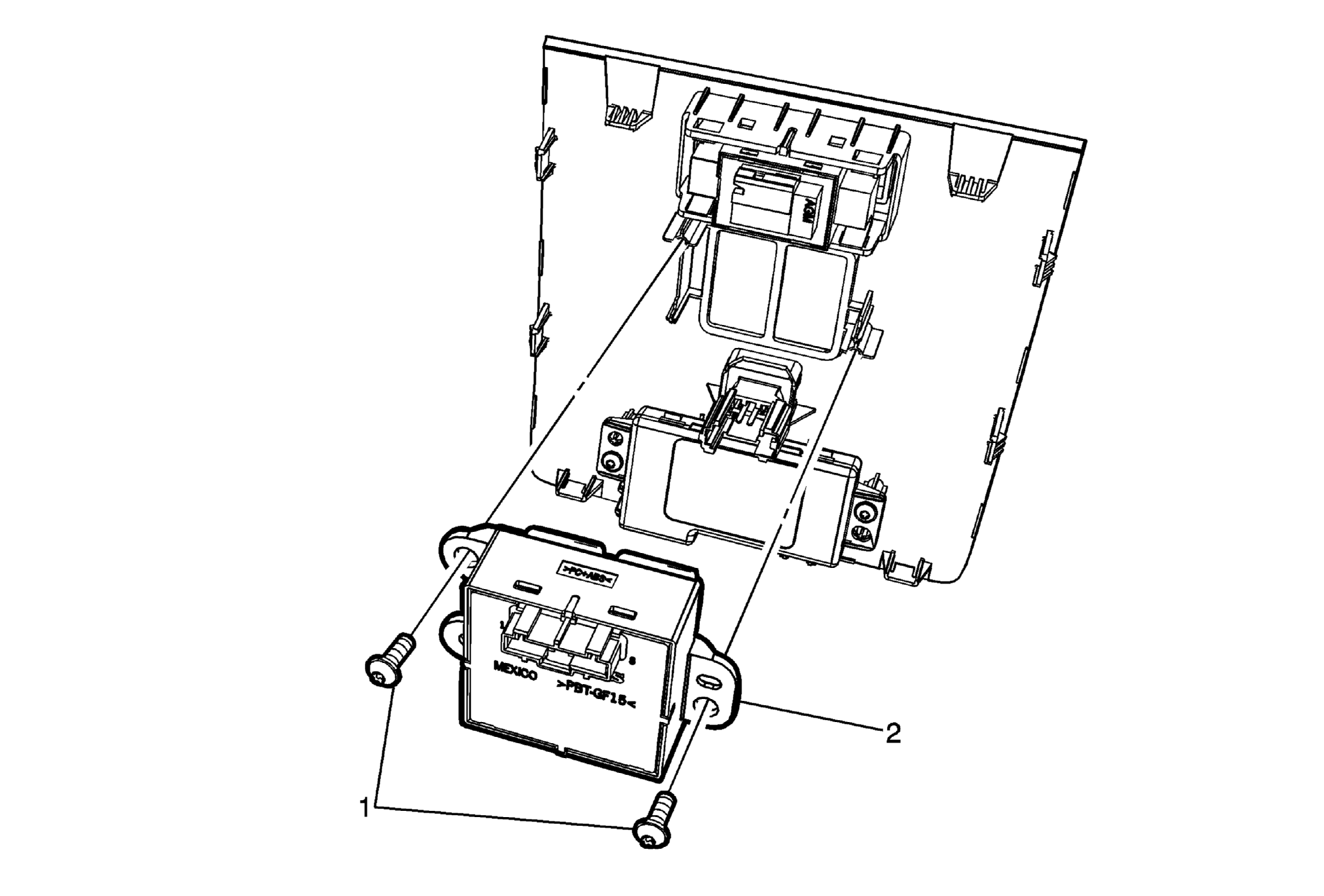

Fig 1: Sunroof Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the roof console opening trim plate. Refer to Roof Console Opening Trim Plate Replacement .
1	Sunroof Switch Fasteners (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 0.57 N.m (5 lb in)
2	Sunroof Switch
