Theft Deterrent Sensor Replacement

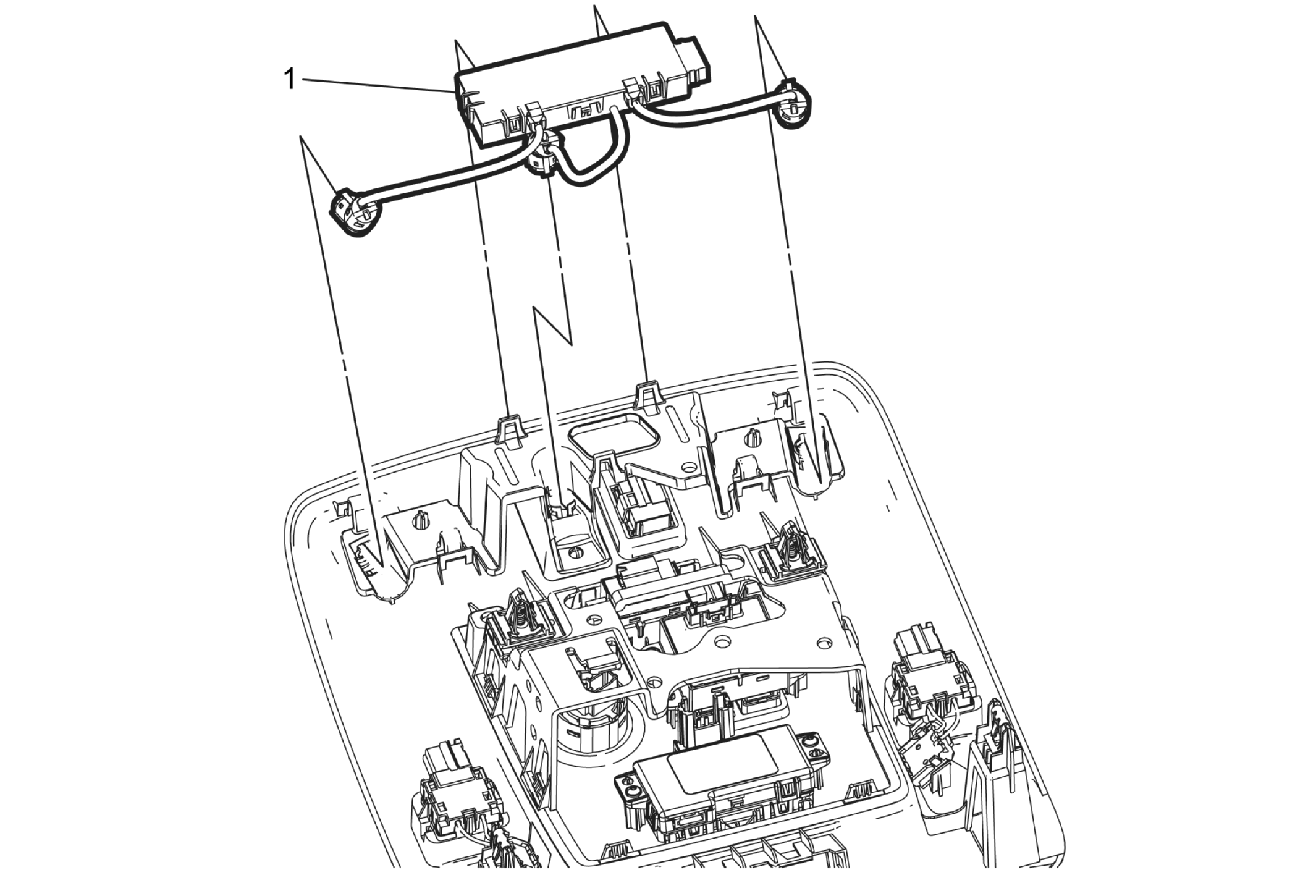

Fig 1: Theft Deterrent Sensor
GM3637180Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the roof console. Refer to Roof Console Replacement .
1 Theft Deterrent Sensor
Procedure
Release the tabs and disconnect the three sensors to remove the theft deterrent sensor assembly.
