Ignition Lock Key Transmitter Antenna Replacement - Floor Console (Cadillac)

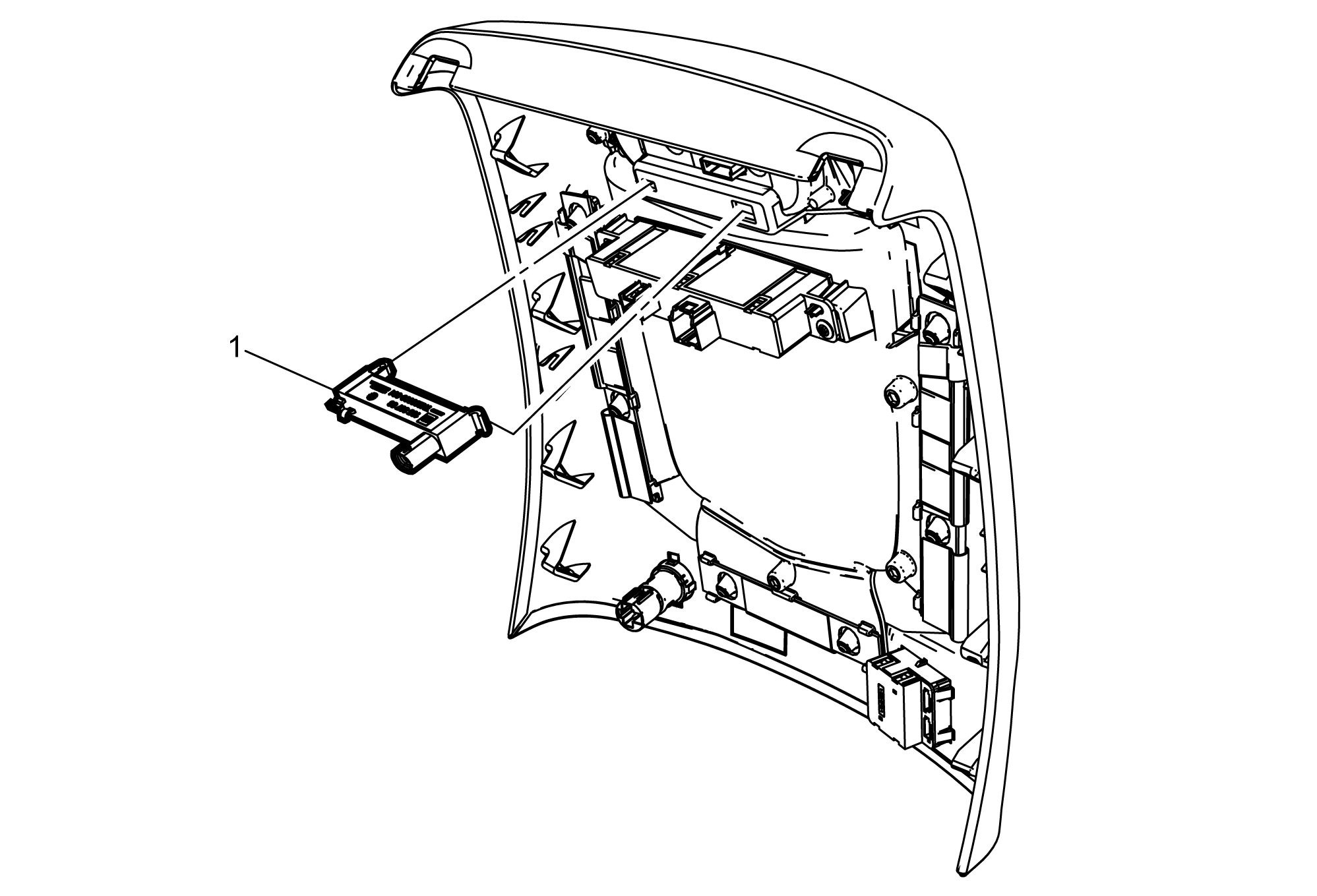

Fig 1: Ignition Lock Key Transmitter Antenna - Floor Console (Cadillac)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the front floor console rear trim panel. Refer to Front Floor Console Rear Trim Panel Replacement (Cadillac)Front Floor Console Rear Trim Panel Replacement (Storage Structure) .
1	Ignition Lock Key Transmitter Antenna Procedure  Unsnap antenna from the floor console trim panel.
