Installation Procedure

WARNING: This page is about a different car, the 2015 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the suitable engine compression test tool to the spark plug hole.

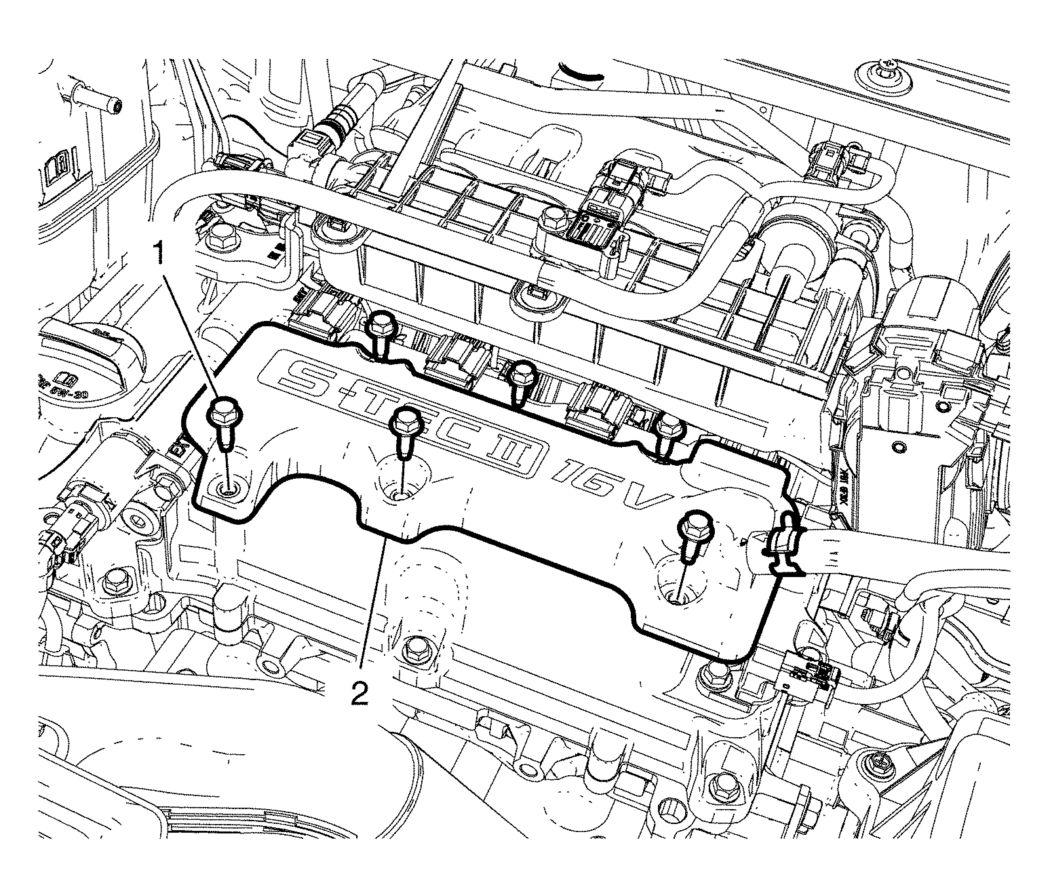

    Fig 1: Ignition Coil Cover
    GM2755435Courtesy of GENERAL MOTORS COMPANY
  2. Install the fuel pump relay.
  3. Install the relay carrier cover.
  4. Install the spark plugs and tighten the spark plug to 20 N.m (14.7 lb ft).
  5. Install the ignition coil cover (2). Refer to Ignition Coil Cover Replacement (LL0)  and Ignition Coil Cover Replacement (LFM) .
  6. Tighten the bolts (1) to 10 N.m (89 lb in).
    CAUTION: Refer to Fastener Caution .
