Installation Procedure

WARNING: This page is about a different car, the 2015 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

Install the radiator outlet hose to the water pump outlet pipe.

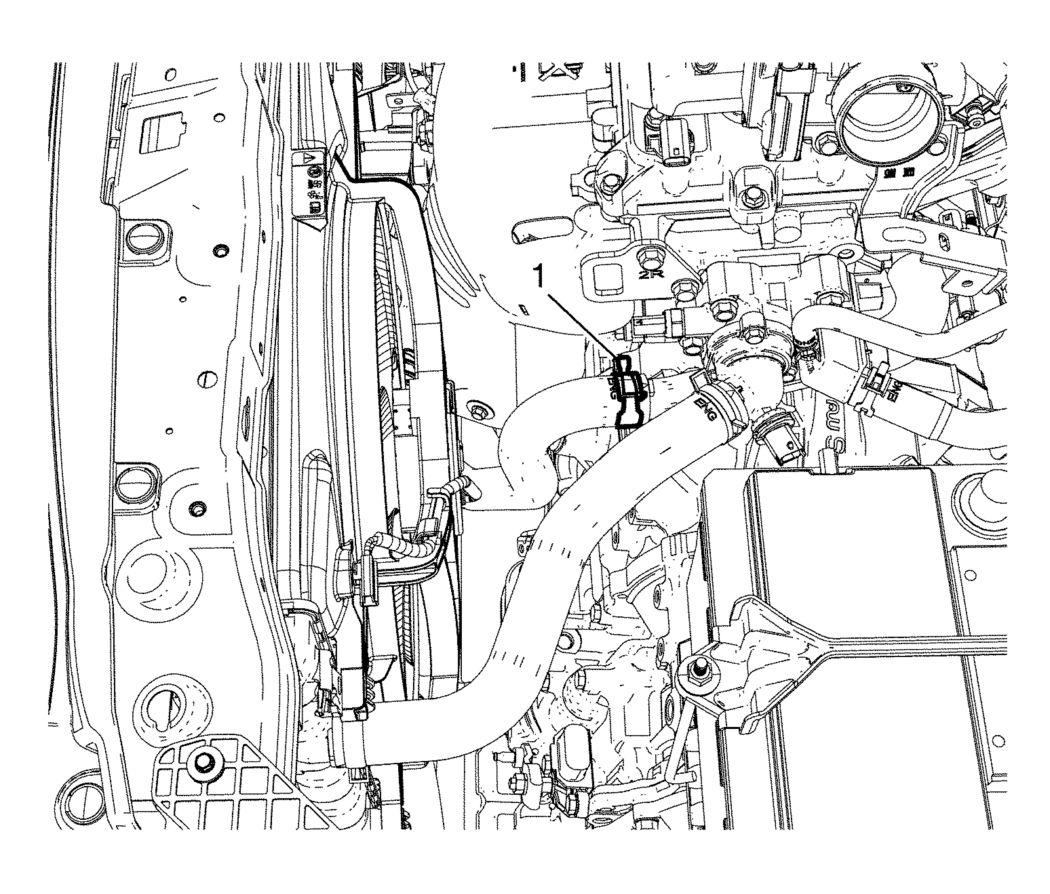

Fig 1: Radiator Outlet Hose Clamp
Courtesy of GENERAL MOTORS COMPANY
Install the radiator outlet hose clamp (1).
Install the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .
Raise the vehicle. Refer to Lifting and Jacking the Vehicle .
Install the radiator outlet hose to the radiator.

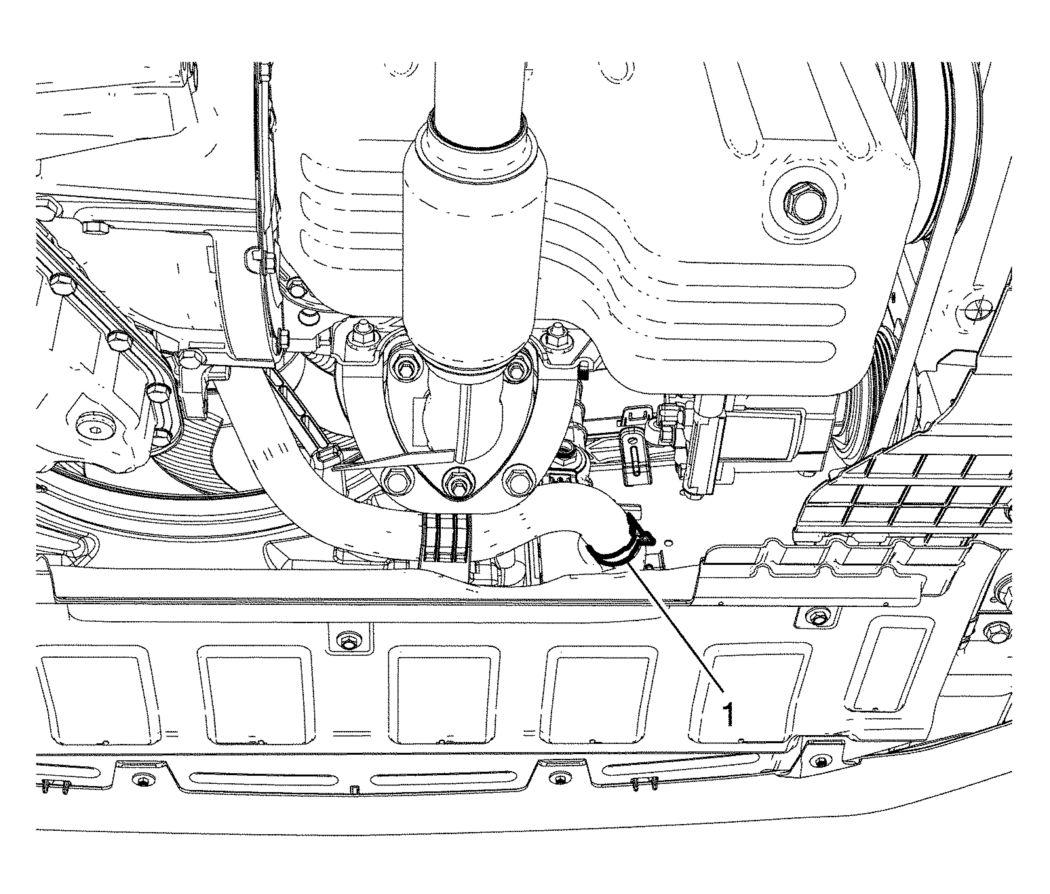

Fig 2: Radiator Outlet Hose Clamp
Courtesy of GENERAL MOTORS COMPANY
Install the radiator outlet hose clamp (1).
Lower the vehicle. Refer to Lifting and Jacking the Vehicle .
Fill the cooling system. Refer to Cooling System Draining and Filling .
