Installation Procedure

WARNING: This page is about a different car, the 2015 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

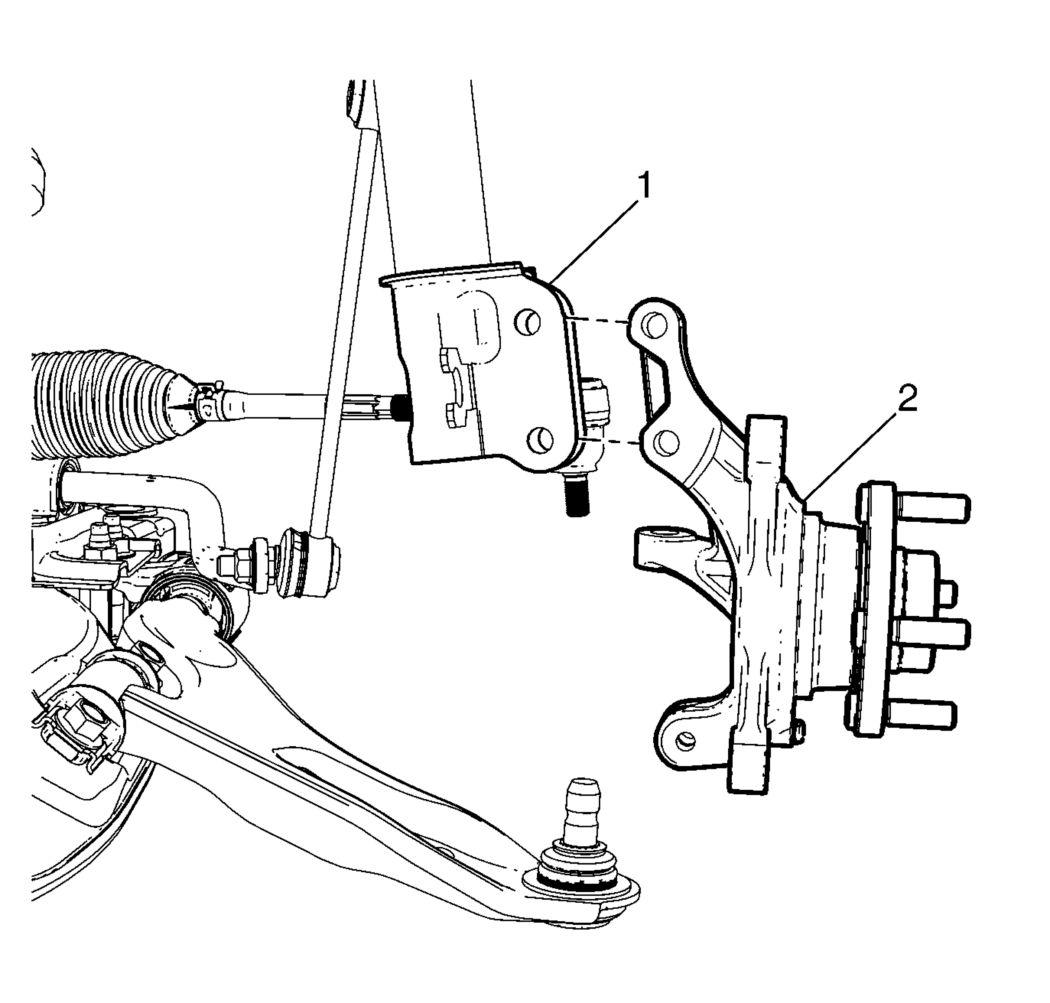

  1. Install the steering knuckle assembly (2) to the strut assembly (1).
    Fig 1: Steering Knuckle Assembly
    GM2327523Courtesy of GENERAL MOTORS COMPANY

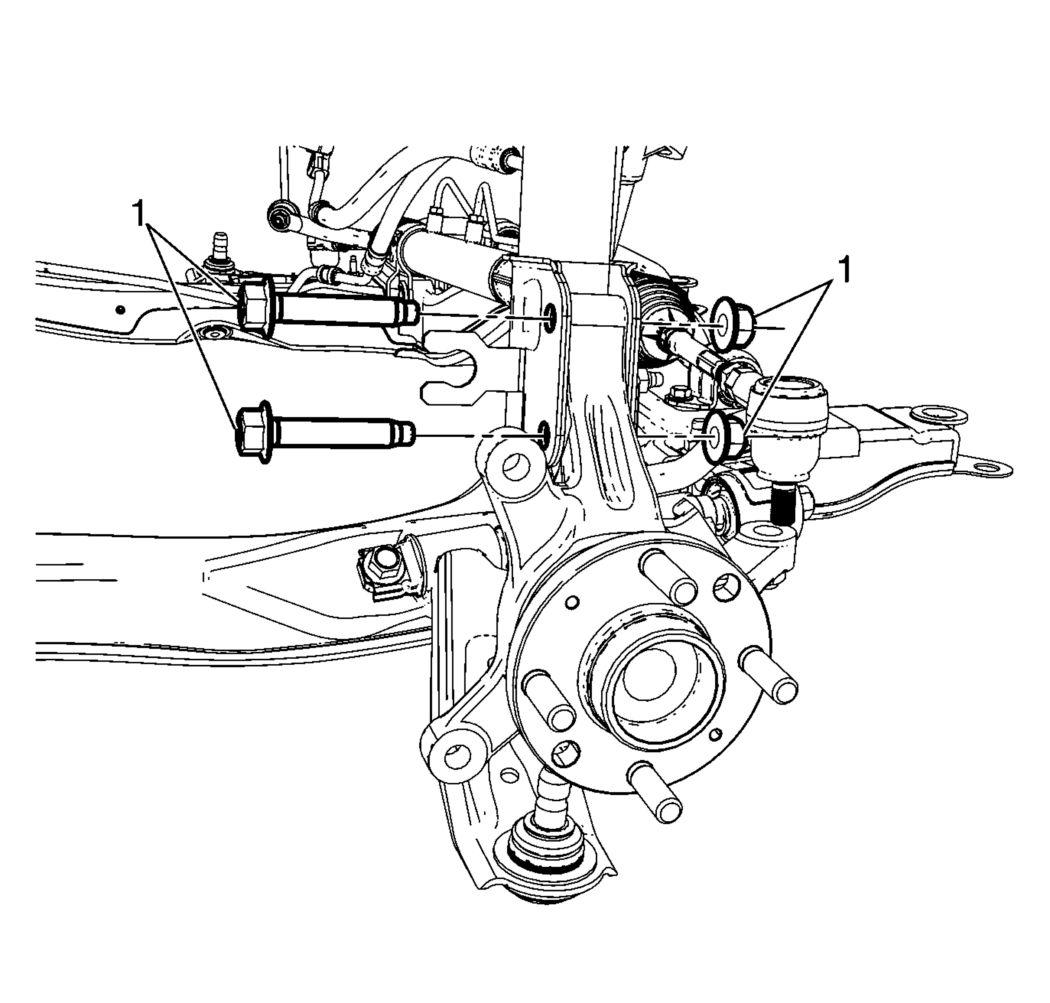

  2. Install the strut to knuckle retaining bolts and nuts (1) and tighten to 80 N.m (59 lb ft).
    Fig 2: Knuckle, Bolts And Nuts
    GM2327525Courtesy of GENERAL MOTORS COMPANY
    CAUTION: Refer to Fastener Caution .
  3. Tighten the nuts at the final pass to an additional 38 degrees.
  4. Install the brake rotor splash shield to the steering knuckle. Refer to Front Brake Shield Replacement .
  5. Install the wheel speed sensor, if equipped with ABS. Refer to Front Wheel Speed Sensor Replacement (Left Side) and Front Wheel Speed Sensor Replacement (Right Side) .
  6. Install the brake rotor. Refer to Front Brake Rotor Replacement .
  7. Install the wheel drive shaft to the steering knuckle. Refer to Front Wheel Drive Shaft Replacement .
  8. Install the control arm ball joint to the steering knuckle. Refer to Lower Control Arm Replacement .
  9. Install the outer tie rod end to the steering knuckle. Refer to Steering Linkage Outer Tie Rod Replacement .
  10. Install the front tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
  11. Lower the vehicle.
