Installation Procedure

WARNING: This page is about a different car, the 2015 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the front side door lock cylinder.
    NOTE: If you are installing a new lock cylinder, refer to Key and Lock Cylinder Coding .
  2. Install the front side door lock cylinder bolt (2) and tighten to 4.5 N.m (40 lb in).

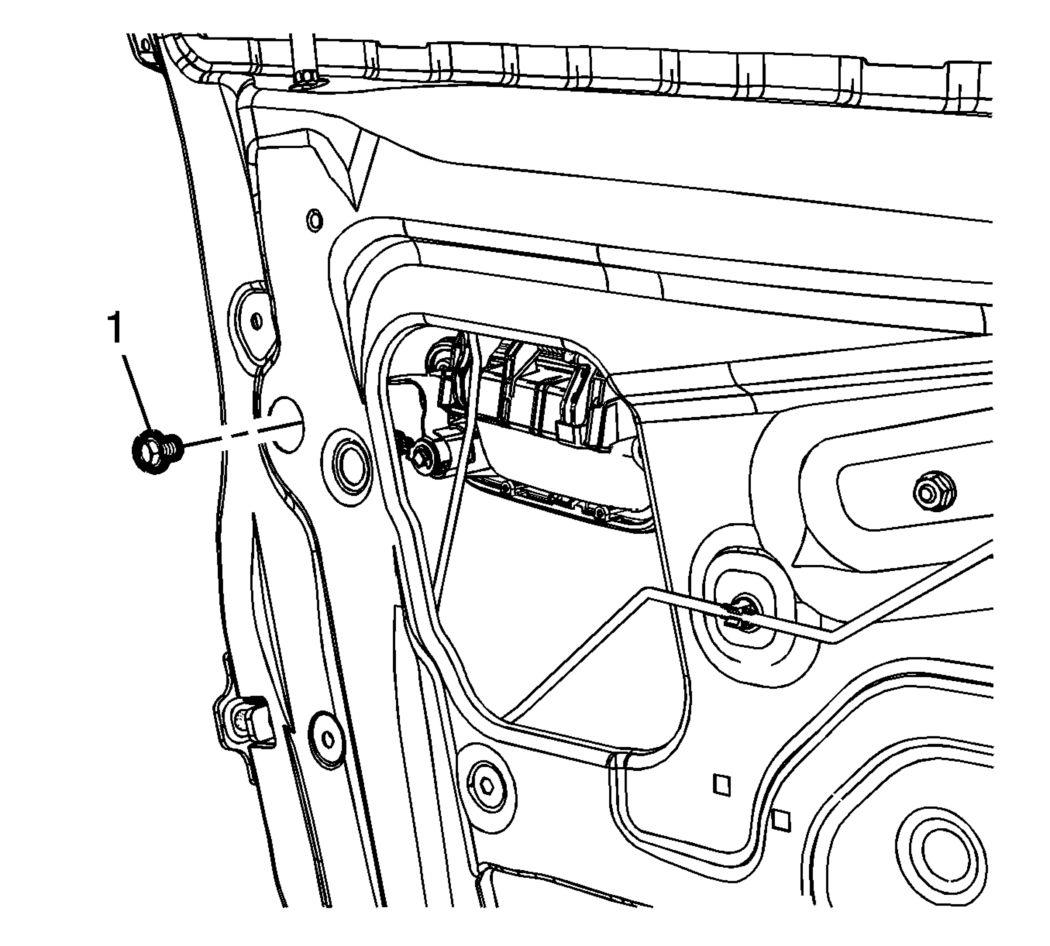

    Fig 1: Front Side Door Lock Cylinder Bolt
    GM2309073Courtesy of GENERAL MOTORS COMPANY
  3. Install the front side door lock rod holder.
