Front Side Door Inside Handle Replacement

WARNING: This page is about a different car, the 2015 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

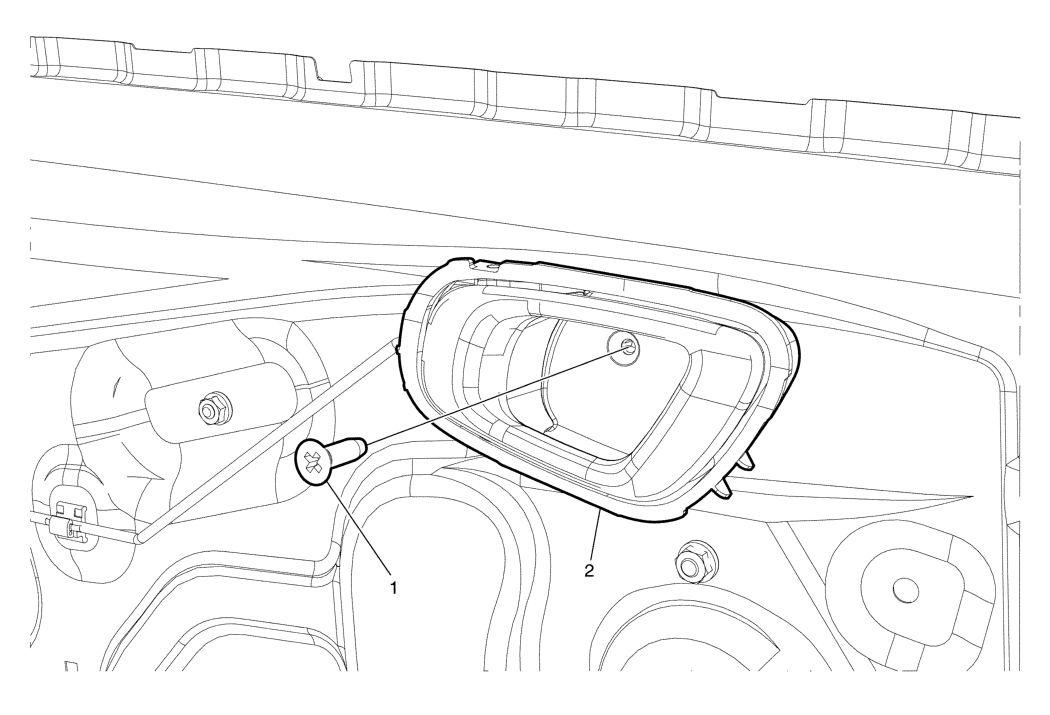

Fig 1: Front Side Door Inside Handle

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front side door trim panel. Refer to Front Side Door Trim Panel Replacement . Remove the water deflector. Remove the front side door inside handle rod.
1	Front Side Door Inside Handle Screw (Qty: 1) CAUTION: Refer to Fastener Caution . Tighten 1.5 N.m (13 lb in)
2	Front Side Door Inside Handle

Callout

Component Name

Preliminary Procedures

Remove the front side door trim panel. Refer to Front Side Door Trim Panel Replacement .
Remove the water deflector.
Remove the front side door inside handle rod.

Front Side Door Inside Handle Screw (Qty: 1)

CAUTION: Refer to Fastener Caution .

Tighten
1.5 N.m (13 lb in)

Front Side Door Inside Handle
