Front Seat Belt Buckle Replacement

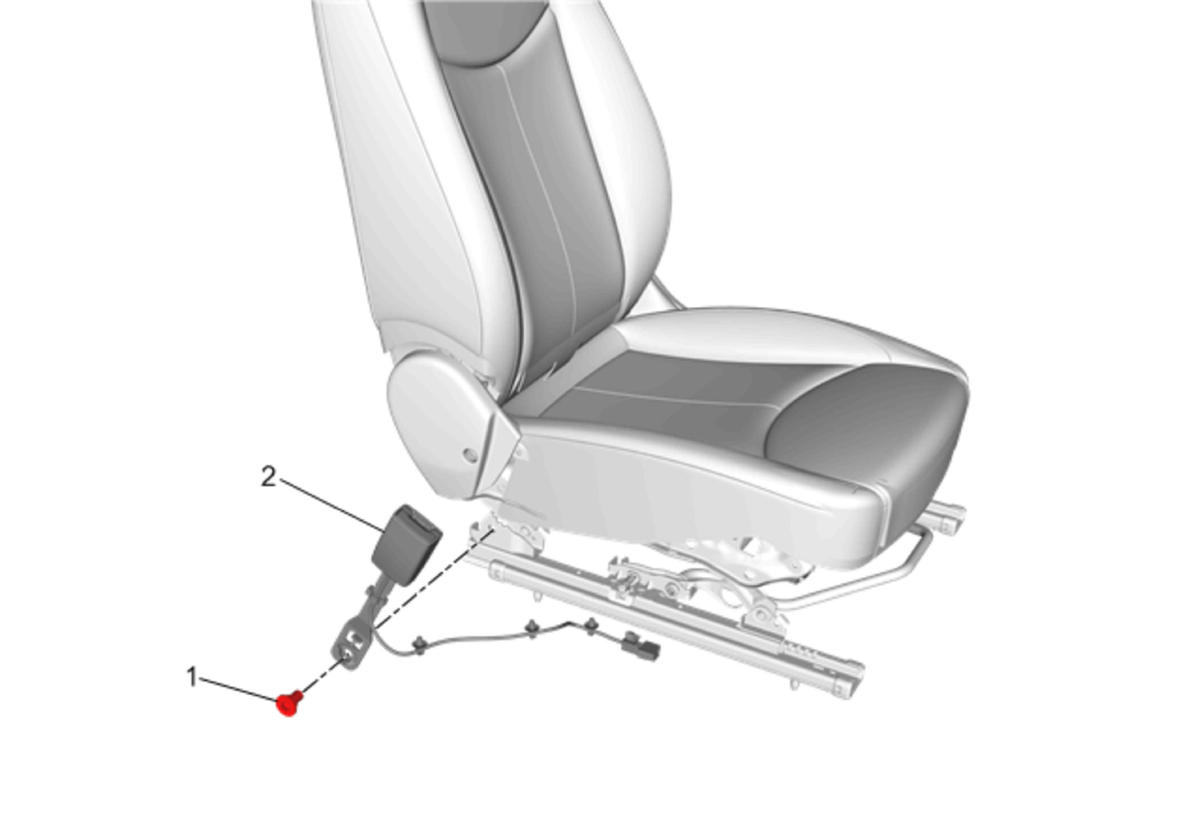

Fig 1: Front Seat Belt Buckle
GM4031870Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedures
Remove the front seat. Refer to Driver or Passenger Seat Removal and Installation .
1 Front Seat Belt Buckle Bolt
CAUTION:

Refer to Fastener Caution .


Tighten
40 N.m (30 lb ft)
2 Front Seat Belt Buckle Assembly
