P17 Info Display Module
WARNING: This page is about a different car, the 2015 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
|
|

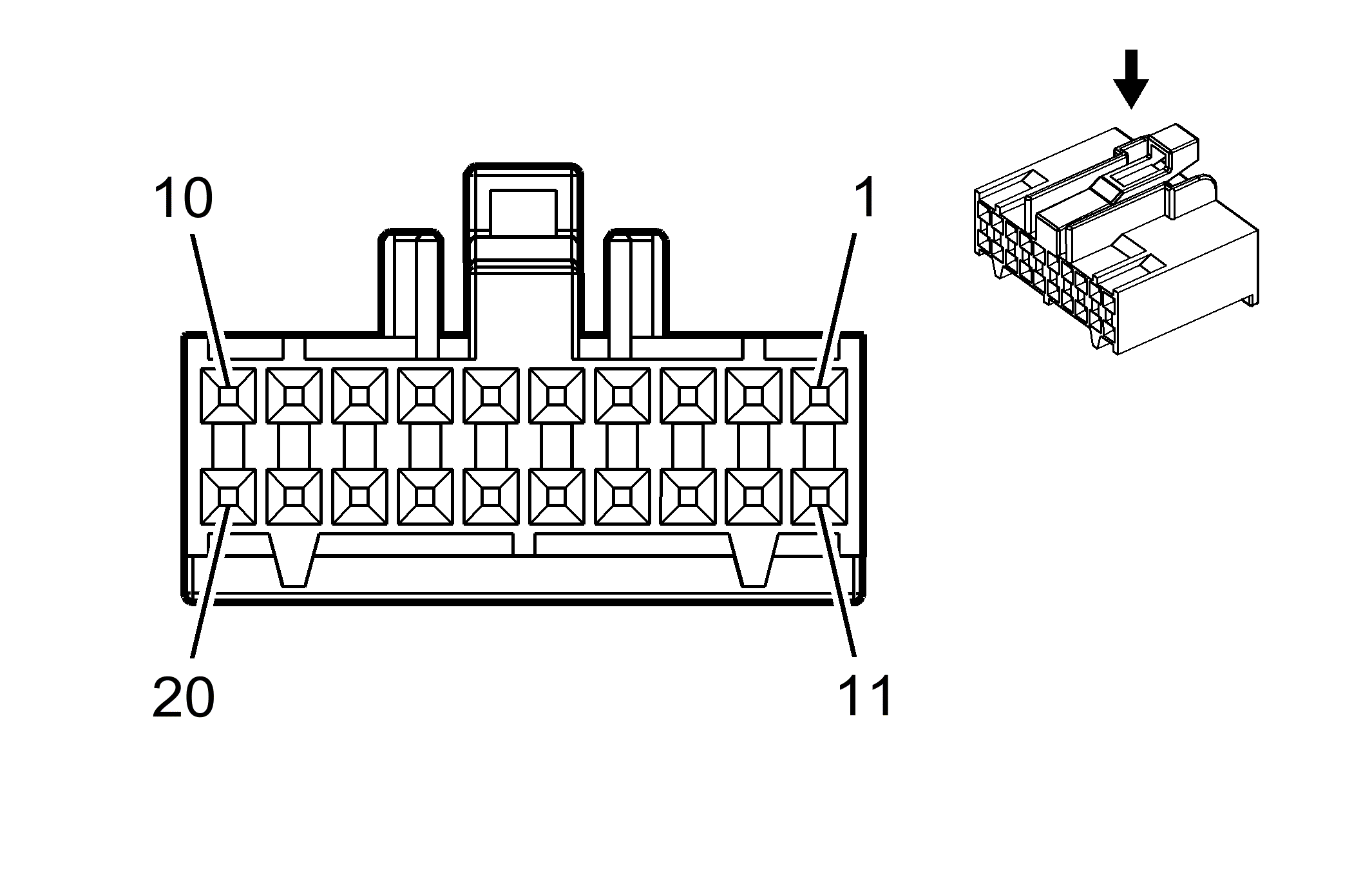

Connector Part Information
- Harness Type: Instrument Panel
- OEM Connector: 172047-2
- Service Connector: 19301385
- Description: 20-Way F 0.64 Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
13578839 |
J-35616-64B (LT BU) |
J-38125-12A |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
VT/GY |
139 |
Run/Crank Ignition 1 Voltage |
I |
- |
| 2 |
0.35 |
GY |
728 |
Security Indicator Control |
I |
- |
| 3 |
0.35 |
BU |
2307 |
Passenger Air Bag On Indicator Control |
I |
AYF/C99 |
| 4 |
- |
- |
- |
Not Occupied |
- |
- |
| 5 |
0.35 |
BU |
2307 |
Passenger Air Bag On Indicator Control |
I |
AYF/C99 |
| 6 |
0.35 |
GN |
2308 |
Passenger Air Bag Off Indicator Control |
I |
- |
| 7 |
0.5 |
BK |
750 |
Ground |
I |
- |
| 8 |
0.35 |
GN/BU |
183 |
Front Fog Lamp Indicator Control |
I |
- |
| 9 |
0.35 |
BU/VT |
184 |
Rear Fog Lamp Indicator Control |
I |
- |
| 10 |
0.35 |
VT |
185 |
Low Washer Fluid Indicator Control |
I |
- |
| 11 |
0.35 |
VT/WH |
5234 |
Passenger Seat Belt Indicator Control |
I |
- |
| 12 |
0.5 |
VT/GY |
139 |
Run/Crank Ignition 1 Voltage |
I |
- |
| 13 - 18 |
- |
- |
- |
Not Occupied |
- |
- |
| 19 |
0.35 |
GY/GN |
5053 |
Winter Mode Switch Signal |
I |
CW1+(MNG/M4M) |
| 20 |
- |
- |
- |
Not Occupied |
- |
- |
