Outside Rearview Mirror Replacement
WARNING: This page is about a different car, the 2015 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

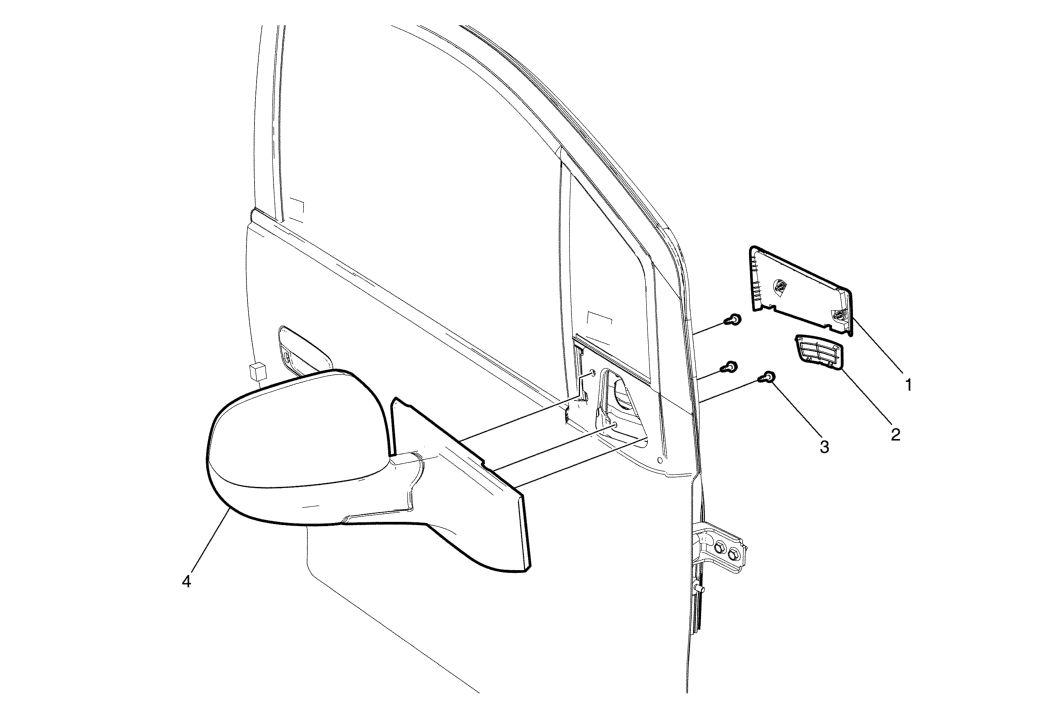

| Callout | Component Name |
|---|---|
| 1 | Front Side Door Upper Front Trim Panel Assembly TIP: Trim panel is secured to door with clips. |
| 2 | Front Side Door Trim Bolt Hole Cover |
| 3 | Outside Rearview Mirror Mounting Bolt (Qty: 3)
CAUTION:
Refer to Fastener Caution
. Tighten 9 N.m (80 lb in) |
| 4 | Outside Rearview Mirror Assembly |
