Engine Components - Right Rear (LV7)

Engine Components - Right Rear (LV7)

Items
1: B23E Camshaft Position Sensor - Exhaust B23E Camshaft Position Sensor - Exhaust
2: B23F Camshaft Position Sensor - Intake B23F Camshaft Position Sensor - Intake
3: Q38 Throttle Body Q38 Throttle Body
4: B75C Multifunction Intake Air Sensor (L5Q or LV7) B75C Multifunction Intake Air Sensor
5: Q6F Camshaft Position Actuator Solenoid Valve - Intake Q6F Camshaft Position Actuator Solenoid Valve - Intake
6: Q12 Evaporative Emission Purge Solenoid Valve Q12 Evaporative Emission Purge Solenoid Valve
7: G13 Generator G13 Generator X1G13 Generator X2
8: M64 Starter Motor M64 Starter Motor X1M64 Starter Motor X2
9: B68 Knock Sensor (L5Q or LV7) B68 Knock Sensor L5QB68 Knock Sensor LV7
10: B37B Engine Oil Pressure Sensor B37B Engine Oil Pressure Sensor
11: B34 Engine Coolant Temperature Sensor B34 Engine Coolant Temperature Sensor

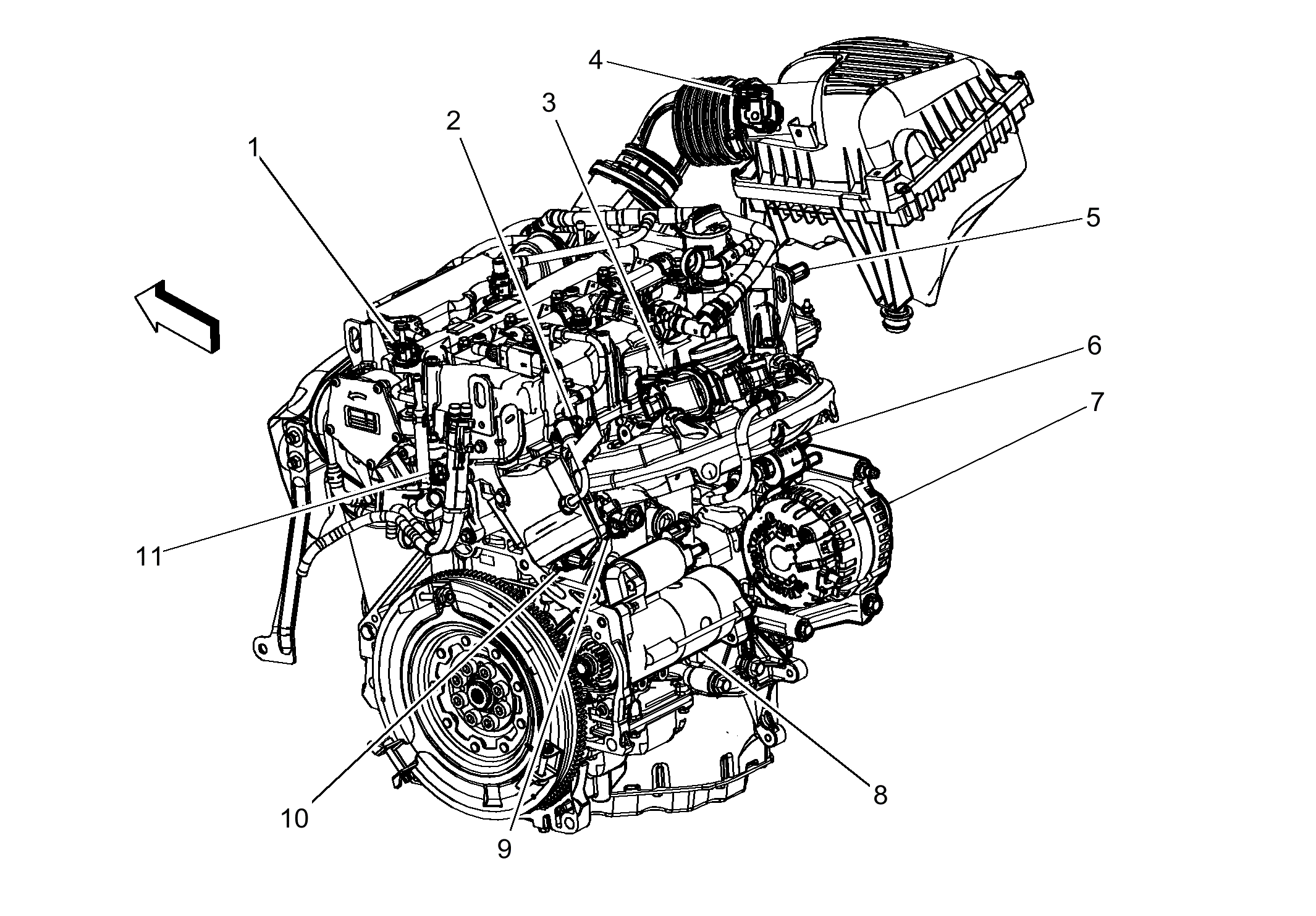

Fig 1: Engine Components - Right Rear (LV7)
GM4171024Courtesy of GENERAL MOTORS COMPANY
