Power, Ground, Serial Data, Rear and Side Object Sensors, Controls and Display (UD7 or UDQ)

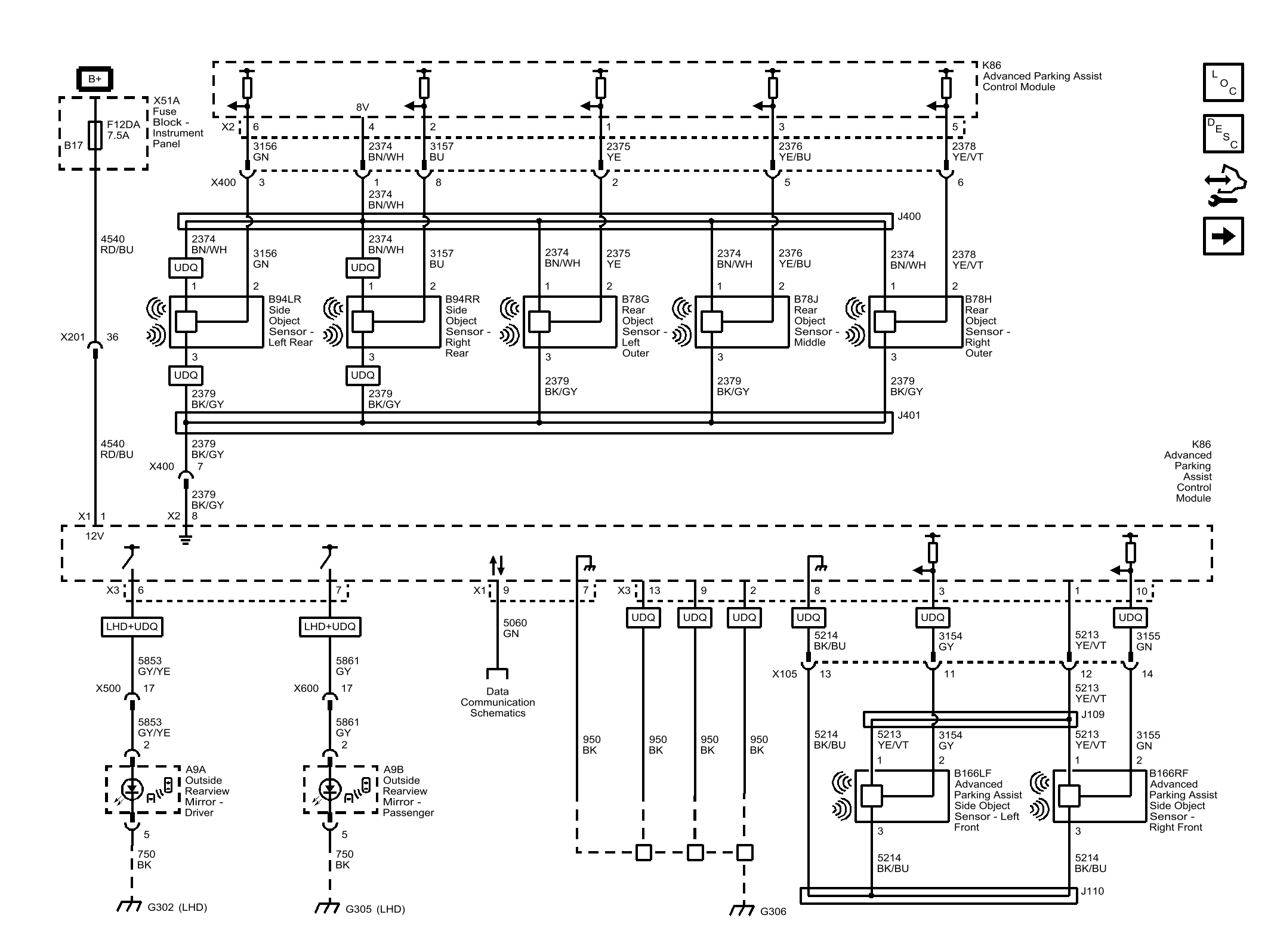

Fig 1: Power, Ground, Serial Data, Rear and Side Object Sensors, Controls and Display (UD7 or UDQ)
GM4086421Courtesy of GENERAL MOTORS COMPANY
