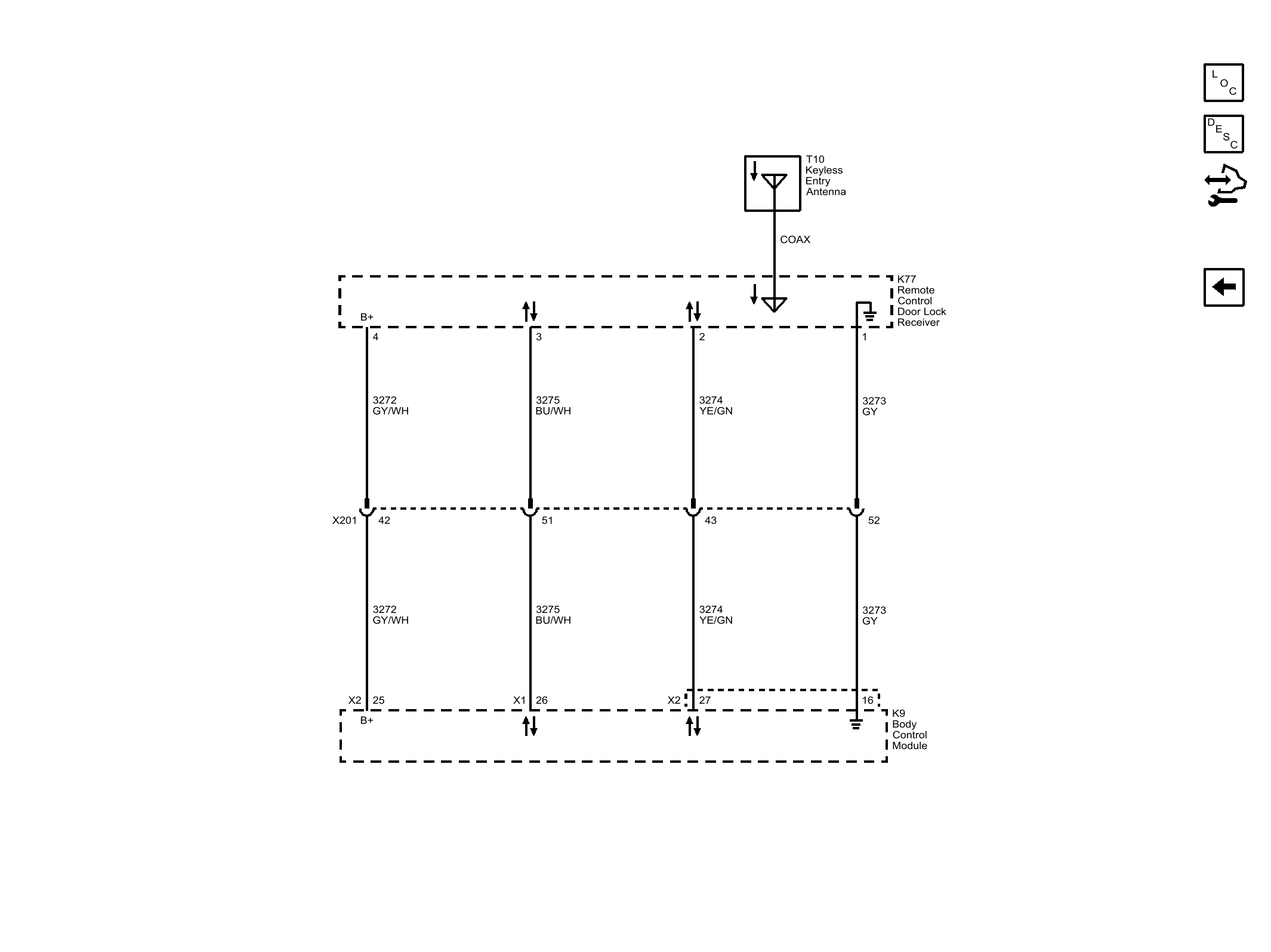

Home >> Chevrolet >> 2016 >> Spark LS, Automatic CVT Trans >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Keyless Entry System And Remote Functions >> Schematic Wiring Diagrams >> Remote Function Wiring Schematics >> Keyless Entry (XL8)
