Front Seat Belt Guide Adjuster Replacement

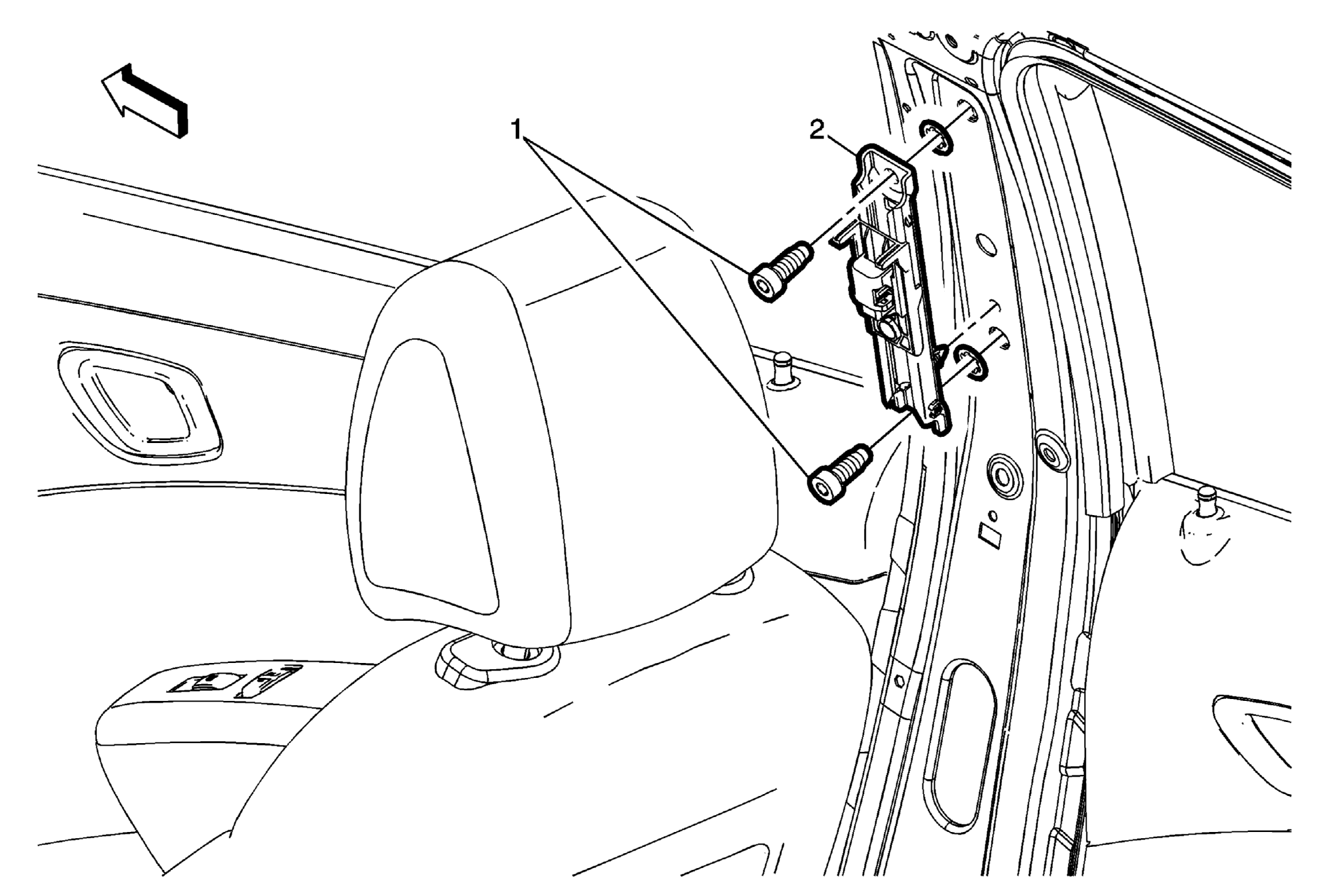

Fig 1: Front Seat Belt Guide Adjuster

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remover center pillar upper trim panel. Refer to Center Pillar Upper Trim Panel Replacement .
1	Front Seat Belt Guide Adjuster Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten  40 N.m (30 lb ft)
2	Front Seat Belt Guide Adjuster Assembly
