Liftgate Lock Cylinder Replacement

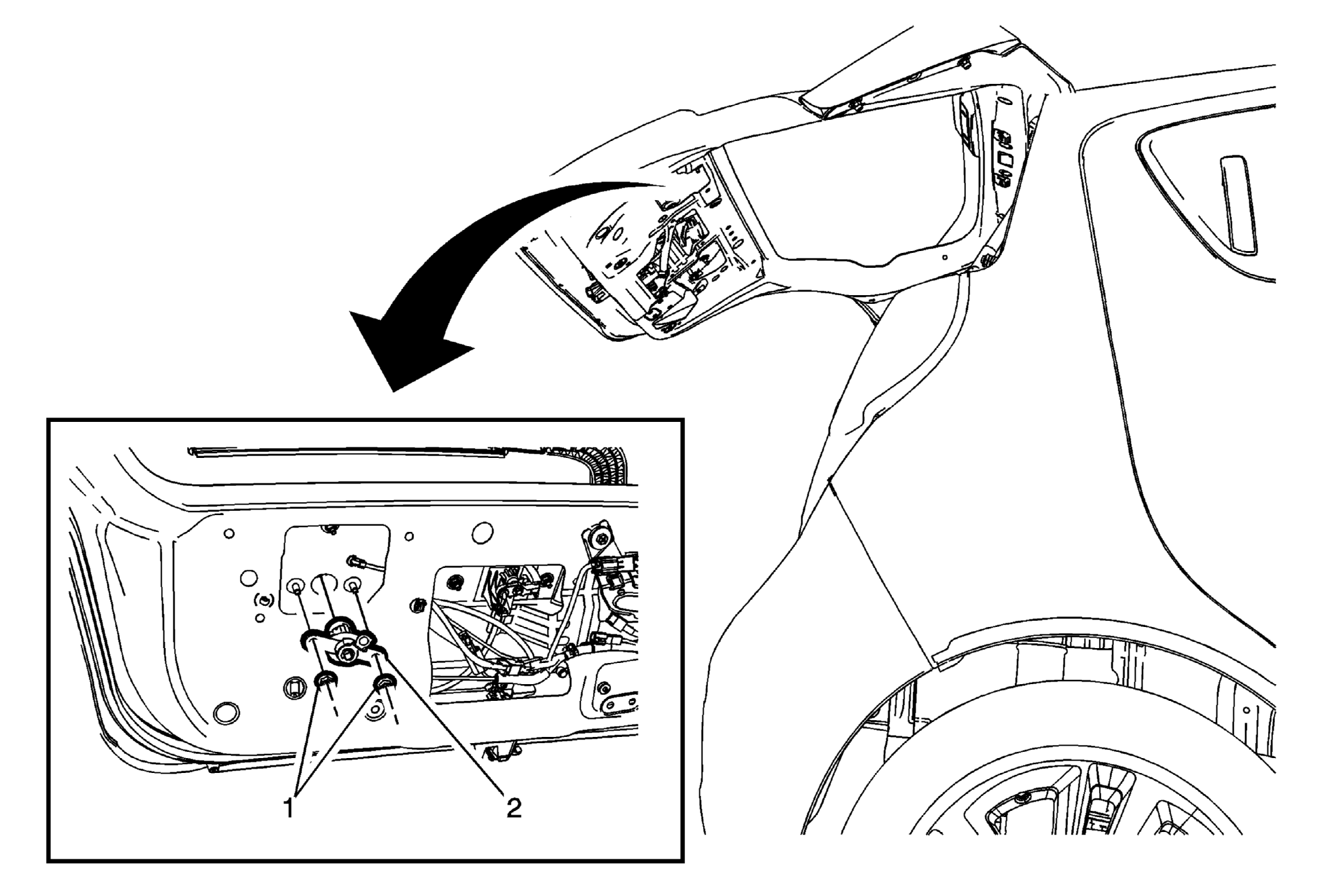

Fig 1: Liftgate Lock Cylinder

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the liftgate trim panel. Refer to Liftgate Trim Finish Panel Replacement . Remove the liftgate lock cylinder rod.
1	Liftgate Lock Cylinder Nut (Qty: 2) CAUTION: Refer to Fastener Caution .
2	Liftgate Lock Cylinder Assembly NOTE: For coding the lock cylinder refer to Rear Compartment Lid Lock Cylinder Coding

Callout

Component Name

Preliminary Procedures

Remove the liftgate trim panel. Refer to Liftgate Trim Finish Panel Replacement .
Remove the liftgate lock cylinder rod.

Liftgate Lock Cylinder Nut (Qty: 2)

CAUTION:

Liftgate Lock Cylinder Assembly

NOTE:
