Front Side Door Outside Handle Rod Replacement

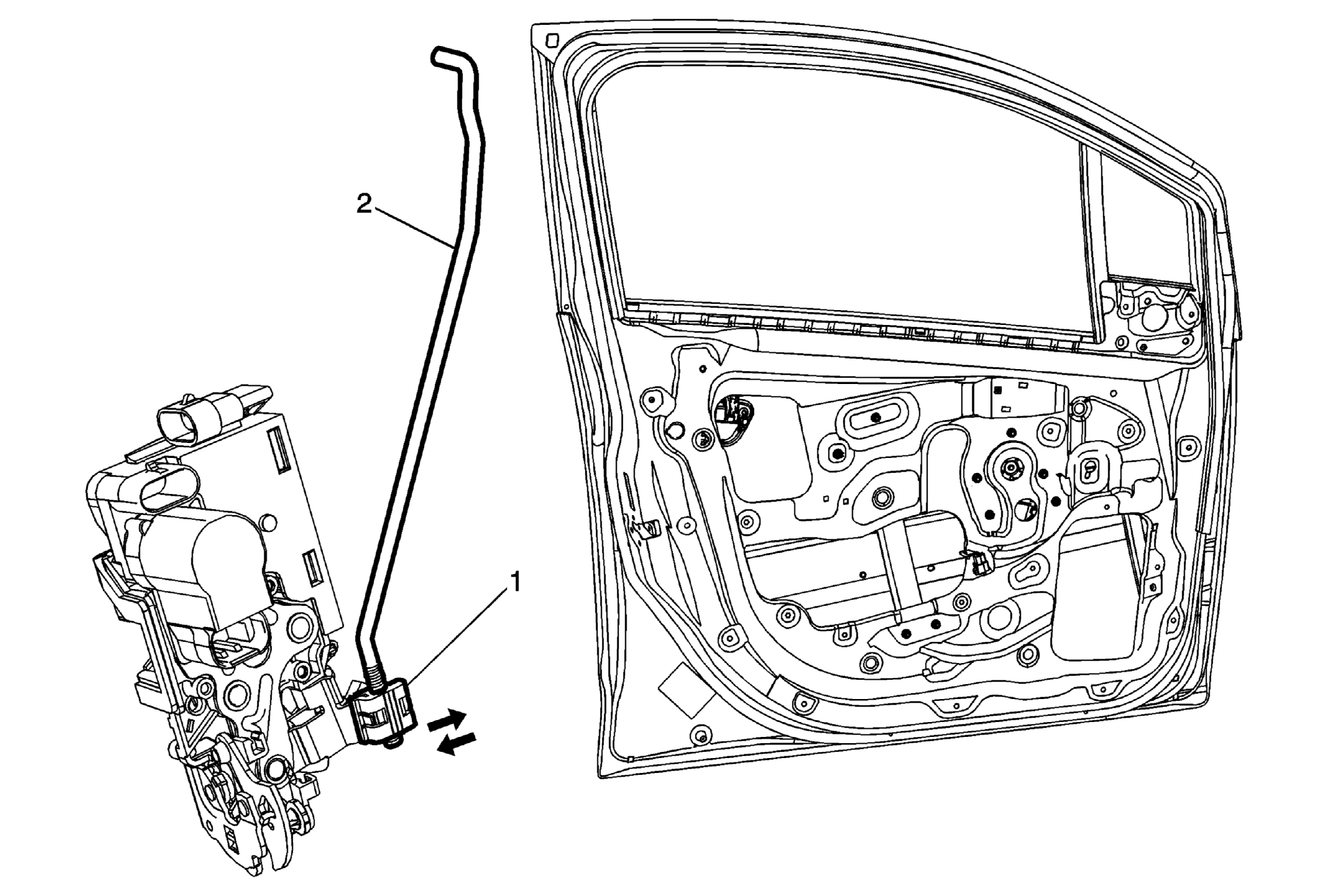

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the front side door lock. Refer to Front Side Door Lock Replacement . |
|
| 1 | Front Side Door Outside Handle Rod Clip Procedure Replace the outside handle rod clip. Refer to Front and Rear Side Door Outside Handle Rod Clip Replacement . |
| 2 | Front Side Door Outside Handle Rod Procedure In order to prevent outside handle lever pre-load, lock, outside handle, handle bracket and cover/cap shall be fully secured to the door prior to securing integral lock clip to outside handle rod. Integral lock clip shall be in the full up position while securing to outside handle rod. Refer to Front Side Door Outside Handle Rod Adjustment .
NOTE:
Inspect the door lock system for proper operation before installing the door trim. |
