Front Side Door Locking Rod Replacement
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the front side door lock. Refer to Front Side Door Lock Replacement . |
|

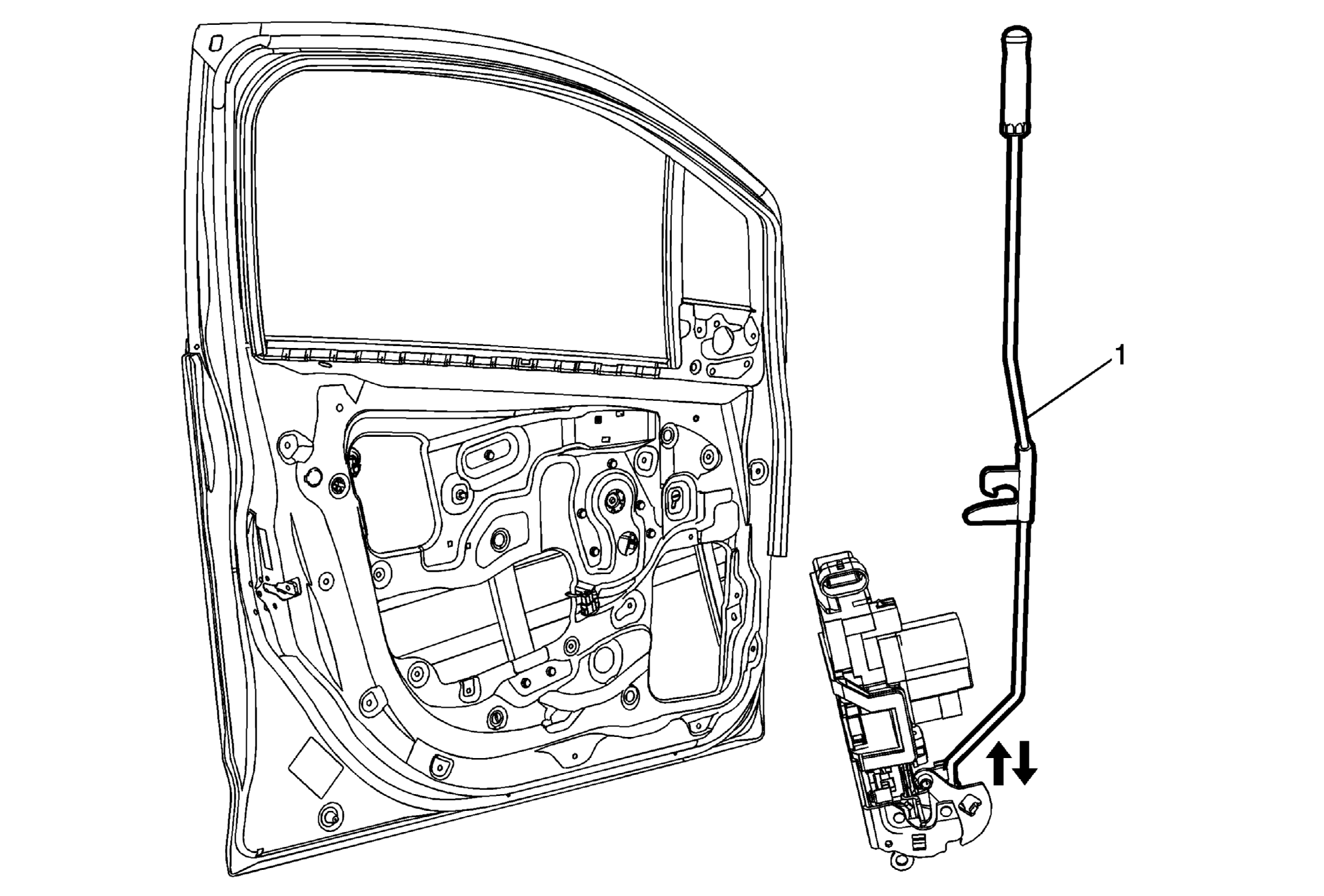

| 1 | Front Side Door Lock Rod Procedure Transfer the lock rod button.
NOTE:
Inspect the door lock system for proper operation before installing the door trim. |
