Front Side Door Inside Handle Rod Replacement

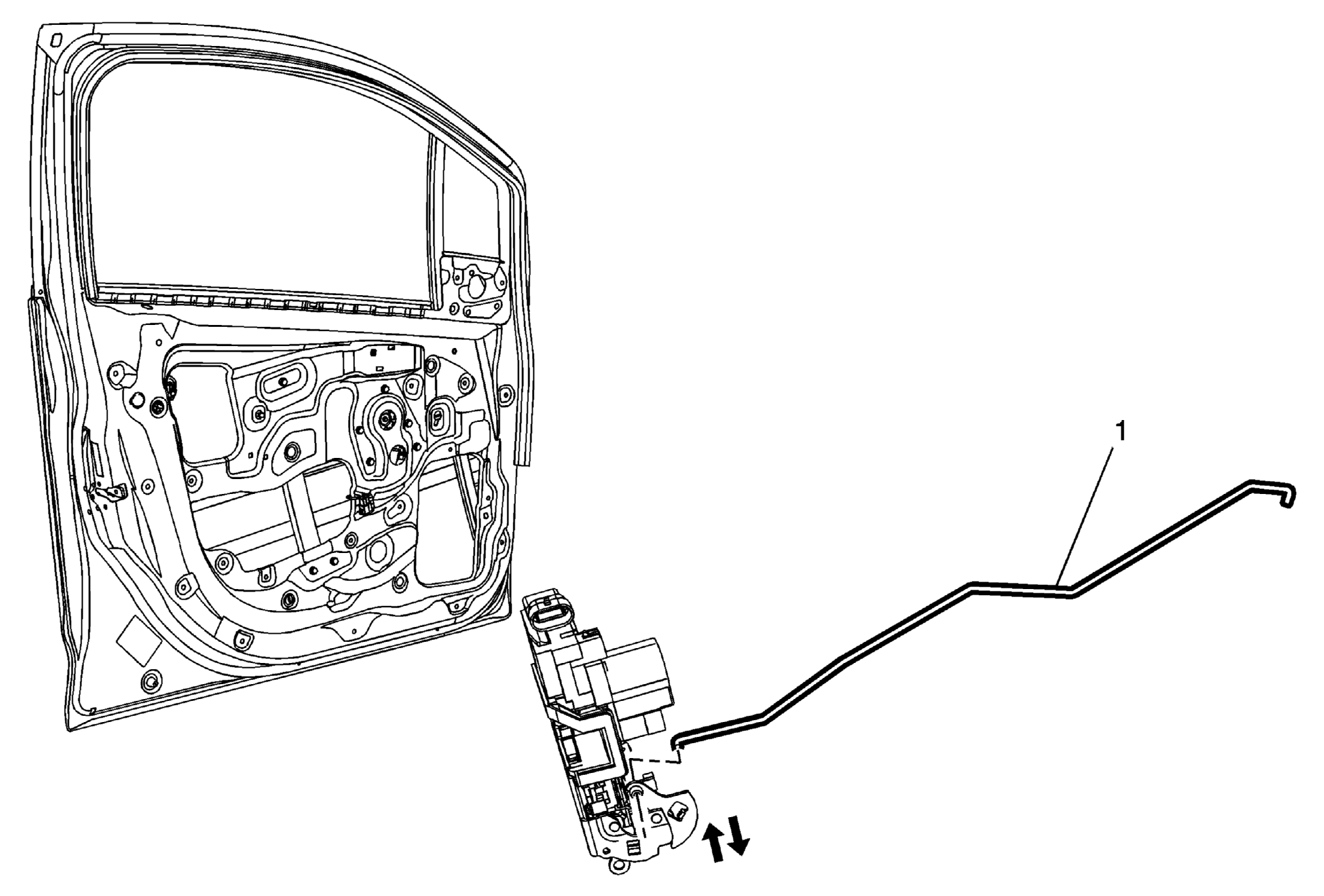

Fig 1: Front Side Door Inside Handle Rod

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front side door lock. Refer to Front Side Door Lock Replacement .
1	Front Side Door Inside Handle Rod NOTE: Inspect the door lock system for proper operation before installing the door trim.
