Door Lock Switch Replacement

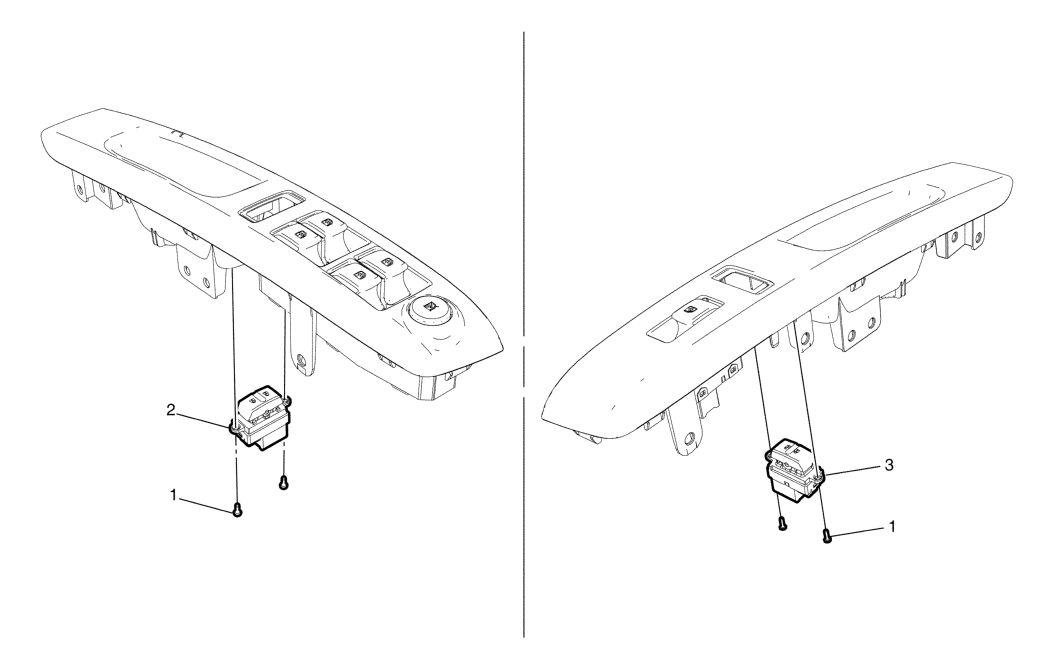

Fig 1: Door Lock Switch
GM2907159Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the front side door armrest switch mount plate from the door trim. Refer to Front Side Door Armrest Switch Mount Plate Replacement .
1 Door Lock Switch Screw
CAUTION:

Refer to Fastener Caution .

2 Door Lock Switch - Driver Side
3 Door Lock Switch - Passenger Side
