Pedestrian Sound Alert Speaker Replacement

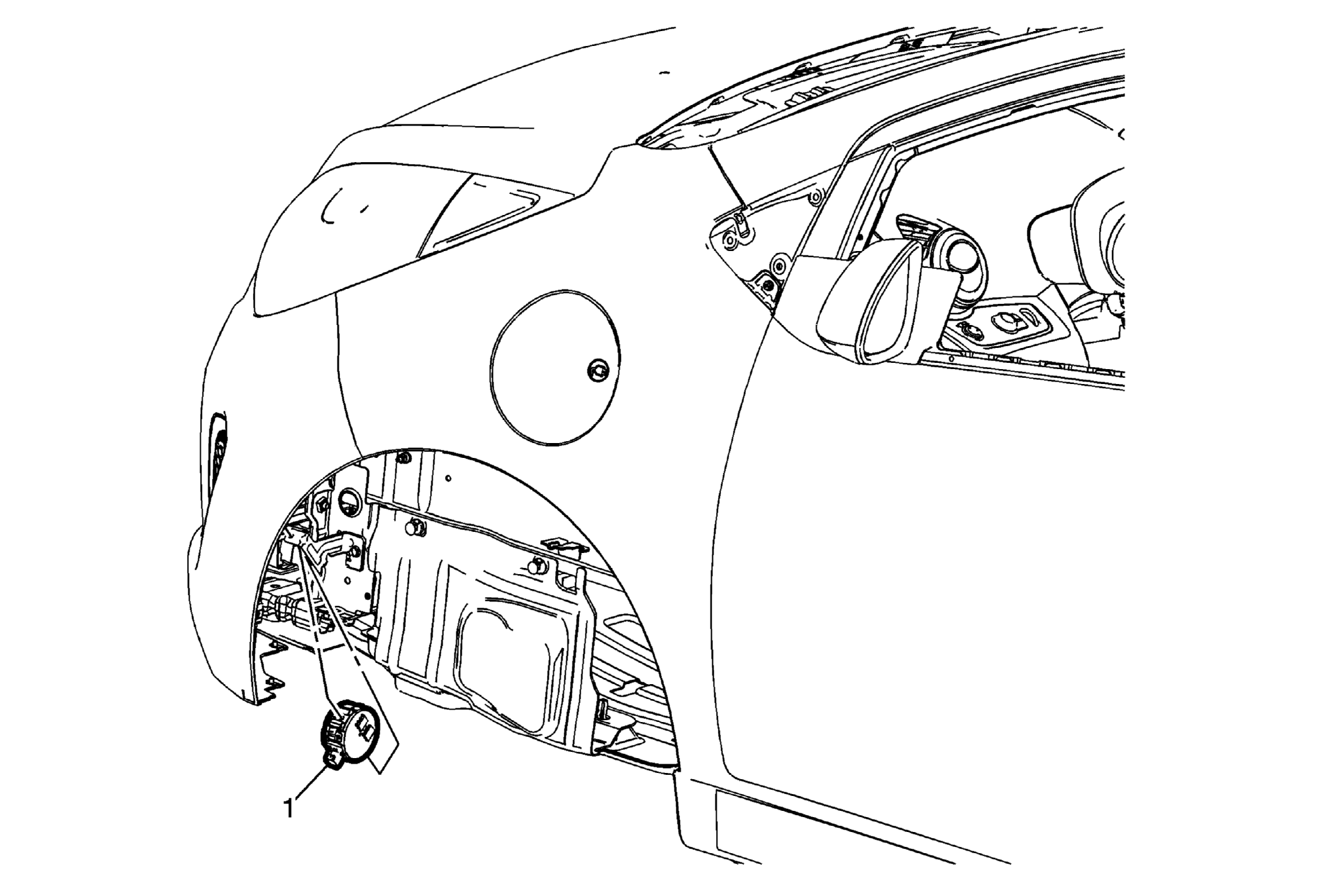

Fig 1: Pedestrian Sound Alert Speaker

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the left front wheel house liner. Refer to Front Wheelhouse Liner Replacement - Left Side .
1	Pedestrian Sound Alert Speaker Procedure Disconnect the electrical connector. Depress tabs on speaker to release from bracket.

Callout

Component Name

Preliminary Procedure
Remove the left front wheel house liner. Refer to Front Wheelhouse Liner Replacement - Left Side .

Pedestrian Sound Alert Speaker

Procedure
