Installation Procedure
- Inspect the seals for cracks, cuts or damage. Replace if necessary.

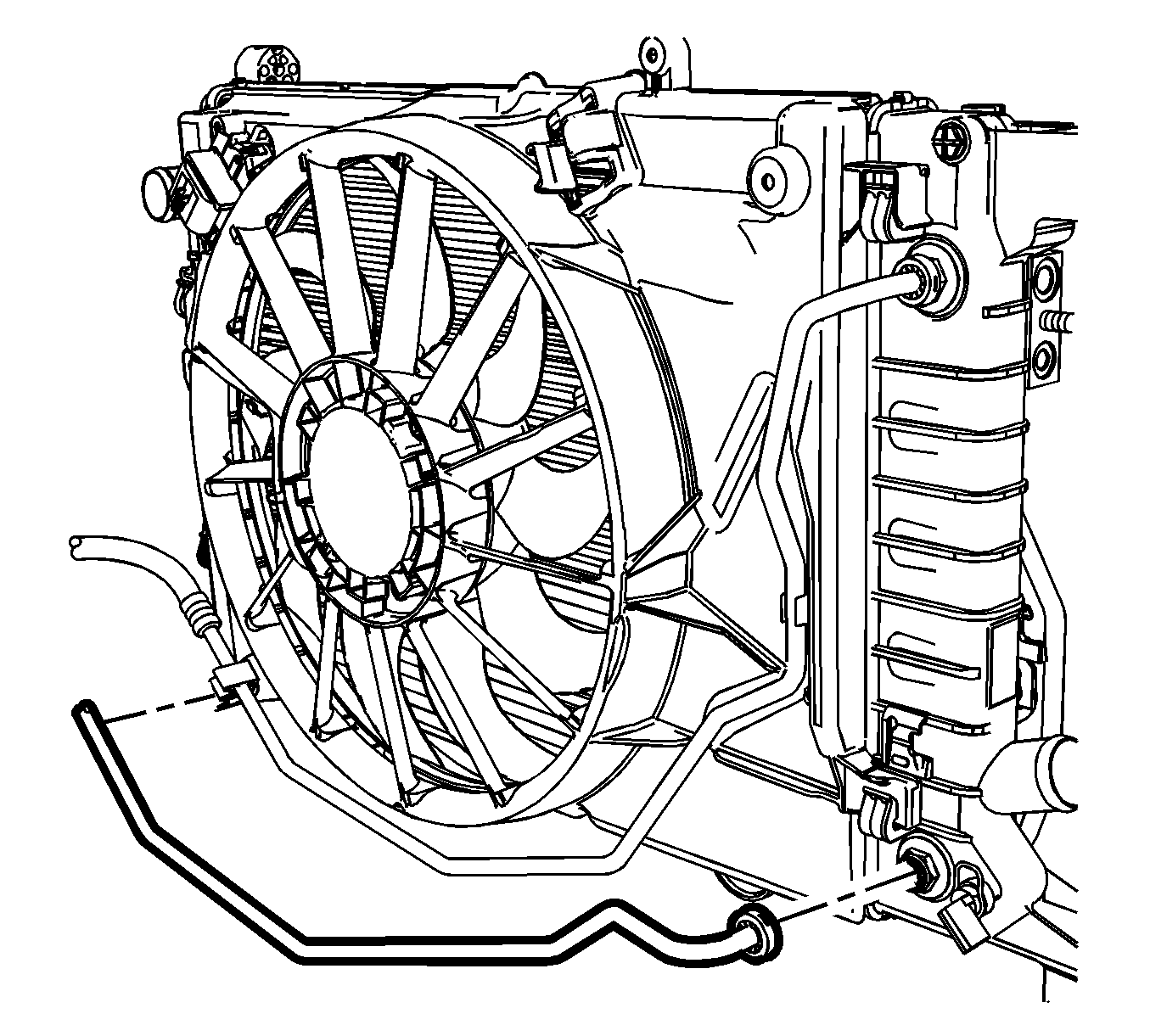

- Install the transmission fluid cooler hose to the radiator. Refer to Transmission Fluid Cooler Hose/Pipe Quick-Connect Fitting Disconnection and Connection .
- Clip the transmission fluid cooler hose to the fan shroud.

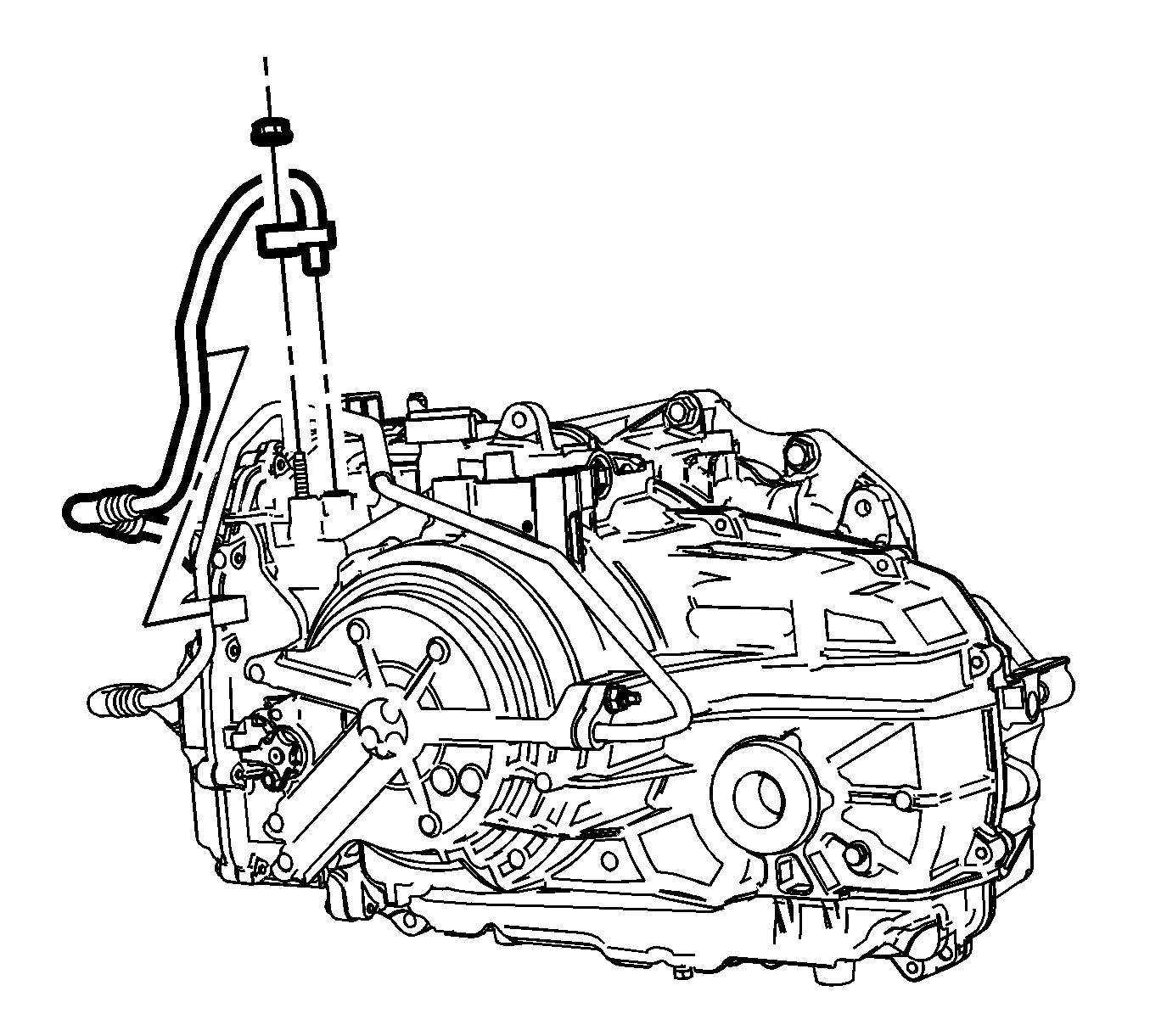

- Install and clip the trans fluid cooler hose to the transmission.
- Install the trans fluid cooler nut and tighten to 22 N.m (16 lb ft).
- Install the front wheelhouse liner inner front extension. Refer to Front Wheelhouse Liner Inner Front Extension Replacement (Left Side)Front Wheelhouse Liner Inner Front Extension Replacement (Right Side, LUV)Front Wheelhouse Liner Inner Front Extension Replacement (Right Side, LWE, LUW) .
- Install the front bumper fascia opening lower cover. Refer to Front Bumper Fascia Opening Lower Cover Replacement .
- Install the battery tray. Refer to Battery Tray Replacement .
- Adjust the transmission fluid level.
- Inspect for fluid leaks.
CAUTION:
Refer to Fastener Caution .
