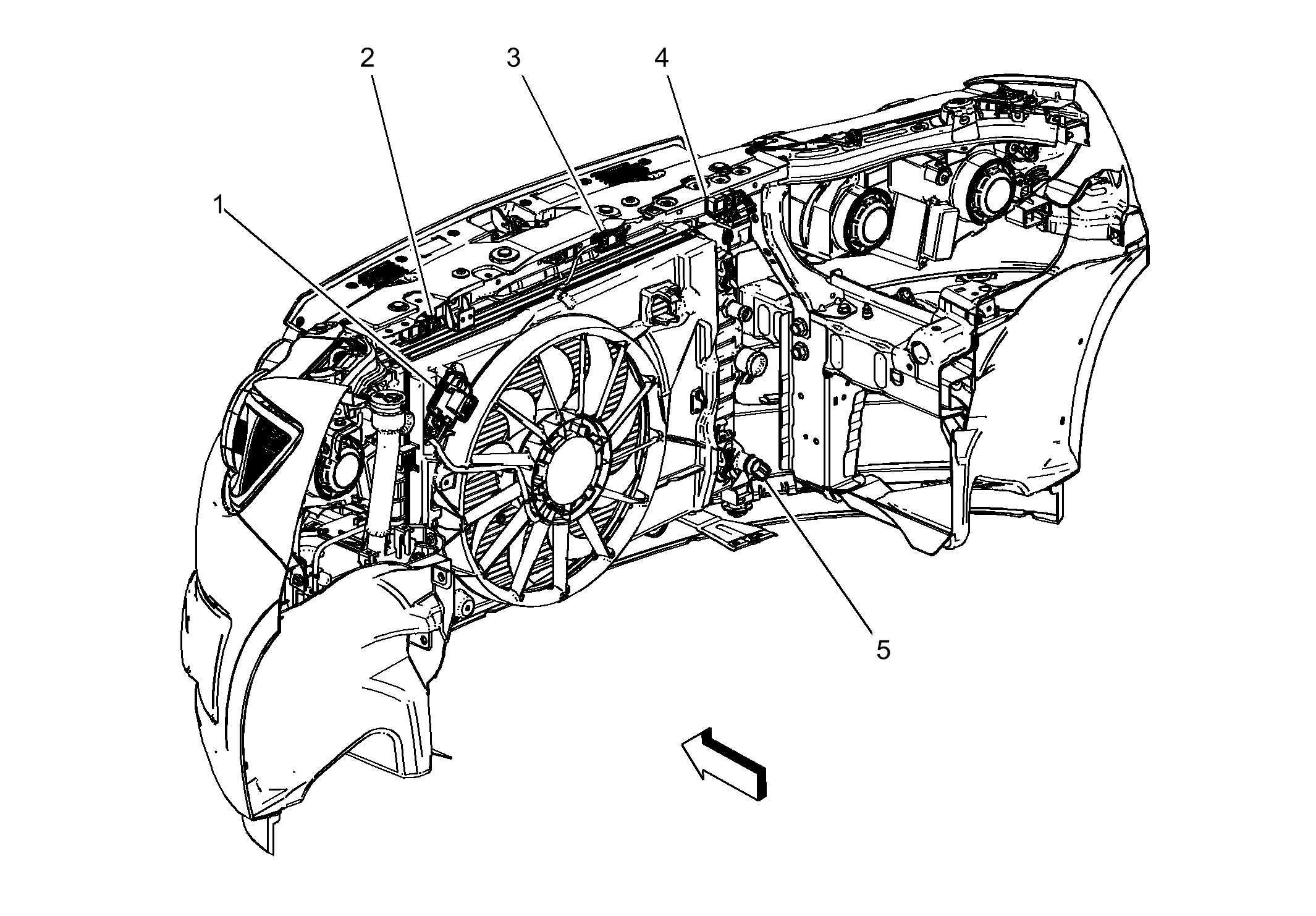

Front of Engine Compartment Components
Front of Engine Compartment Components
| Items |
|---|
| 1: G10 Cooling Fan Motor G10 Cooling Fan Motor (LUV/LUJ/LSF/LDV/LKU/LKV)G10 Cooling Fan Motor (LCU/LWD/LDD/LDC/LDE/LUW/LWE/LFJ/L2N/LED) |
| 2: B59L Front Impact Sensor - Left B59L Front Impact Sensor - Left |
| 3: B55 Hood Ajar Switch (UTJ) B55 Hood Ajar Switch |
| 4: B59R Front Impact Sensor - Right B59R Front Impact Sensor - Right |
| 5: B34B Engine Coolant Temperature Sensor 2 B34B Engine Coolant Temperature Sensor 2 |
