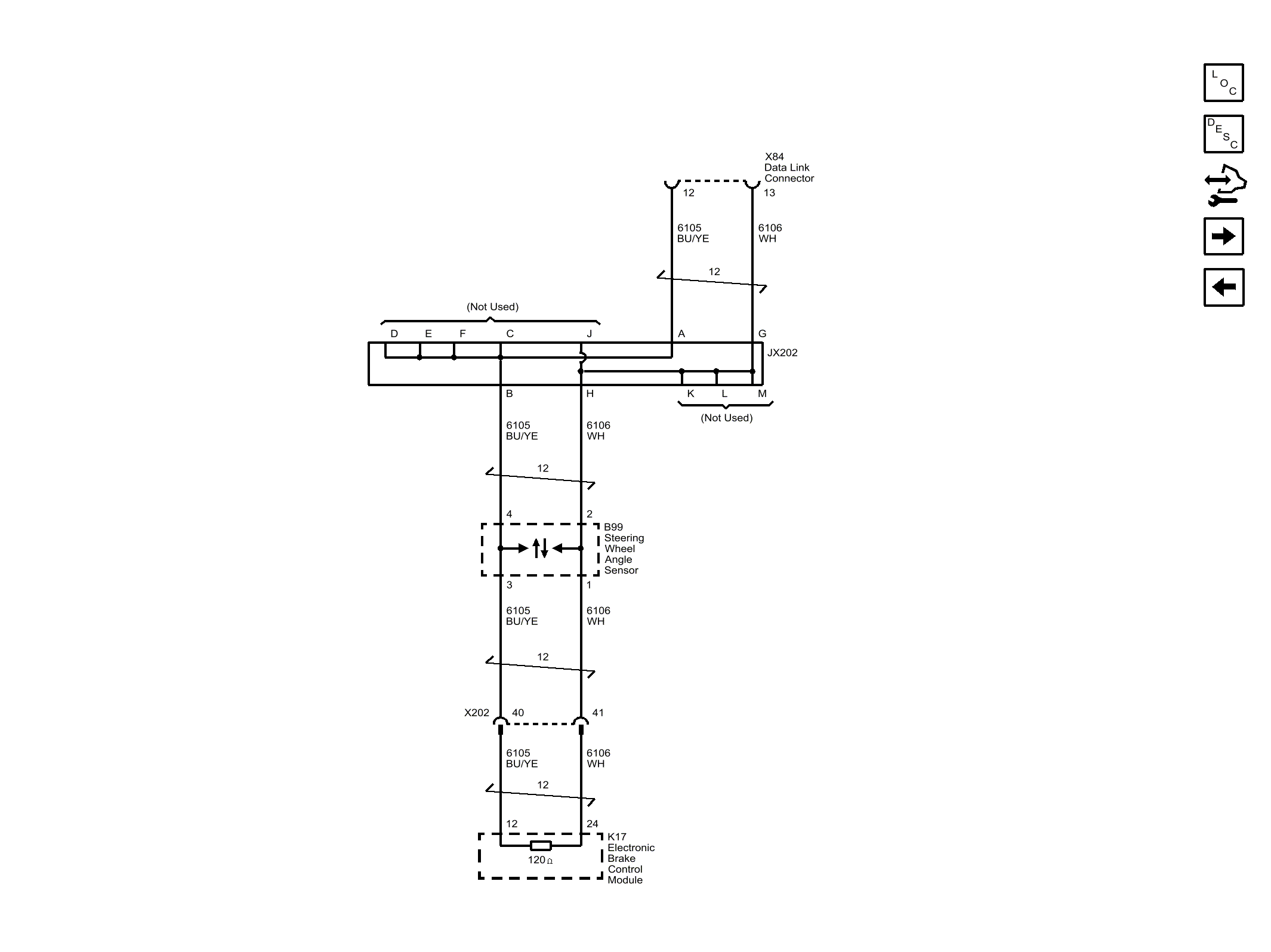

Home >> Chevrolet >> 2016 >> Sonic RS, 4D Hatchback, Automatic Trans >> Repair and Diagnosis >> Engine Performance >> System >> Data Communication System >> Schematic Wiring Diagrams >> Data Communication Wiring Schematics >> High Speed GMLAN Bus 2
