Installation Procedure

  1. Install the exhaust intermediate pipe and muffler assembly from the vehicle.

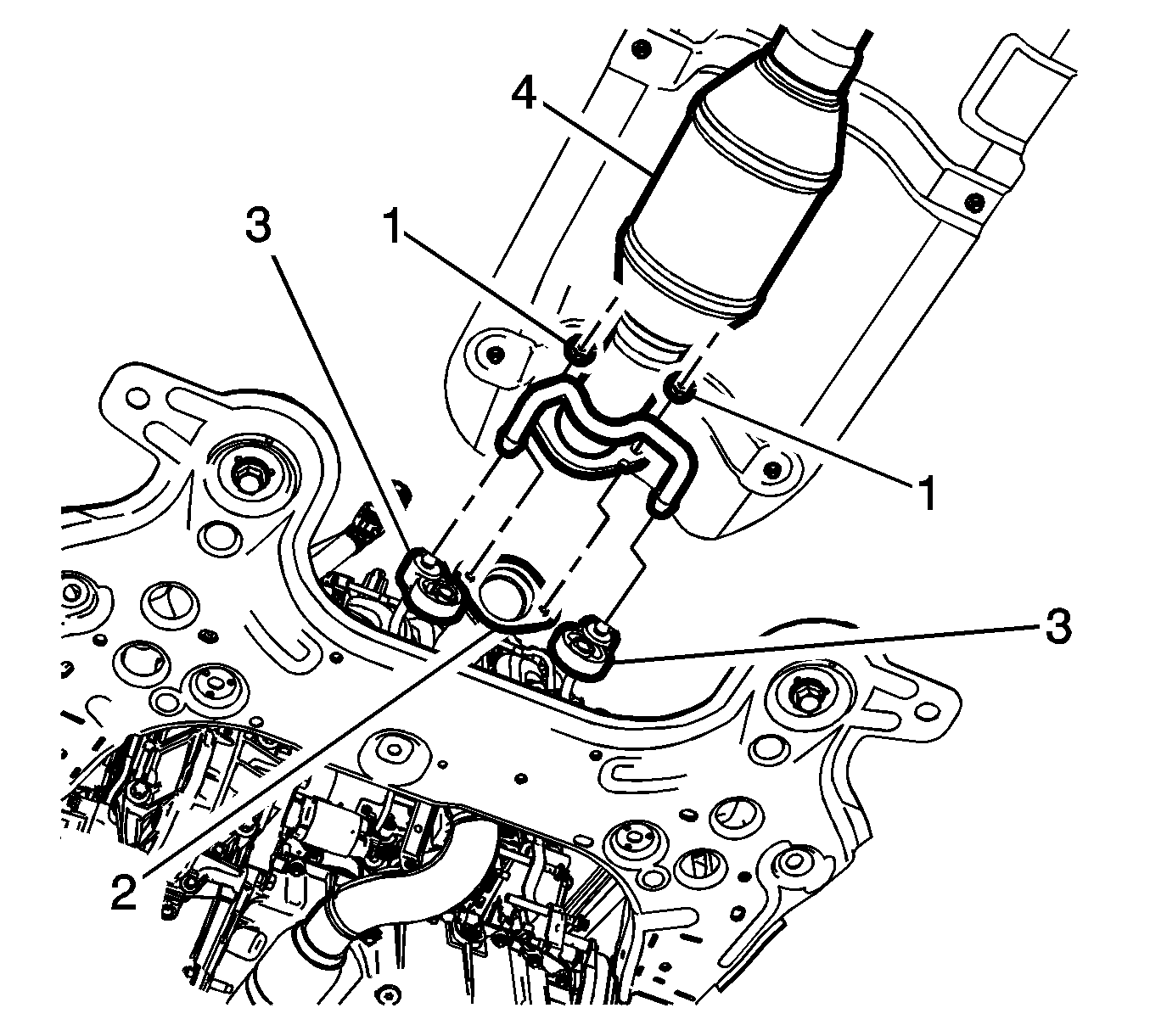

    2. Fig 1: 3-Way Catalytic Converter & Exhaust Gasket
    GM2678269Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  2. Install the 3-way catalytic converter (4) into the exhaust Isolators (3) with a NEW gasket (2) and tighten the fasteners (1) to 17 N.m (13 lb ft).

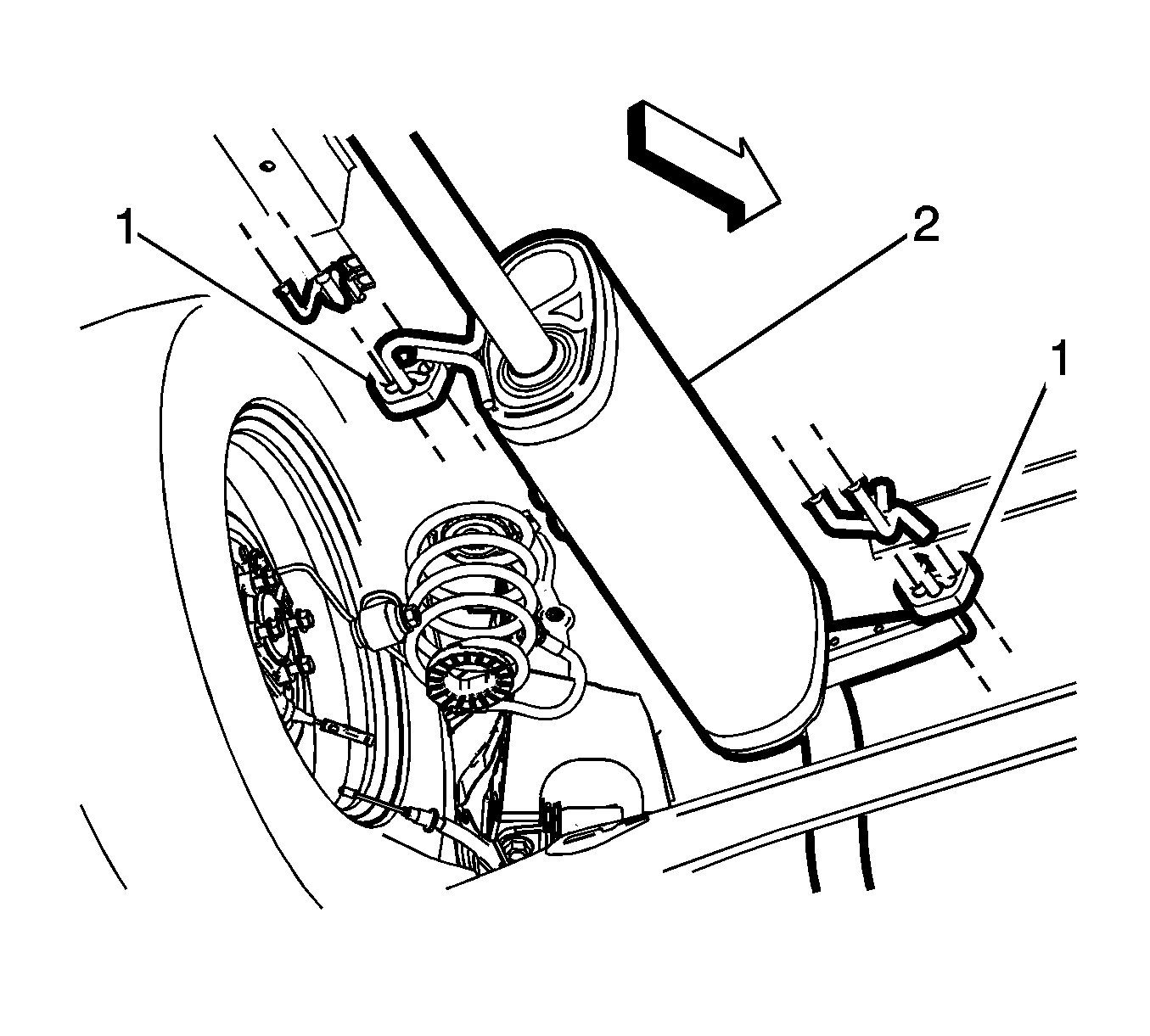

    3. Fig 2: Rear Exhaust Muffler & Isolators
    GM2494571Courtesy of GENERAL MOTORS COMPANY
  3. Install the exhaust rear muffler (2) into the exhaust isolators (1).
  4. Install the rear axle. Refer to Rear Axle Replacement .
  5. Lower the vehicle.
  6. Start the engine and check for exhaust leaks.
